vtkEllipsoidTensorProbeRepresentation Class Reference

#include <vtkEllipsoidTensorProbeRepresentation.h>

Inheritance diagram for vtkEllipsoidTensorProbeRepresentation:

[legend]

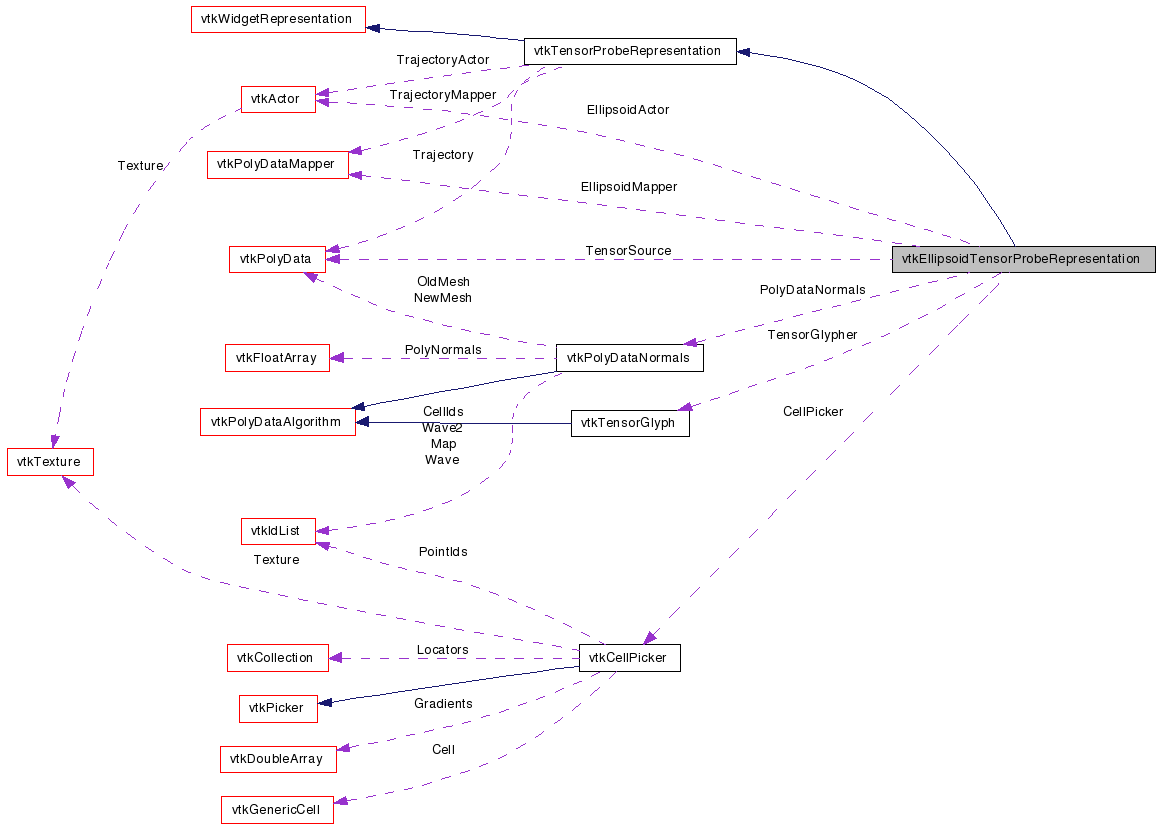

Collaboration diagram for vtkEllipsoidTensorProbeRepresentation:

[legend]

List of all members.

---

Detailed Description

A concrete implementation of vtkTensorProbeRepresentation that renders tensors as ellipoids.

vtkEllipsoidTensorProbeRepresentation is a concrete implementation of vtkTensorProbeRepresentation. It renders tensors as ellipsoids. Locations between two points when probed have the tensors linearly interpolated from the neighboring locations on the polyline.

See also:

vtkTensorProbeWidget

Definition at line 36 of file vtkEllipsoidTensorProbeRepresentation.h.

typedef vtkTensorProbeRepresentation	Superclass
static int	IsTypeOf (const char *type)
static vtkEllipsoidTensorProbeRepresentation *	SafeDownCast (vtkObject *o)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Public Member Functions
virtual void	BuildRepresentation ()
virtual int	RenderOpaqueGeometry (vtkViewport *)
virtual int	SelectProbe (int pos[2])
virtual void	GetActors (vtkPropCollection *)
virtual void	ReleaseGraphicsResources (vtkWindow *)
Static Public Member Functions
static vtkEllipsoidTensorProbeRepresentation *	New ()
Protected Member Functions
	vtkEllipsoidTensorProbeRepresentation ()
	~vtkEllipsoidTensorProbeRepresentation ()
void	EvaluateTensor (double t[9])
Protected Attributes
vtkActor *	EllipsoidActor
vtkPolyDataMapper *	EllipsoidMapper
vtkPolyData *	TensorSource
vtkTensorGlyph *	TensorGlypher
vtkCellPicker *	CellPicker
vtkPolyDataNormals *	PolyDataNormals

---

Member Typedef Documentation

typedef vtkTensorProbeRepresentation vtkEllipsoidTensorProbeRepresentation::Superclass

Standard methods for instances of this class.

Reimplemented from vtkTensorProbeRepresentation.

Definition at line 45 of file vtkEllipsoidTensorProbeRepresentation.h.

---

Constructor & Destructor Documentation

vtkEllipsoidTensorProbeRepresentation::vtkEllipsoidTensorProbeRepresentation

(

)

[protected]

vtkEllipsoidTensorProbeRepresentation::~vtkEllipsoidTensorProbeRepresentation

(

)

[protected]

---

Member Function Documentation

static vtkEllipsoidTensorProbeRepresentation* vtkEllipsoidTensorProbeRepresentation::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkEllipsoidTensorProbeRepresentation::GetClassName

(

)

[virtual]

Standard methods for instances of this class.

Reimplemented from vtkTensorProbeRepresentation.

static int vtkEllipsoidTensorProbeRepresentation::IsTypeOf

(

const char *

type

)

[static]

Standard methods for instances of this class.

Reimplemented from vtkTensorProbeRepresentation.

virtual int vtkEllipsoidTensorProbeRepresentation::IsA

(

const char *

type

)

[virtual]

Standard methods for instances of this class.

Reimplemented from vtkTensorProbeRepresentation.

static vtkEllipsoidTensorProbeRepresentation* vtkEllipsoidTensorProbeRepresentation::SafeDownCast

(

vtkObject *

o

)

[static]

Standard methods for instances of this class.

Reimplemented from vtkTensorProbeRepresentation.

void vtkEllipsoidTensorProbeRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Standard methods for instances of this class.

Reimplemented from vtkTensorProbeRepresentation.

virtual void vtkEllipsoidTensorProbeRepresentation::BuildRepresentation

(

)

[virtual]

See vtkWidgetRepresentation for details.

Reimplemented from vtkTensorProbeRepresentation.

virtual int vtkEllipsoidTensorProbeRepresentation::RenderOpaqueGeometry

(

vtkViewport *

)

[virtual]

See vtkWidgetRepresentation for details.

Reimplemented from vtkTensorProbeRepresentation.

virtual int vtkEllipsoidTensorProbeRepresentation::SelectProbe

(

int

pos[2]

)

[virtual]

Can we pick the tensor glyph at the current cursor pos

Implements vtkTensorProbeRepresentation.

virtual void vtkEllipsoidTensorProbeRepresentation::GetActors

(

vtkPropCollection *

)

[virtual]

See vtkProp for details.

Reimplemented from vtkTensorProbeRepresentation.

virtual void vtkEllipsoidTensorProbeRepresentation::ReleaseGraphicsResources

(

vtkWindow *

)

[virtual]

See vtkProp for details.

Reimplemented from vtkTensorProbeRepresentation.

void vtkEllipsoidTensorProbeRepresentation::EvaluateTensor

(

double

t[9]

)

[protected]

---

Member Data Documentation

vtkActor* vtkEllipsoidTensorProbeRepresentation::EllipsoidActor [protected]

Definition at line 68 of file vtkEllipsoidTensorProbeRepresentation.h.

vtkPolyDataMapper* vtkEllipsoidTensorProbeRepresentation::EllipsoidMapper [protected]

Definition at line 69 of file vtkEllipsoidTensorProbeRepresentation.h.

vtkPolyData* vtkEllipsoidTensorProbeRepresentation::TensorSource [protected]

Definition at line 70 of file vtkEllipsoidTensorProbeRepresentation.h.

vtkTensorGlyph* vtkEllipsoidTensorProbeRepresentation::TensorGlypher [protected]

Definition at line 71 of file vtkEllipsoidTensorProbeRepresentation.h.

vtkCellPicker* vtkEllipsoidTensorProbeRepresentation::CellPicker [protected]

Definition at line 72 of file vtkEllipsoidTensorProbeRepresentation.h.

vtkPolyDataNormals* vtkEllipsoidTensorProbeRepresentation::PolyDataNormals [protected]

Definition at line 73 of file vtkEllipsoidTensorProbeRepresentation.h.

---

The documentation for this class was generated from the following file:

• dox/Widgets/vtkEllipsoidTensorProbeRepresentation.h
