vtkTensorProbeRepresentation Class Reference

#include <vtkTensorProbeRepresentation.h>

Inheritance diagram for vtkTensorProbeRepresentation:

Inheritance graph
[legend]

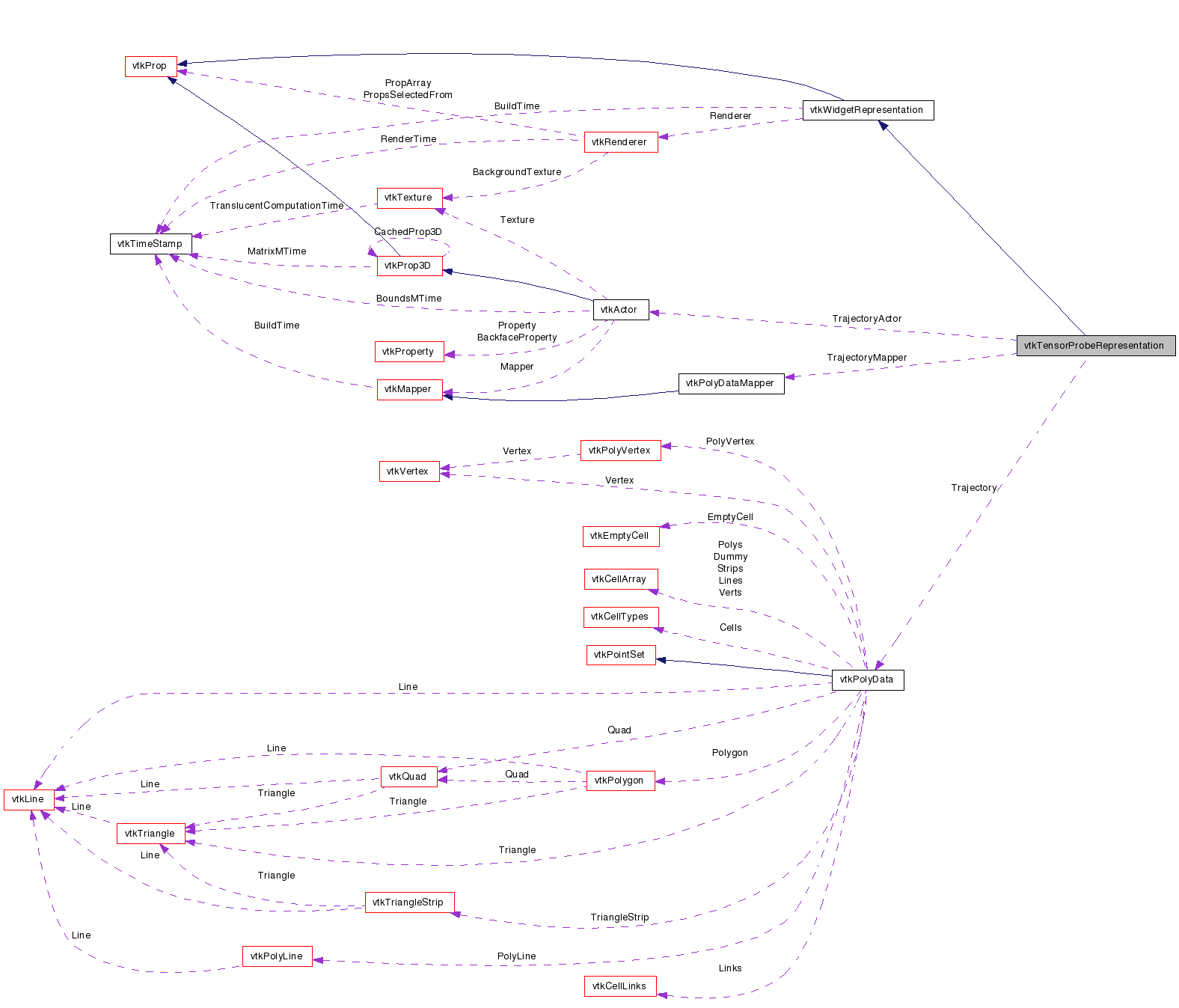

Collaboration diagram for vtkTensorProbeRepresentation:

Collaboration graph
[legend]

List of all members.


Detailed Description

Abstract class that serves as a representation for vtkTensorProbeWidget.

The class serves as an abstract geometrical representation for the vtkTensorProbeWidget. It is left to the concrete implementation to render the tensors as it desires. For instance, vtkEllipsoidTensorProbeRepresentation renders the tensors as ellipsoids.

See also:
vtkTensorProbeWidget
Tests:
vtkTensorProbeRepresentation (Tests)

Definition at line 40 of file vtkTensorProbeRepresentation.h.

typedef vtkWidgetRepresentation Superclass
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
static int IsTypeOf (const char *type)
static
vtkTensorProbeRepresentation
SafeDownCast (vtkObject *o)

Public Member Functions

virtual void SetTrajectory (vtkPolyData *)
void Initialize ()
virtual int SelectProbe (int pos[2])=0
virtual int Move (double motionVector[2])
virtual void BuildRepresentation ()
virtual int RenderOpaqueGeometry (vtkViewport *)
virtual void SetProbePosition (double, double, double)
virtual void SetProbePosition (double[3])
virtual double * GetProbePosition ()
virtual void GetProbePosition (double &, double &, double &)
virtual void GetProbePosition (double[3])
virtual void SetProbeCellId (vtkIdType)
virtual vtkIdType GetProbeCellId ()
virtual void GetActors (vtkPropCollection *)
virtual void ReleaseGraphicsResources (vtkWindow *)

Protected Member Functions

 vtkTensorProbeRepresentation ()
 ~vtkTensorProbeRepresentation ()
void FindClosestPointOnPolyline (double displayPos[2], double closestWorldPos[3], vtkIdType &cellId, int maxSpeed=10)

Protected Attributes

vtkActorTrajectoryActor
vtkPolyDataMapperTrajectoryMapper
vtkPolyDataTrajectory
double ProbePosition [3]
vtkIdType ProbeCellId

Member Typedef Documentation

Standard methods for instances of this class.

Reimplemented from vtkWidgetRepresentation.

Reimplemented in vtkEllipsoidTensorProbeRepresentation.

Definition at line 46 of file vtkTensorProbeRepresentation.h.


Constructor & Destructor Documentation

vtkTensorProbeRepresentation::vtkTensorProbeRepresentation (  )  [protected]

vtkTensorProbeRepresentation::~vtkTensorProbeRepresentation (  )  [protected]


Member Function Documentation

virtual const char* vtkTensorProbeRepresentation::GetClassName (  )  [virtual]

Standard methods for instances of this class.

Reimplemented from vtkWidgetRepresentation.

Reimplemented in vtkEllipsoidTensorProbeRepresentation.

static int vtkTensorProbeRepresentation::IsTypeOf ( const char *  type  )  [static]

Standard methods for instances of this class.

Reimplemented from vtkWidgetRepresentation.

Reimplemented in vtkEllipsoidTensorProbeRepresentation.

virtual int vtkTensorProbeRepresentation::IsA ( const char *  type  )  [virtual]

Standard methods for instances of this class.

Reimplemented from vtkWidgetRepresentation.

Reimplemented in vtkEllipsoidTensorProbeRepresentation.

static vtkTensorProbeRepresentation* vtkTensorProbeRepresentation::SafeDownCast ( vtkObject o  )  [static]

Standard methods for instances of this class.

Reimplemented from vtkWidgetRepresentation.

Reimplemented in vtkEllipsoidTensorProbeRepresentation.

void vtkTensorProbeRepresentation::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard methods for instances of this class.

Reimplemented from vtkWidgetRepresentation.

Reimplemented in vtkEllipsoidTensorProbeRepresentation.

virtual void vtkTensorProbeRepresentation::BuildRepresentation (  )  [virtual]

virtual int vtkTensorProbeRepresentation::RenderOpaqueGeometry ( vtkViewport  )  [virtual]

See vtkWidgetRepresentation for details.

Reimplemented from vtkProp.

Reimplemented in vtkEllipsoidTensorProbeRepresentation.

virtual void vtkTensorProbeRepresentation::SetProbePosition ( double  ,
double  ,
double
) [virtual]

Set the position of the Tensor probe.

virtual void vtkTensorProbeRepresentation::SetProbePosition ( double  [3]  )  [virtual]

Set the position of the Tensor probe.

virtual double* vtkTensorProbeRepresentation::GetProbePosition (  )  [virtual]

Set the position of the Tensor probe.

virtual void vtkTensorProbeRepresentation::GetProbePosition ( double &  ,
double &  ,
double &
) [virtual]

Set the position of the Tensor probe.

virtual void vtkTensorProbeRepresentation::GetProbePosition ( double  [3]  )  [virtual]

Set the position of the Tensor probe.

virtual void vtkTensorProbeRepresentation::SetProbeCellId ( vtkIdType   )  [virtual]

Set the position of the Tensor probe.

virtual vtkIdType vtkTensorProbeRepresentation::GetProbeCellId (  )  [virtual]

Set the position of the Tensor probe.

virtual void vtkTensorProbeRepresentation::SetTrajectory ( vtkPolyData  )  [virtual]

Set the trajectory that we are trying to probe tensors on

void vtkTensorProbeRepresentation::Initialize (  )

Set the probe position to a reasonable location on the trajectory.

virtual int vtkTensorProbeRepresentation::SelectProbe ( int  pos[2]  )  [pure virtual]

This method is invoked by the widget during user interaction. Can we pick the tensor glyph at the current cursor pos

Implemented in vtkEllipsoidTensorProbeRepresentation.

virtual int vtkTensorProbeRepresentation::Move ( double  motionVector[2]  )  [virtual]

INTERNAL - Do not use This method is invoked by the widget during user interaction. Move probe based on the position and the motion vector.

virtual void vtkTensorProbeRepresentation::GetActors ( vtkPropCollection  )  [virtual]

See vtkProp for details.

Reimplemented from vtkWidgetRepresentation.

Reimplemented in vtkEllipsoidTensorProbeRepresentation.

virtual void vtkTensorProbeRepresentation::ReleaseGraphicsResources ( vtkWindow  )  [virtual]

See vtkProp for details.

Reimplemented from vtkWidgetRepresentation.

Reimplemented in vtkEllipsoidTensorProbeRepresentation.

void vtkTensorProbeRepresentation::FindClosestPointOnPolyline ( double  displayPos[2],
double  closestWorldPos[3],
vtkIdType cellId,
int  maxSpeed = 10
) [protected]


Member Data Documentation

Definition at line 93 of file vtkTensorProbeRepresentation.h.

Definition at line 94 of file vtkTensorProbeRepresentation.h.

Definition at line 95 of file vtkTensorProbeRepresentation.h.

Definition at line 96 of file vtkTensorProbeRepresentation.h.

Definition at line 97 of file vtkTensorProbeRepresentation.h.
