vtkHomogeneousTransform Class Reference

#include <vtkHomogeneousTransform.h>

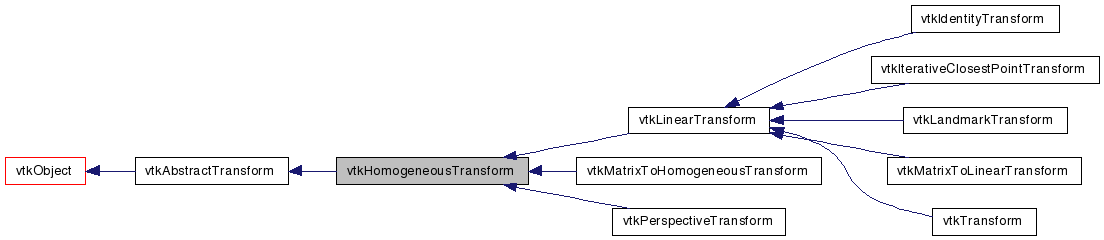

Inheritance diagram for vtkHomogeneousTransform:

Inheritance graph
[legend]

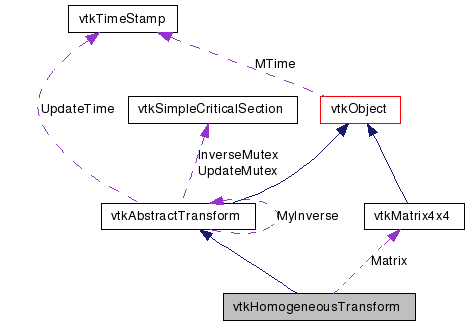

Collaboration diagram for vtkHomogeneousTransform:

Collaboration graph
[legend]

List of all members.


Detailed Description

superclass for homogeneous transformations

vtkHomogeneousTransform provides a generic interface for homogeneous transformations, i.e. transformations which can be represented by multiplying a 4x4 matrix with a homogeneous coordinate.

See also:
vtkPerspectiveTransform vtkLinearTransform vtkIdentityTransform

Definition at line 32 of file vtkHomogeneousTransform.h.


Public Types

typedef vtkAbstractTransform Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void TransformPoints (vtkPoints *inPts, vtkPoints *outPts)
void GetMatrix (vtkMatrix4x4 *m)
vtkMatrix4x4GetMatrix ()
virtual void TransformPointsNormalsVectors (vtkPoints *inPts, vtkPoints *outPts, vtkDataArray *inNms, vtkDataArray *outNms, vtkDataArray *inVrs, vtkDataArray *outVrs)
vtkHomogeneousTransformGetHomogeneousInverse ()
void InternalTransformPoint (const float in[3], float out[3])
void InternalTransformPoint (const double in[3], double out[3])
void InternalTransformDerivative (const float in[3], float out[3], float derivative[3][3])
void InternalTransformDerivative (const double in[3], double out[3], double derivative[3][3])

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkHomogeneousTransformSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkHomogeneousTransform ()
 ~vtkHomogeneousTransform ()
void InternalDeepCopy (vtkAbstractTransform *transform)

Protected Attributes

vtkMatrix4x4Matrix

Member Typedef Documentation


Constructor & Destructor Documentation

vtkHomogeneousTransform::vtkHomogeneousTransform (  )  [protected]

vtkHomogeneousTransform::~vtkHomogeneousTransform (  )  [protected]


Member Function Documentation

virtual const char* vtkHomogeneousTransform::GetClassName (  )  [virtual]

static int vtkHomogeneousTransform::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractTransform.

Reimplemented in vtkIdentityTransform, vtkLinearTransform, vtkMatrixToHomogeneousTransform, vtkMatrixToLinearTransform, vtkPerspectiveTransform, vtkTransform, vtkIterativeClosestPointTransform, and vtkLandmarkTransform.

virtual int vtkHomogeneousTransform::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractTransform.

Reimplemented in vtkIdentityTransform, vtkLinearTransform, vtkMatrixToHomogeneousTransform, vtkMatrixToLinearTransform, vtkPerspectiveTransform, vtkTransform, vtkIterativeClosestPointTransform, and vtkLandmarkTransform.

static vtkHomogeneousTransform* vtkHomogeneousTransform::SafeDownCast ( vtkObject o  )  [static]

void vtkHomogeneousTransform::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAbstractTransform.

Reimplemented in vtkIdentityTransform, vtkLinearTransform, vtkMatrixToHomogeneousTransform, vtkMatrixToLinearTransform, vtkPerspectiveTransform, vtkTransform, vtkIterativeClosestPointTransform, and vtkLandmarkTransform.

void vtkHomogeneousTransform::TransformPoints ( vtkPoints inPts,
vtkPoints outPts
) [virtual]

Apply the transformation to a series of points, and append the results to outPts.

Reimplemented from vtkAbstractTransform.

Reimplemented in vtkIdentityTransform, and vtkLinearTransform.

virtual void vtkHomogeneousTransform::TransformPointsNormalsVectors ( vtkPoints inPts,
vtkPoints outPts,
vtkDataArray inNms,
vtkDataArray outNms,
vtkDataArray inVrs,
vtkDataArray outVrs
) [virtual]

Apply the transformation to a combination of points, normals and vectors.

Reimplemented from vtkAbstractTransform.

Reimplemented in vtkIdentityTransform, and vtkLinearTransform.

void vtkHomogeneousTransform::GetMatrix ( vtkMatrix4x4 m  )

Get a copy of the internal transformation matrix. The transform is Updated first, to guarantee that the matrix is valid.

vtkMatrix4x4* vtkHomogeneousTransform::GetMatrix (  )  [inline]

Get a pointer to an internal vtkMatrix4x4 that represents the transformation. An Update() is called on the transform to ensure that the matrix is up-to-date when you get it. You should not store the matrix pointer anywhere because it might become stale.

Definition at line 62 of file vtkHomogeneousTransform.h.

vtkHomogeneousTransform* vtkHomogeneousTransform::GetHomogeneousInverse (  )  [inline]

Just like GetInverse(), but includes typecast to vtkHomogeneousTransform.

Definition at line 67 of file vtkHomogeneousTransform.h.

void vtkHomogeneousTransform::InternalTransformPoint ( const float  in[3],
float  out[3]
) [virtual]

This will calculate the transformation without calling Update. Meant for use only within other VTK classes.

Implements vtkAbstractTransform.

Reimplemented in vtkIdentityTransform, and vtkLinearTransform.

void vtkHomogeneousTransform::InternalTransformPoint ( const double  in[3],
double  out[3]
) [virtual]

This will calculate the transformation without calling Update. Meant for use only within other VTK classes.

Implements vtkAbstractTransform.

Reimplemented in vtkIdentityTransform, and vtkLinearTransform.

void vtkHomogeneousTransform::InternalTransformDerivative ( const float  in[3],
float  out[3],
float  derivative[3][3]
) [virtual]

This will calculate the transformation as well as its derivative without calling Update. Meant for use only within other VTK classes.

Implements vtkAbstractTransform.

Reimplemented in vtkIdentityTransform, and vtkLinearTransform.

void vtkHomogeneousTransform::InternalTransformDerivative ( const double  in[3],
double  out[3],
double  derivative[3][3]
) [virtual]

This will calculate the transformation as well as its derivative without calling Update. Meant for use only within other VTK classes.

Implements vtkAbstractTransform.

Reimplemented in vtkIdentityTransform, and vtkLinearTransform.

void vtkHomogeneousTransform::InternalDeepCopy ( vtkAbstractTransform  )  [protected, virtual]
