vtkImageStencilIterator< DType > Class Template Reference

#include <vtkImageStencilIterator.h>

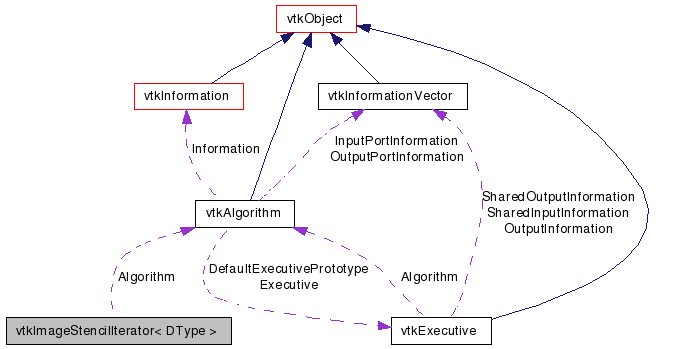

Collaboration diagram for vtkImageStencilIterator< DType >:

Collaboration graph
[legend]

List of all members.


Detailed Description

template<class DType>
class vtkImageStencilIterator< DType >

an image region iterator

This is an image iterator that can be used to iterate over a region of an image.

See also:
vtkImageData vtkImageStencilData vtkImageProgressIterator

Definition at line 34 of file vtkImageStencilIterator.h.


Public Member Functions

 vtkImageStencilIterator ()
void NextSpan ()
 vtkImageStencilIterator (vtkImageData *image, vtkImageStencilData *stencil, int extent[6], vtkAlgorithm *algorithm=0, int threadId=0)
void Initialize (vtkImageData *image, vtkImageStencilData *stencil, int extent[6])
bool IsInStencil ()
bool IsAtEnd ()
DType * BeginSpan ()
DType * EndSpan ()

Protected Member Functions

void SetSpanState (int idX)
void ReportProgress ()

Protected Attributes

DType * Pointer
DType * SpanEndPointer
DType * RowEndPointer
DType * SliceEndPointer
DType * EndPointer
vtkIdType PixelIncrement
vtkIdType RowIncrement
vtkIdType SliceIncrement
vtkIdType RowEndIncrement
vtkIdType SliceEndIncrement
bool HasStencil
bool InStencil
int SpanSliceEndIncrement
int SpanSliceIncrement
int SpanMinX
int SpanMaxX
int SpanMinY
int SpanMaxY
int SpanMinZ
int SpanMaxZ
int SpanIndexX
int SpanIndexY
int SpanIndexZ
int * SpanCountPointer
int ** SpanListPointer
vtkAlgorithmAlgorithm
vtkIdType Count
vtkIdType Target

Constructor & Destructor Documentation

template<class DType>
vtkImageStencilIterator< DType >::vtkImageStencilIterator (  )

Default empty constructor, useful only when creating an array of iterators. Call Initialize() on each iterator before using.

template<class DType>
vtkImageStencilIterator< DType >::vtkImageStencilIterator ( vtkImageData image,
vtkImageStencilData stencil,
int  extent[6],
vtkAlgorithm algorithm = 0,
int  threadId = 0
)

Create an iterator for an extent of an image. If a stencil is provided, it must have an extent at least as large as the desired extent.


Member Function Documentation

template<class DType>
void vtkImageStencilIterator< DType >::Initialize ( vtkImageData image,
vtkImageStencilData stencil,
int  extent[6]
)

Initialize an iterator for an extent of the image. If a stencil is provided, it must have an extent at least as large as the desired extent.

template<class DType>
bool vtkImageStencilIterator< DType >::IsInStencil (  )  [inline]

Check if the iterator is within the stencilled region. This is updated when NextSpan() is called.

Definition at line 61 of file vtkImageStencilIterator.h.

template<class DType>
void vtkImageStencilIterator< DType >::NextSpan (  )

Move the iterator to the start of the next span. A span is a contiguous region over which nothing but the X index changes.

template<class DType>
bool vtkImageStencilIterator< DType >::IsAtEnd (  )  [inline]

Test if the end of the extent has been reached

Definition at line 73 of file vtkImageStencilIterator.h.

template<class DType>
DType* vtkImageStencilIterator< DType >::BeginSpan (  )  [inline]

Return a pointer to the beginning of the current span.

Definition at line 81 of file vtkImageStencilIterator.h.

template<class DType>
DType* vtkImageStencilIterator< DType >::EndSpan (  )  [inline]

Return a pointer to the end of the current span.

Definition at line 89 of file vtkImageStencilIterator.h.

template<class DType>
void vtkImageStencilIterator< DType >::SetSpanState ( int  idX  )  [protected]

Set all the state variables for the stencil span that includes idX.

template<class DType>
void vtkImageStencilIterator< DType >::ReportProgress (  )  [protected]

Report the progress and do an abort check. This must be called every time that one row of the image is completed. Only called if Algorithm is not null.


Member Data Documentation

template<class DType>
DType* vtkImageStencilIterator< DType >::Pointer [protected]

Definition at line 106 of file vtkImageStencilIterator.h.

template<class DType>
DType* vtkImageStencilIterator< DType >::SpanEndPointer [protected]

Definition at line 107 of file vtkImageStencilIterator.h.

template<class DType>
DType* vtkImageStencilIterator< DType >::RowEndPointer [protected]

Definition at line 108 of file vtkImageStencilIterator.h.

template<class DType>
DType* vtkImageStencilIterator< DType >::SliceEndPointer [protected]

Definition at line 109 of file vtkImageStencilIterator.h.

template<class DType>
DType* vtkImageStencilIterator< DType >::EndPointer [protected]

Definition at line 110 of file vtkImageStencilIterator.h.

template<class DType>
vtkIdType vtkImageStencilIterator< DType >::PixelIncrement [protected]

Definition at line 113 of file vtkImageStencilIterator.h.

template<class DType>
vtkIdType vtkImageStencilIterator< DType >::RowIncrement [protected]

Definition at line 114 of file vtkImageStencilIterator.h.

template<class DType>
vtkIdType vtkImageStencilIterator< DType >::SliceIncrement [protected]

Definition at line 115 of file vtkImageStencilIterator.h.

template<class DType>
vtkIdType vtkImageStencilIterator< DType >::RowEndIncrement [protected]

Definition at line 116 of file vtkImageStencilIterator.h.

template<class DType>
vtkIdType vtkImageStencilIterator< DType >::SliceEndIncrement [protected]

Definition at line 117 of file vtkImageStencilIterator.h.

template<class DType>
bool vtkImageStencilIterator< DType >::HasStencil [protected]

Definition at line 120 of file vtkImageStencilIterator.h.

template<class DType>
bool vtkImageStencilIterator< DType >::InStencil [protected]

Definition at line 121 of file vtkImageStencilIterator.h.

template<class DType>
int vtkImageStencilIterator< DType >::SpanSliceEndIncrement [protected]

Definition at line 122 of file vtkImageStencilIterator.h.

template<class DType>
int vtkImageStencilIterator< DType >::SpanSliceIncrement [protected]

Definition at line 123 of file vtkImageStencilIterator.h.

template<class DType>
int vtkImageStencilIterator< DType >::SpanMinX [protected]

Definition at line 124 of file vtkImageStencilIterator.h.

template<class DType>
int vtkImageStencilIterator< DType >::SpanMaxX [protected]

Definition at line 125 of file vtkImageStencilIterator.h.

template<class DType>
int vtkImageStencilIterator< DType >::SpanMinY [protected]

Definition at line 126 of file vtkImageStencilIterator.h.

template<class DType>
int vtkImageStencilIterator< DType >::SpanMaxY [protected]

Definition at line 127 of file vtkImageStencilIterator.h.

template<class DType>
int vtkImageStencilIterator< DType >::SpanMinZ [protected]

Definition at line 128 of file vtkImageStencilIterator.h.

template<class DType>
int vtkImageStencilIterator< DType >::SpanMaxZ [protected]

Definition at line 129 of file vtkImageStencilIterator.h.

template<class DType>
int vtkImageStencilIterator< DType >::SpanIndexX [protected]

Definition at line 130 of file vtkImageStencilIterator.h.

template<class DType>
int vtkImageStencilIterator< DType >::SpanIndexY [protected]

Definition at line 131 of file vtkImageStencilIterator.h.

template<class DType>
int vtkImageStencilIterator< DType >::SpanIndexZ [protected]

Definition at line 132 of file vtkImageStencilIterator.h.

template<class DType>
int* vtkImageStencilIterator< DType >::SpanCountPointer [protected]

Definition at line 133 of file vtkImageStencilIterator.h.

template<class DType>
int** vtkImageStencilIterator< DType >::SpanListPointer [protected]

Definition at line 134 of file vtkImageStencilIterator.h.

template<class DType>
vtkAlgorithm* vtkImageStencilIterator< DType >::Algorithm [protected]

Definition at line 137 of file vtkImageStencilIterator.h.

template<class DType>
vtkIdType vtkImageStencilIterator< DType >::Count [protected]

Definition at line 138 of file vtkImageStencilIterator.h.

template<class DType>
vtkIdType vtkImageStencilIterator< DType >::Target [protected]

Definition at line 139 of file vtkImageStencilIterator.h.


The documentation for this class was generated from the following file:
