vtkImageToImageFilter Class Reference

#include <vtkImageToImageFilter.h>

Inheritance diagram for vtkImageToImageFilter:

[legend]

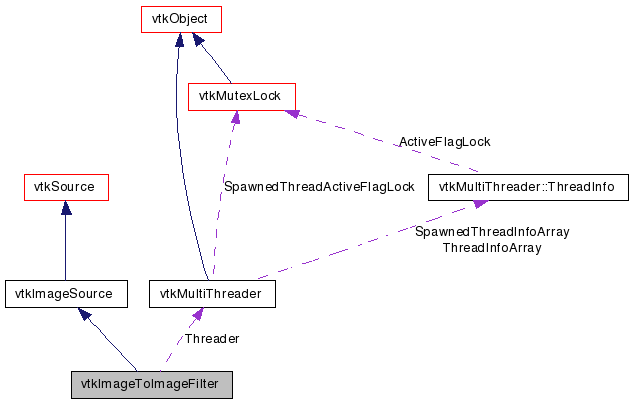

Collaboration diagram for vtkImageToImageFilter:

[legend]

List of all members.

Detailed Description

Generic filter that has one input of type vtkImageData.

vtkImageToImageFilter is a filter superclass that hides much of the pipeline complexity. It handles breaking the pipeline execution into smaller extents so that the vtkImageData limits are observed. It also provides support for multithreading. If you don't need any of this functionality, consider using vtkSimpleImageToImageFilter instead.

Warning:: This used to be the parent class for most imaging filter in VTK4.x, now this role has been replaced by vtkImageAlgorithm. You should consider using vtkImageAlgorithm instead, when writing filter for VTK5 and above. This class was kept to ensure full backward compatibility.

See also:: vtkSimpleImageToImageFilter vtkImageSpatialFilter vtkImageAlgorithm

Definition at line 39 of file vtkImageToImageFilter.h.


Public Types
typedef vtkImageSource	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetInputMemoryLimit (int)
long	GetInputMemoryLimit ()

virtual void	SetInput (vtkImageData *input)
vtkImageData *	GetInput ()

void	SetBypass (int)
void	BypassOn ()
void	BypassOff ()
virtual int	GetBypass ()

virtual void	ThreadedExecute (vtkImageData inData, vtkImageData outData, int extent[6], int threadId)

virtual void	SetNumberOfThreads (int)
virtual int	GetNumberOfThreads ()

virtual int	SplitExtent (int splitExt[6], int startExt[6], int num, int total)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkImageToImageFilter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageToImageFilter ()
	~vtkImageToImageFilter ()
void	ExecuteInformation ()
virtual void	ExecuteInformation (vtkImageData inData, vtkImageData outData)
void	ExecuteData (vtkDataObject *output)
virtual vtkImageData *	AllocateOutputData (vtkDataObject *out)
void	MultiThread (vtkImageData input, vtkImageData output)
void	ComputeInputUpdateExtents (vtkDataObject *output)
virtual void	ComputeInputUpdateExtent (int inExt[6], int outExt[6])
virtual void	SetInputScalarsSelection (const char *)
virtual int	FillInputPortInformation (int, vtkInformation *)
Protected Attributes
vtkMultiThreader *	Threader
int	Bypass
int	BypassWasOn
int	NumberOfThreads
char *	InputScalarsSelection

Member Typedef Documentation

typedef vtkImageSource vtkImageToImageFilter::Superclass

Reimplemented from vtkImageSource.

Reimplemented in vtkImageSpatialFilter.

Definition at line 42 of file vtkImageToImageFilter.h.

Constructor & Destructor Documentation

vtkImageToImageFilter::vtkImageToImageFilter ( ) [protected]

vtkImageToImageFilter::~vtkImageToImageFilter ( ) [protected]

Member Function Documentation

virtual const char* vtkImageToImageFilter::GetClassName ( ) [virtual]

Reimplemented from vtkImageSource.

Reimplemented in vtkImageSpatialFilter.

static int vtkImageToImageFilter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageSource.

Reimplemented in vtkImageSpatialFilter.

virtual int vtkImageToImageFilter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageSource.

Reimplemented in vtkImageSpatialFilter.

static vtkImageToImageFilter* vtkImageToImageFilter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkImageSource.

Reimplemented in vtkImageSpatialFilter.

void vtkImageToImageFilter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageSource.

Reimplemented in vtkImageSpatialFilter.

virtual void vtkImageToImageFilter::SetInput ( vtkImageData * input ) [virtual]

Set the Input of a filter.

vtkImageData* vtkImageToImageFilter::GetInput ( )

Set the Input of a filter.

void vtkImageToImageFilter::SetBypass ( int ) [inline]

Obsolete feature - do not use.

Definition at line 53 of file vtkImageToImageFilter.h.

void vtkImageToImageFilter::BypassOn ( ) [inline]

Obsolete feature - do not use.

Definition at line 54 of file vtkImageToImageFilter.h.

void vtkImageToImageFilter::BypassOff ( ) [inline]

Obsolete feature - do not use.

Definition at line 55 of file vtkImageToImageFilter.h.

virtual int vtkImageToImageFilter::GetBypass ( ) [virtual]

Obsolete feature - do not use.

virtual void vtkImageToImageFilter::ThreadedExecute	(	vtkImageData *	inData,
		vtkImageData *	outData,
		int	extent[6],
		int	threadId
	)			`[virtual]`

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

virtual void vtkImageToImageFilter::SetNumberOfThreads ( int ) [virtual]

Get/Set the number of threads to create when rendering

virtual int vtkImageToImageFilter::GetNumberOfThreads ( ) [virtual]

Get/Set the number of threads to create when rendering

void vtkImageToImageFilter::SetInputMemoryLimit ( int ) [inline]

Definition at line 75 of file vtkImageToImageFilter.h.

long vtkImageToImageFilter::GetInputMemoryLimit ( ) [inline]

Definition at line 77 of file vtkImageToImageFilter.h.

virtual int vtkImageToImageFilter::SplitExtent	(	int	splitExt[6],
		int	startExt[6],
		int	num,
		int	total
	)			`[virtual]`

Putting this here until I merge graphics and imaging streaming.

void vtkImageToImageFilter::ExecuteInformation ( ) [protected, virtual]

Reimplemented from vtkSource.

Reimplemented in vtkImageSpatialFilter.

virtual void vtkImageToImageFilter::ExecuteInformation	(	vtkImageData *	inData,
		vtkImageData *	outData
	)			`[protected, virtual]`

Reimplemented in vtkImageSpatialFilter.

void vtkImageToImageFilter::ExecuteData ( vtkDataObject * output ) [protected, virtual]

This method is the one that should be used by subclasses, right now the default implementation is to call the backwards compatibility method

Reimplemented from vtkSource.

virtual vtkImageData* vtkImageToImageFilter::AllocateOutputData ( vtkDataObject * out ) [protected, virtual]

Reimplemented from vtkImageSource.

void vtkImageToImageFilter::MultiThread	(	vtkImageData *	input,
		vtkImageData *	output
	)			`[protected]`

void vtkImageToImageFilter::ComputeInputUpdateExtents ( vtkDataObject * output ) [protected, virtual]

What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses.

Reimplemented from vtkSource.

virtual void vtkImageToImageFilter::ComputeInputUpdateExtent	(	int	inExt[6],
		int	outExt[6]
	)			`[protected, virtual]`

Reimplemented in vtkImageSpatialFilter.

virtual void vtkImageToImageFilter::SetInputScalarsSelection ( const char * ) [protected, virtual]

virtual int vtkImageToImageFilter::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkProcessObject.
