vtkSource Class Reference

#include <vtkSource.h>

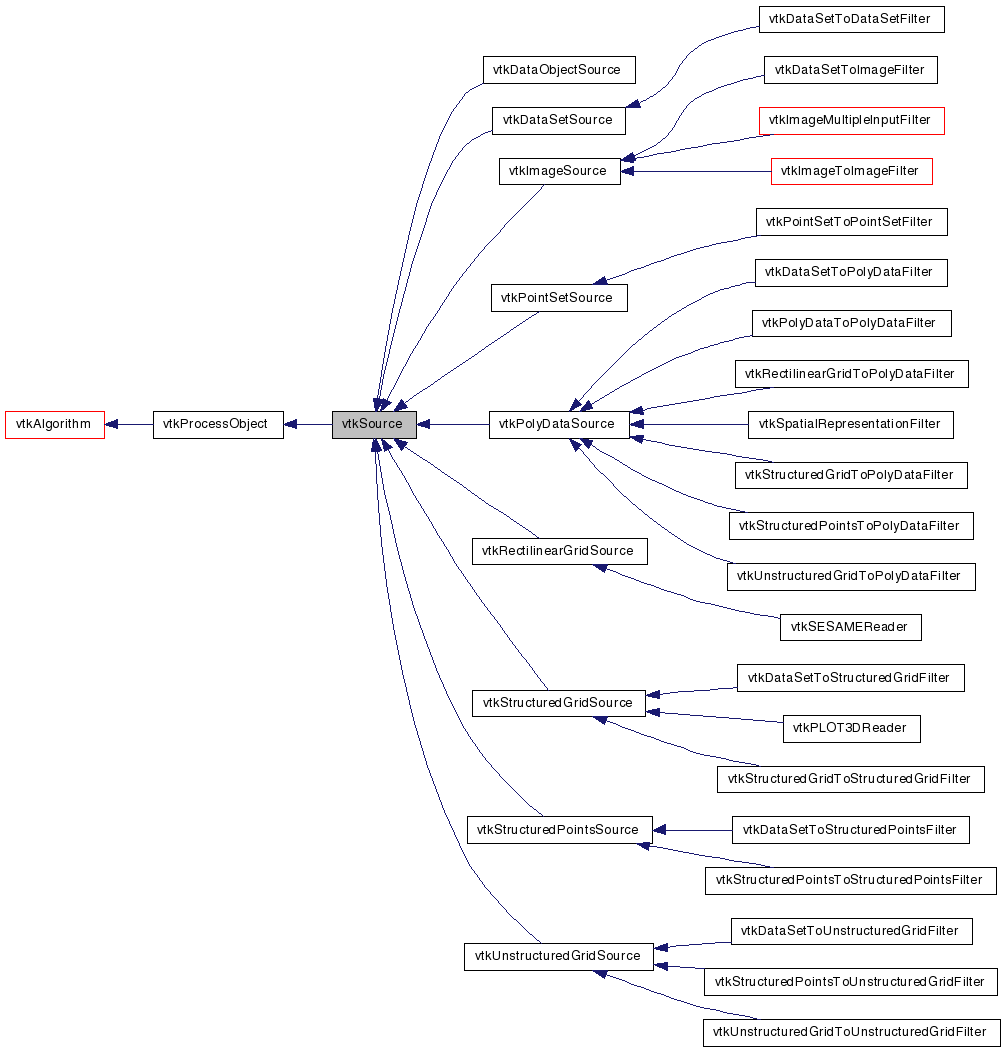

Inheritance diagram for vtkSource:

Inheritance graph
[legend]
Collaboration diagram for vtkSource:

Collaboration graph
[legend]

List of all members.


Detailed Description

abstract class specifies interface for visualization network source

vtkSource is an abstract object that specifies behavior and interface of source objects. Source objects are objects that begin visualization pipeline. Sources include readers (read data from file or communications port) and procedural sources (generate data programmatically). vtkSource objects are also objects that generate output data. In this sense vtkSource is used as a superclass to vtkFilter.

Concrete subclasses of vtkSource must define Update() and Execute() methods. The public method Update() invokes network execution and will bring the network up-to-date. The protected Execute() method actually does the work of data creation/generation. The difference between the two methods is that Update() implements input consistency checks and modified time comparisons and then invokes the Execute() which is an implementation of a particular algorithm.

An important feature of subclasses of vtkSource is that it is possible to control the memory-management model (i.e., retain output versus delete output data). If enabled the ReleaseDataFlag enables the deletion of the output data once the downstream process object finishes processing the data (please see text).

See also:
vtkProcessObject vtkDataSetReader vtkFilter vtkPolyDataSource vtkStructuredGridSource vtkStructuredPointsSource vtkUnstructuredGridSource
Events:
vtkCommand::ExecuteInformationEvent vtkCommand::SetOutputEvent

Definition at line 55 of file vtkSource.h.


Public Types

typedef vtkProcessObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void Update ()
virtual void UpdateWholeExtent ()
virtual void UpdateInformation ()
virtual void PropagateUpdateExtent (vtkDataObject *output)
virtual void TriggerAsynchronousUpdate ()
virtual void UpdateData (vtkDataObject *output)
virtual void ComputeInputUpdateExtents (vtkDataObject *output)
void UnRegisterAllOutputs (void)
int GetOutputIndex (vtkDataObject *out)
virtual void SetExecutive (vtkExecutive *executive)
virtual void SetReleaseDataFlag (int)
virtual int GetReleaseDataFlag ()
virtual void ReleaseDataFlagOn ()
virtual void ReleaseDataFlagOff ()
vtkDataObject ** GetOutputs ()
virtual int GetNumberOfOutputs ()
virtual int ProcessRequest (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkSourceSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkSource ()
 ~vtkSource ()
virtual void ExecuteData (vtkDataObject *output)
virtual void Execute ()
virtual void ExecuteInformation ()
virtual void MarkGeneratedOutputs (vtkDataObject *)
void SetNumberOfOutputs (int num)
vtkDataObjectGetOutput (int idx)
virtual void SetNthOutput (int num, vtkDataObject *output)
virtual void AddOutput (vtkDataObject *output)
virtual void RemoveOutput (vtkDataObject *output)
virtual void ReportReferences (vtkGarbageCollector *)
int FillOutputPortInformation (int, vtkInformation *)
virtual void SetNumberOfOutputPorts (int n)

Protected Attributes

vtkDataObject ** Outputs
int NumberOfOutputs
int Updating
vtkTimeStamp InformationTime

Friends

class vtkDataObjectToSourceFriendship

Member Typedef Documentation


Constructor & Destructor Documentation

vtkSource::vtkSource (  )  [protected]

vtkSource::~vtkSource (  )  [protected]


Member Function Documentation

virtual const char* vtkSource::GetClassName (  )  [virtual]

static int vtkSource::IsTypeOf ( const char *  name  )  [static]

virtual int vtkSource::IsA ( const char *  name  )  [virtual]

static vtkSource* vtkSource::SafeDownCast ( vtkObject o  )  [static]

void vtkSource::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

virtual void vtkSource::Update (  )  [virtual]

Bring object up-to-date before execution. Update() checks modified time against last execution time, and re-executes object if necessary.

Reimplemented from vtkAlgorithm.

virtual void vtkSource::UpdateWholeExtent (  )  [virtual]

Like update, but make sure the update extent is the whole extent in the output.

Reimplemented from vtkAlgorithm.

virtual void vtkSource::UpdateInformation (  )  [virtual]

Updates any global information about the data (like spacing for images)

Reimplemented from vtkAlgorithm.

virtual void vtkSource::PropagateUpdateExtent ( vtkDataObject output  )  [virtual]

WARNING: INTERNAL METHOD - NOT FOR GENERAL USE. THIS METHOD IS PART OF THE PIPELINE UPDATE FUNCTIONALITY. The update extent for this object is propagated up the pipeline. This propagation may early terminate based on the PipelineMTime.

virtual void vtkSource::TriggerAsynchronousUpdate (  )  [virtual]

WARNING: INTERNAL METHOD - NOT FOR GENERAL USE. THIS METHOD IS PART OF THE PIPELINE UPDATE FUNCTIONALITY. Propagate back up the pipeline for ports and trigger the update on the other side of the port to allow for asynchronous parallel processing in the pipeline. This propagation may early terminate based on the PipelineMTime.

virtual void vtkSource::UpdateData ( vtkDataObject output  )  [virtual]

WARNING: INTERNAL METHOD - NOT FOR GENERAL USE. THIS METHOD IS PART OF THE PIPELINE UPDATE FUNCTIONALITY. Propagate the update back up the pipeline, and perform the actual work of updating on the way down. When the propagate arrives at a port, block and wait for the asynchronous update to finish on the other side. This propagation may early terminate based on the PipelineMTime.

virtual void vtkSource::ComputeInputUpdateExtents ( vtkDataObject output  )  [virtual]

virtual void vtkSource::SetReleaseDataFlag ( int   )  [virtual]

Turn on/off flag to control whether this object's data is released after being used by a source.

Reimplemented from vtkAlgorithm.

virtual int vtkSource::GetReleaseDataFlag (  )  [virtual]

Turn on/off flag to control whether this object's data is released after being used by a source.

Reimplemented from vtkAlgorithm.

virtual void vtkSource::ReleaseDataFlagOn (  )  [virtual]

Turn on/off flag to control whether this object's data is released after being used by a source.

Reimplemented from vtkAlgorithm.

virtual void vtkSource::ReleaseDataFlagOff (  )  [virtual]

Turn on/off flag to control whether this object's data is released after being used by a source.

Reimplemented from vtkAlgorithm.

vtkDataObject** vtkSource::GetOutputs (  )

Return an array with all the inputs of this process object. This is useful for tracing back in the pipeline to construct graphs etc.

virtual int vtkSource::GetNumberOfOutputs (  )  [virtual]

Return an array with all the inputs of this process object. This is useful for tracing back in the pipeline to construct graphs etc.

Reimplemented in vtkPLOT3DReader.

void vtkSource::UnRegisterAllOutputs ( void   )

Release/disconnect all outputs of this source. This is intended to be called prior to Delete() if the user is concerned about outputs holding on to the filter/source.

int vtkSource::GetOutputIndex ( vtkDataObject out  )

Return what index output the passed in output is, return -1 if it does not match any of the outputs

virtual void vtkSource::SetExecutive ( vtkExecutive executive  )  [virtual]

Set this algorithm's executive. This algorithm is removed from any executive to which it has previously been assigned and then assigned to the given executive.

Reimplemented from vtkAlgorithm.

virtual int vtkSource::ProcessRequest ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [virtual]

Transform pipeline requests from executives into old-style pipeline calls. This works with the vtkStreamingDemandDrivenPipeline executive to maintain backward compatibility for filters written as subclasses of vtkSource.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkDataSetToDataSetFilter.

virtual void vtkSource::ExecuteData ( vtkDataObject output  )  [protected, virtual]

This method is the one that should be used by subclasses, right now the default implementation is to call the backwards compatibility method

Reimplemented in vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, and vtkImageToImageFilter.

virtual void vtkSource::Execute (  )  [protected, virtual]

This method is the old style execute method

Reimplemented in vtkImageSource, vtkSpatialRepresentationFilter, vtkPLOT3DReader, and vtkSESAMEReader.

virtual void vtkSource::ExecuteInformation (  )  [protected, virtual]

virtual void vtkSource::MarkGeneratedOutputs ( vtkDataObject  )  [protected, virtual]

void vtkSource::SetNumberOfOutputs ( int  num  )  [protected]

vtkDataObject* vtkSource::GetOutput ( int  idx  )  [protected]

virtual void vtkSource::SetNthOutput ( int  num,
vtkDataObject output
) [protected, virtual]

virtual void vtkSource::AddOutput ( vtkDataObject output  )  [protected, virtual]

virtual void vtkSource::RemoveOutput ( vtkDataObject output  )  [protected, virtual]

virtual void vtkSource::ReportReferences ( vtkGarbageCollector  )  [protected, virtual]

Reimplemented from vtkProcessObject.

Reimplemented in vtkSpatialRepresentationFilter.

int vtkSource::FillOutputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkProcessObject.

Reimplemented in vtkDataObjectSource, vtkDataSetSource, vtkImageSource, vtkPointSetSource, vtkPolyDataSource, vtkRectilinearGridSource, vtkStructuredGridSource, vtkStructuredPointsSource, and vtkUnstructuredGridSource.

virtual void vtkSource::SetNumberOfOutputPorts ( int  n  )  [protected, virtual]

Set the number of output ports provided by the algorithm.

Reimplemented from vtkAlgorithm.


Friends And Related Function Documentation

friend class vtkDataObjectToSourceFriendship [friend]

Definition at line 189 of file vtkSource.h.


Member Data Documentation

Definition at line 173 of file vtkSource.h.

int vtkSource::NumberOfOutputs [protected]

Definition at line 174 of file vtkSource.h.

int vtkSource::Updating [protected]

Definition at line 175 of file vtkSource.h.

Definition at line 177 of file vtkSource.h.


The documentation for this class was generated from the following file:
