vtkImplicitPlaneRepresentation Class Reference

#include <vtkImplicitPlaneRepresentation.h>

Inheritance diagram for vtkImplicitPlaneRepresentation:

[legend]

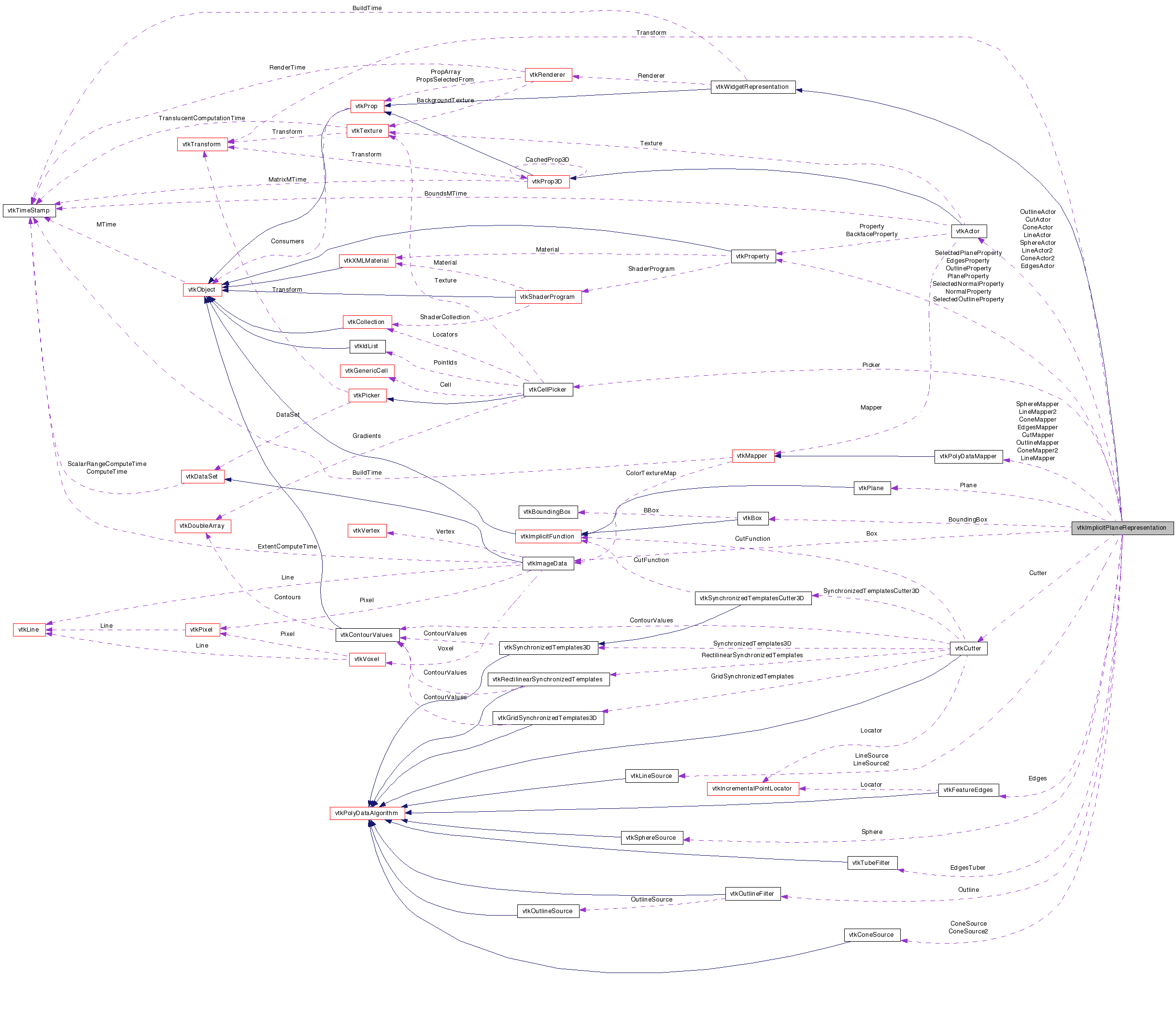

Collaboration diagram for vtkImplicitPlaneRepresentation:

[legend]

List of all members.

---

Detailed Description

a class defining the representation for a vtkImplicitPlaneWidget2

This class is a concrete representation for the vtkImplicitPlaneWidget2. It represents an infinite plane defined by a normal and point in the context of a bounding box. Through interaction with the widget, the plane can be manipulated by adjusting the plane normal or moving the origin point.

To use this representation, you normally define a (plane) origin and (plane) normal. The PlaceWidget() method is also used to intially position the representation.

Warning:

This class, and vtkImplicitPlaneWidget2, are next generation VTK widgets. An earlier version of this functionality was defined in the class vtkImplicitPlaneWidget.

See also:

vtkImplicitPlaneWidget2 vtkImplicitPlaneWidget

Tests:

vtkImplicitPlaneRepresentation (Tests)

Definition at line 63 of file vtkImplicitPlaneRepresentation.h.

typedef vtkWidgetRepresentation	Superclass
static int	IsTypeOf (const char *type)
static vtkImplicitPlaneRepresentation *	SafeDownCast (vtkObject *o)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Public Types
enum	_InteractionState {   Outside = 0, Moving, MovingOutline, MovingOrigin,   Rotating, Pushing, MovingPlane, Scaling }
Public Member Functions
void	GetPolyData (vtkPolyData *pd)
vtkPolyDataAlgorithm *	GetPolyDataAlgorithm ()
void	GetPlane (vtkPlane *plane)
void	UpdatePlacement (void)
void	SetOrigin (double x, double y, double z)
void	SetOrigin (double x[3])
double *	GetOrigin ()
void	GetOrigin (double xyz[3])
void	SetNormal (double x, double y, double z)
void	SetNormal (double x[3])
double *	GetNormal ()
void	GetNormal (double xyz[3])
void	SetNormalToXAxis (int)
virtual int	GetNormalToXAxis ()
virtual void	NormalToXAxisOn ()
virtual void	NormalToXAxisOff ()
void	SetNormalToYAxis (int)
virtual int	GetNormalToYAxis ()
virtual void	NormalToYAxisOn ()
virtual void	NormalToYAxisOff ()
void	SetNormalToZAxis (int)
virtual int	GetNormalToZAxis ()
virtual void	NormalToZAxisOn ()
virtual void	NormalToZAxisOff ()
virtual void	SetTubing (int)
virtual int	GetTubing ()
virtual void	TubingOn ()
virtual void	TubingOff ()
void	SetDrawPlane (int plane)
virtual int	GetDrawPlane ()
virtual void	DrawPlaneOn ()
virtual void	DrawPlaneOff ()
virtual void	SetOutlineTranslation (int)
virtual int	GetOutlineTranslation ()
virtual void	OutlineTranslationOn ()
virtual void	OutlineTranslationOff ()
virtual void	SetOutsideBounds (int)
virtual int	GetOutsideBounds ()
virtual void	OutsideBoundsOn ()
virtual void	OutsideBoundsOff ()
virtual void	SetScaleEnabled (int)
virtual int	GetScaleEnabled ()
virtual void	ScaleEnabledOn ()
virtual void	ScaleEnabledOff ()
virtual vtkProperty *	GetNormalProperty ()
virtual vtkProperty *	GetSelectedNormalProperty ()
virtual vtkProperty *	GetPlaneProperty ()
virtual vtkProperty *	GetSelectedPlaneProperty ()
virtual vtkProperty *	GetOutlineProperty ()
virtual vtkProperty *	GetSelectedOutlineProperty ()
virtual vtkProperty *	GetEdgesProperty ()
virtual int	ComputeInteractionState (int X, int Y, int modify=0)
virtual void	PlaceWidget (double bounds[6])
virtual void	BuildRepresentation ()
virtual void	StartWidgetInteraction (double eventPos[2])
virtual void	WidgetInteraction (double newEventPos[2])
virtual void	EndWidgetInteraction (double newEventPos[2])
virtual double *	GetBounds ()
virtual void	GetActors (vtkPropCollection *pc)
virtual void	ReleaseGraphicsResources (vtkWindow *)
virtual int	RenderOpaqueGeometry (vtkViewport *)
virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *)
virtual int	HasTranslucentPolygonalGeometry ()
virtual void	SetInteractionState (int)
virtual void	SetRepresentationState (int)
virtual int	GetRepresentationState ()
Static Public Member Functions
static vtkImplicitPlaneRepresentation *	New ()
Protected Member Functions
	vtkImplicitPlaneRepresentation ()
	~vtkImplicitPlaneRepresentation ()
void	HighlightOutline (int highlight)
void	HighlightPlane (int highlight)
void	HighlightNormal (int highlight)
void	ConstrainOrigin (double x[3])
void	Rotate (double X, double Y, double *p1, double *p2, double *vpn)
void	TranslatePlane (double *p1, double *p2)
void	TranslateOutline (double *p1, double *p2)
void	TranslateOrigin (double *p1, double *p2)
void	Push (double *p1, double *p2)
void	Scale (double *p1, double *p2, double X, double Y)
void	SizeHandles ()
void	CreateDefaultProperties ()
void	GeneratePlane ()
Protected Attributes
int	RepresentationState
double	LastEventPosition [3]
int	NormalToXAxis
int	NormalToYAxis
int	NormalToZAxis
vtkPlane *	Plane
vtkImageData *	Box
vtkOutlineFilter *	Outline
vtkPolyDataMapper *	OutlineMapper
vtkActor *	OutlineActor
int	OutlineTranslation
int	ScaleEnabled
int	OutsideBounds
vtkCutter *	Cutter
vtkPolyDataMapper *	CutMapper
vtkActor *	CutActor
int	DrawPlane
vtkFeatureEdges *	Edges
vtkTubeFilter *	EdgesTuber
vtkPolyDataMapper *	EdgesMapper
vtkActor *	EdgesActor
int	Tubing
vtkConeSource *	ConeSource
vtkPolyDataMapper *	ConeMapper
vtkActor *	ConeActor
vtkLineSource *	LineSource
vtkPolyDataMapper *	LineMapper
vtkActor *	LineActor
vtkConeSource *	ConeSource2
vtkPolyDataMapper *	ConeMapper2
vtkActor *	ConeActor2
vtkLineSource *	LineSource2
vtkPolyDataMapper *	LineMapper2
vtkActor *	LineActor2
vtkSphereSource *	Sphere
vtkPolyDataMapper *	SphereMapper
vtkActor *	SphereActor
vtkCellPicker *	Picker
vtkTransform *	Transform
vtkProperty *	NormalProperty
vtkProperty *	SelectedNormalProperty
vtkProperty *	PlaneProperty
vtkProperty *	SelectedPlaneProperty
vtkProperty *	OutlineProperty
vtkProperty *	SelectedOutlineProperty
vtkProperty *	EdgesProperty
vtkBox *	BoundingBox

---

Member Typedef Documentation

typedef vtkWidgetRepresentation vtkImplicitPlaneRepresentation::Superclass

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

Definition at line 71 of file vtkImplicitPlaneRepresentation.h.

---

Member Enumeration Documentation

enum vtkImplicitPlaneRepresentation::_InteractionState

Enumerator:

Outside
Moving
MovingOutline
MovingOrigin
Rotating
Pushing
MovingPlane
Scaling

Definition at line 213 of file vtkImplicitPlaneRepresentation.h.

---

Constructor & Destructor Documentation

vtkImplicitPlaneRepresentation::vtkImplicitPlaneRepresentation

(

)

[protected]

vtkImplicitPlaneRepresentation::~vtkImplicitPlaneRepresentation

(

)

[protected]

---

Member Function Documentation

static vtkImplicitPlaneRepresentation* vtkImplicitPlaneRepresentation::New

(

)

[static]

Instantiate the class.

Reimplemented from vtkObject.

virtual const char* vtkImplicitPlaneRepresentation::GetClassName

(

)

[virtual]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

static int vtkImplicitPlaneRepresentation::IsTypeOf

(

const char *

type

)

[static]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

virtual int vtkImplicitPlaneRepresentation::IsA

(

const char *

type

)

[virtual]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

static vtkImplicitPlaneRepresentation* vtkImplicitPlaneRepresentation::SafeDownCast

(

vtkObject *

o

)

[static]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

void vtkImplicitPlaneRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

void vtkImplicitPlaneRepresentation::SetOrigin	(	double	x,
		double	y,
		double	z
	)

Get the origin of the plane.

void vtkImplicitPlaneRepresentation::SetOrigin

(

double

x[3]

)

Get the origin of the plane.

double* vtkImplicitPlaneRepresentation::GetOrigin

(

)

Get the origin of the plane.

void vtkImplicitPlaneRepresentation::GetOrigin

(

double

xyz[3]

)

Get the origin of the plane.

void vtkImplicitPlaneRepresentation::SetNormal	(	double	x,
		double	y,
		double	z
	)

Get the normal to the plane.

void vtkImplicitPlaneRepresentation::SetNormal

(

double

x[3]

)

Get the normal to the plane.

double* vtkImplicitPlaneRepresentation::GetNormal

(

)

Get the normal to the plane.

void vtkImplicitPlaneRepresentation::GetNormal

(

double

xyz[3]

)

Get the normal to the plane.

void vtkImplicitPlaneRepresentation::SetNormalToXAxis

(

int

)

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual int vtkImplicitPlaneRepresentation::GetNormalToXAxis

(

)

[virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::NormalToXAxisOn

(

)

[virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::NormalToXAxisOff

(

)

[virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

void vtkImplicitPlaneRepresentation::SetNormalToYAxis

(

int

)

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual int vtkImplicitPlaneRepresentation::GetNormalToYAxis

(

)

[virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::NormalToYAxisOn

(

)

[virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::NormalToYAxisOff

(

)

[virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

void vtkImplicitPlaneRepresentation::SetNormalToZAxis

(

int

)

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual int vtkImplicitPlaneRepresentation::GetNormalToZAxis

(

)

[virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::NormalToZAxisOn

(

)

[virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::NormalToZAxisOff

(

)

[virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneRepresentation::SetTubing

(

int

)

[virtual]

Turn on/off tubing of the wire outline of the plane. The tube thickens the line by wrapping with a vtkTubeFilter.

virtual int vtkImplicitPlaneRepresentation::GetTubing

(

)

[virtual]

Turn on/off tubing of the wire outline of the plane. The tube thickens the line by wrapping with a vtkTubeFilter.

virtual void vtkImplicitPlaneRepresentation::TubingOn

(

)

[virtual]

Turn on/off tubing of the wire outline of the plane. The tube thickens the line by wrapping with a vtkTubeFilter.

virtual void vtkImplicitPlaneRepresentation::TubingOff

(

)

[virtual]

Turn on/off tubing of the wire outline of the plane. The tube thickens the line by wrapping with a vtkTubeFilter.

void vtkImplicitPlaneRepresentation::SetDrawPlane

(

int

plane

)

Enable/disable the drawing of the plane. In some cases the plane interferes with the object that it is operating on (i.e., the plane interferes with the cut surface it produces producing z-buffer artifacts.)

virtual int vtkImplicitPlaneRepresentation::GetDrawPlane

(

)

[virtual]

Enable/disable the drawing of the plane. In some cases the plane interferes with the object that it is operating on (i.e., the plane interferes with the cut surface it produces producing z-buffer artifacts.)

virtual void vtkImplicitPlaneRepresentation::DrawPlaneOn

(

)

[virtual]

Enable/disable the drawing of the plane. In some cases the plane interferes with the object that it is operating on (i.e., the plane interferes with the cut surface it produces producing z-buffer artifacts.)

virtual void vtkImplicitPlaneRepresentation::DrawPlaneOff

(

)

[virtual]

Enable/disable the drawing of the plane. In some cases the plane interferes with the object that it is operating on (i.e., the plane interferes with the cut surface it produces producing z-buffer artifacts.)

virtual void vtkImplicitPlaneRepresentation::SetOutlineTranslation

(

int

)

[virtual]

Turn on/off the ability to translate the bounding box by grabbing it with the left mouse button.

virtual int vtkImplicitPlaneRepresentation::GetOutlineTranslation

(

)

[virtual]

Turn on/off the ability to translate the bounding box by grabbing it with the left mouse button.

virtual void vtkImplicitPlaneRepresentation::OutlineTranslationOn

(

)

[virtual]

Turn on/off the ability to translate the bounding box by grabbing it with the left mouse button.

virtual void vtkImplicitPlaneRepresentation::OutlineTranslationOff

(

)

[virtual]

Turn on/off the ability to translate the bounding box by grabbing it with the left mouse button.

virtual void vtkImplicitPlaneRepresentation::SetOutsideBounds

(

int

)

[virtual]

Turn on/off the ability to move the widget outside of the bounds specified in the initial PlaceWidget() invocation.

virtual int vtkImplicitPlaneRepresentation::GetOutsideBounds

(

)

[virtual]

Turn on/off the ability to move the widget outside of the bounds specified in the initial PlaceWidget() invocation.

virtual void vtkImplicitPlaneRepresentation::OutsideBoundsOn

(

)

[virtual]

Turn on/off the ability to move the widget outside of the bounds specified in the initial PlaceWidget() invocation.

virtual void vtkImplicitPlaneRepresentation::OutsideBoundsOff

(

)

[virtual]

Turn on/off the ability to move the widget outside of the bounds specified in the initial PlaceWidget() invocation.

virtual void vtkImplicitPlaneRepresentation::SetScaleEnabled

(

int

)

[virtual]

Turn on/off the ability to scale the widget with the mouse.

virtual int vtkImplicitPlaneRepresentation::GetScaleEnabled

(

)

[virtual]

Turn on/off the ability to scale the widget with the mouse.

virtual void vtkImplicitPlaneRepresentation::ScaleEnabledOn

(

)

[virtual]

Turn on/off the ability to scale the widget with the mouse.

virtual void vtkImplicitPlaneRepresentation::ScaleEnabledOff

(

)

[virtual]

Turn on/off the ability to scale the widget with the mouse.

void vtkImplicitPlaneRepresentation::GetPolyData

(

vtkPolyData *

pd

)

Grab the polydata that defines the plane. The polydata contains a single polygon that is clipped by the bounding box.

vtkPolyDataAlgorithm* vtkImplicitPlaneRepresentation::GetPolyDataAlgorithm

(

)

Satisfies superclass API. This returns a pointer to the underlying PolyData (which represents the plane).

void vtkImplicitPlaneRepresentation::GetPlane

(

vtkPlane *

plane

)

Get the implicit function for the plane. The user must provide the instance of the class vtkPlane. Note that vtkPlane is a subclass of vtkImplicitFunction, meaning that it can be used by a variety of filters to perform clipping, cutting, and selection of data.

void vtkImplicitPlaneRepresentation::UpdatePlacement

(

void

)

Satisfies the superclass API. This will change the state of the widget to match changes that have been made to the underlying PolyDataSource

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetNormalProperty

(

)

[virtual]

Get the properties on the normal (line and cone).

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetSelectedNormalProperty

(

)

[virtual]

Get the properties on the normal (line and cone).

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetPlaneProperty

(

)

[virtual]

Get the plane properties. The properties of the plane when selected and unselected can be manipulated.

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetSelectedPlaneProperty

(

)

[virtual]

Get the plane properties. The properties of the plane when selected and unselected can be manipulated.

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetOutlineProperty

(

)

[virtual]

Get the property of the outline.

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetSelectedOutlineProperty

(

)

[virtual]

Get the property of the outline.

virtual vtkProperty* vtkImplicitPlaneRepresentation::GetEdgesProperty

(

)

[virtual]

Get the property of the intersection edges. (This property also applies to the edges when tubed.)

virtual int vtkImplicitPlaneRepresentation::ComputeInteractionState	(	int	X,
		int	Y,
		int	modify = 0
	)			[virtual]

Methods to interface with the vtkSliderWidget.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::PlaceWidget

(

double

bounds[6]

)

[virtual]

Methods to interface with the vtkSliderWidget.

virtual void vtkImplicitPlaneRepresentation::BuildRepresentation

(

)

[virtual]

Methods to interface with the vtkSliderWidget.

Implements vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::StartWidgetInteraction

(

double

eventPos[2]

)

[virtual]

Methods to interface with the vtkSliderWidget.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::WidgetInteraction

(

double

newEventPos[2]

)

[virtual]

Methods to interface with the vtkSliderWidget.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::EndWidgetInteraction

(

double

newEventPos[2]

)

[virtual]

Methods to interface with the vtkSliderWidget.

Reimplemented from vtkWidgetRepresentation.

virtual double* vtkImplicitPlaneRepresentation::GetBounds

(

)

[virtual]

Methods supporting the rendering process.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::GetActors

(

vtkPropCollection *

pc

)

[virtual]

Methods supporting the rendering process.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::ReleaseGraphicsResources

(

vtkWindow *

)

[virtual]

Methods supporting the rendering process.

Reimplemented from vtkWidgetRepresentation.

virtual int vtkImplicitPlaneRepresentation::RenderOpaqueGeometry

(

vtkViewport *

)

[virtual]

Methods supporting the rendering process.

Reimplemented from vtkProp.

virtual int vtkImplicitPlaneRepresentation::RenderTranslucentPolygonalGeometry

(

vtkViewport *

)

[virtual]

Methods supporting the rendering process.

Reimplemented from vtkProp.

virtual int vtkImplicitPlaneRepresentation::HasTranslucentPolygonalGeometry

(

)

[virtual]

Methods supporting the rendering process.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkImplicitPlaneRepresentation::SetInteractionState

(

int

)

[virtual]

The interaction state may be set from a widget (e.g., vtkImplicitPlaneWidget2) or other object. This controls how the interaction with the widget proceeds. Normally this method is used as part of a handshaking process with the widget: First ComputeInteractionState() is invoked that returns a state based on geometric considerations (i.e., cursor near a widget feature), then based on events, the widget may modify this further.

virtual void vtkImplicitPlaneRepresentation::SetRepresentationState

(

int

)

[virtual]

Sets the visual appearance of the representation based on the state it is in. This state is usually the same as InteractionState.

virtual int vtkImplicitPlaneRepresentation::GetRepresentationState

(

)

[virtual]

Sets the visual appearance of the representation based on the state it is in. This state is usually the same as InteractionState.

void vtkImplicitPlaneRepresentation::HighlightOutline

(

int

highlight

)

[protected]

void vtkImplicitPlaneRepresentation::HighlightPlane

(

int

highlight

)

[protected]

void vtkImplicitPlaneRepresentation::HighlightNormal

(

int

highlight

)

[protected]

void vtkImplicitPlaneRepresentation::ConstrainOrigin

(

double

x[3]

)

[protected]

void vtkImplicitPlaneRepresentation::Rotate	(	double	X,
		double	Y,
		double *	p1,
		double *	p2,
		double *	vpn
	)			[protected]

void vtkImplicitPlaneRepresentation::TranslatePlane	(	double *	p1,
		double *	p2
	)			[protected]

void vtkImplicitPlaneRepresentation::TranslateOutline	(	double *	p1,
		double *	p2
	)			[protected]

void vtkImplicitPlaneRepresentation::TranslateOrigin	(	double *	p1,
		double *	p2
	)			[protected]

void vtkImplicitPlaneRepresentation::Push	(	double *	p1,
		double *	p2
	)			[protected]

void vtkImplicitPlaneRepresentation::Scale	(	double *	p1,
		double *	p2,
		double	X,
		double	Y
	)			[protected]

void vtkImplicitPlaneRepresentation::SizeHandles

(

)

[protected]

void vtkImplicitPlaneRepresentation::CreateDefaultProperties

(

)

[protected]

void vtkImplicitPlaneRepresentation::GeneratePlane

(

)

[protected]

---

Member Data Documentation

int vtkImplicitPlaneRepresentation::RepresentationState [protected]

Definition at line 248 of file vtkImplicitPlaneRepresentation.h.

double vtkImplicitPlaneRepresentation::LastEventPosition[3] [protected]

Definition at line 251 of file vtkImplicitPlaneRepresentation.h.

int vtkImplicitPlaneRepresentation::NormalToXAxis [protected]

Definition at line 254 of file vtkImplicitPlaneRepresentation.h.

int vtkImplicitPlaneRepresentation::NormalToYAxis [protected]

Definition at line 255 of file vtkImplicitPlaneRepresentation.h.

int vtkImplicitPlaneRepresentation::NormalToZAxis [protected]

Definition at line 256 of file vtkImplicitPlaneRepresentation.h.

vtkPlane* vtkImplicitPlaneRepresentation::Plane [protected]

Definition at line 259 of file vtkImplicitPlaneRepresentation.h.

vtkImageData* vtkImplicitPlaneRepresentation::Box [protected]

Definition at line 262 of file vtkImplicitPlaneRepresentation.h.

vtkOutlineFilter* vtkImplicitPlaneRepresentation::Outline [protected]

Definition at line 263 of file vtkImplicitPlaneRepresentation.h.

vtkPolyDataMapper* vtkImplicitPlaneRepresentation::OutlineMapper [protected]

Definition at line 264 of file vtkImplicitPlaneRepresentation.h.

vtkActor* vtkImplicitPlaneRepresentation::OutlineActor [protected]

Definition at line 265 of file vtkImplicitPlaneRepresentation.h.

int vtkImplicitPlaneRepresentation::OutlineTranslation [protected]

Definition at line 267 of file vtkImplicitPlaneRepresentation.h.

int vtkImplicitPlaneRepresentation::ScaleEnabled [protected]

Definition at line 268 of file vtkImplicitPlaneRepresentation.h.

int vtkImplicitPlaneRepresentation::OutsideBounds [protected]

Definition at line 269 of file vtkImplicitPlaneRepresentation.h.

vtkCutter* vtkImplicitPlaneRepresentation::Cutter [protected]

Definition at line 272 of file vtkImplicitPlaneRepresentation.h.

vtkPolyDataMapper* vtkImplicitPlaneRepresentation::CutMapper [protected]

Definition at line 273 of file vtkImplicitPlaneRepresentation.h.

vtkActor* vtkImplicitPlaneRepresentation::CutActor [protected]

Definition at line 274 of file vtkImplicitPlaneRepresentation.h.

int vtkImplicitPlaneRepresentation::DrawPlane [protected]

Definition at line 275 of file vtkImplicitPlaneRepresentation.h.

vtkFeatureEdges* vtkImplicitPlaneRepresentation::Edges [protected]

Definition at line 279 of file vtkImplicitPlaneRepresentation.h.

vtkTubeFilter* vtkImplicitPlaneRepresentation::EdgesTuber [protected]

Definition at line 280 of file vtkImplicitPlaneRepresentation.h.

vtkPolyDataMapper* vtkImplicitPlaneRepresentation::EdgesMapper [protected]

Definition at line 281 of file vtkImplicitPlaneRepresentation.h.

vtkActor* vtkImplicitPlaneRepresentation::EdgesActor [protected]

Definition at line 282 of file vtkImplicitPlaneRepresentation.h.

int vtkImplicitPlaneRepresentation::Tubing [protected]

Definition at line 283 of file vtkImplicitPlaneRepresentation.h.

vtkConeSource* vtkImplicitPlaneRepresentation::ConeSource [protected]

Definition at line 286 of file vtkImplicitPlaneRepresentation.h.

vtkPolyDataMapper* vtkImplicitPlaneRepresentation::ConeMapper [protected]

Definition at line 287 of file vtkImplicitPlaneRepresentation.h.

vtkActor* vtkImplicitPlaneRepresentation::ConeActor [protected]

Definition at line 288 of file vtkImplicitPlaneRepresentation.h.

vtkLineSource* vtkImplicitPlaneRepresentation::LineSource [protected]

Definition at line 292 of file vtkImplicitPlaneRepresentation.h.

vtkPolyDataMapper* vtkImplicitPlaneRepresentation::LineMapper [protected]

Definition at line 293 of file vtkImplicitPlaneRepresentation.h.

vtkActor* vtkImplicitPlaneRepresentation::LineActor [protected]

Definition at line 294 of file vtkImplicitPlaneRepresentation.h.

vtkConeSource* vtkImplicitPlaneRepresentation::ConeSource2 [protected]

Definition at line 297 of file vtkImplicitPlaneRepresentation.h.

vtkPolyDataMapper* vtkImplicitPlaneRepresentation::ConeMapper2 [protected]

Definition at line 298 of file vtkImplicitPlaneRepresentation.h.

vtkActor* vtkImplicitPlaneRepresentation::ConeActor2 [protected]

Definition at line 299 of file vtkImplicitPlaneRepresentation.h.

vtkLineSource* vtkImplicitPlaneRepresentation::LineSource2 [protected]

Definition at line 302 of file vtkImplicitPlaneRepresentation.h.

vtkPolyDataMapper* vtkImplicitPlaneRepresentation::LineMapper2 [protected]

Definition at line 303 of file vtkImplicitPlaneRepresentation.h.

vtkActor* vtkImplicitPlaneRepresentation::LineActor2 [protected]

Definition at line 304 of file vtkImplicitPlaneRepresentation.h.

vtkSphereSource* vtkImplicitPlaneRepresentation::Sphere [protected]

Definition at line 307 of file vtkImplicitPlaneRepresentation.h.

vtkPolyDataMapper* vtkImplicitPlaneRepresentation::SphereMapper [protected]

Definition at line 308 of file vtkImplicitPlaneRepresentation.h.

vtkActor* vtkImplicitPlaneRepresentation::SphereActor [protected]

Definition at line 309 of file vtkImplicitPlaneRepresentation.h.

vtkCellPicker* vtkImplicitPlaneRepresentation::Picker [protected]

Definition at line 312 of file vtkImplicitPlaneRepresentation.h.

vtkTransform* vtkImplicitPlaneRepresentation::Transform [protected]

Definition at line 315 of file vtkImplicitPlaneRepresentation.h.

vtkProperty* vtkImplicitPlaneRepresentation::NormalProperty [protected]

Definition at line 329 of file vtkImplicitPlaneRepresentation.h.

vtkProperty* vtkImplicitPlaneRepresentation::SelectedNormalProperty [protected]

Definition at line 330 of file vtkImplicitPlaneRepresentation.h.

vtkProperty* vtkImplicitPlaneRepresentation::PlaneProperty [protected]

Definition at line 331 of file vtkImplicitPlaneRepresentation.h.

vtkProperty* vtkImplicitPlaneRepresentation::SelectedPlaneProperty [protected]

Definition at line 332 of file vtkImplicitPlaneRepresentation.h.

vtkProperty* vtkImplicitPlaneRepresentation::OutlineProperty [protected]

Definition at line 333 of file vtkImplicitPlaneRepresentation.h.

vtkProperty* vtkImplicitPlaneRepresentation::SelectedOutlineProperty [protected]

Definition at line 334 of file vtkImplicitPlaneRepresentation.h.

vtkProperty* vtkImplicitPlaneRepresentation::EdgesProperty [protected]

Definition at line 335 of file vtkImplicitPlaneRepresentation.h.

vtkBox* vtkImplicitPlaneRepresentation::BoundingBox [protected]

Definition at line 341 of file vtkImplicitPlaneRepresentation.h.

---

The documentation for this class was generated from the following file:

• dox/Widgets/vtkImplicitPlaneRepresentation.h
