vtkImplicitPlaneWidget2 Class Reference

#include <vtkImplicitPlaneWidget2.h>

Inheritance diagram for vtkImplicitPlaneWidget2:

Inheritance graph
[legend]

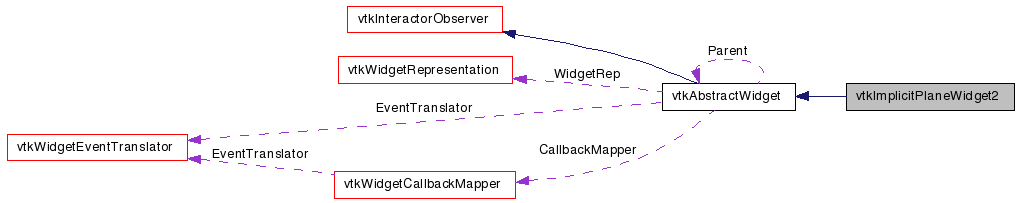

Collaboration diagram for vtkImplicitPlaneWidget2:

Collaboration graph
[legend]

List of all members.


Detailed Description

3D widget for manipulating an infinite plane

This 3D widget defines an infinite plane that can be interactively placed in a scene. The widget is assumed to consist of four parts: 1) a plane contained in a 2) bounding box, with a 3) plane normal, which is rooted at a 4) point on the plane. (The representation paired with this widget determines the actual geometry of the widget.)

To use this widget, you generally pair it with a vtkImplicitPlaneRepresentation (or a subclass). Variuos options are available for controlling how the representation appears, and how the widget functions.

Event Bindings:
By default, the widget responds to the following VTK events (i.e., it watches the vtkRenderWindowInteractor for these events):
 If the plane normal is selected:
   LeftButtonPressEvent - select normal
   LeftButtonReleaseEvent - release normal
   MouseMoveEvent - orient the normal vector
 If the origin point is selected:
   LeftButtonPressEvent - select slider (if on slider)
   LeftButtonReleaseEvent - release slider (if selected)
   MouseMoveEvent - move the origin point (constrained to the plane)
 If the plane is selected:
   LeftButtonPressEvent - select slider (if on slider)
   LeftButtonReleaseEvent - release slider (if selected)
   MouseMoveEvent - move the plane
 If the outline is selected:
   LeftButtonPressEvent - select slider (if on slider)
   LeftButtonReleaseEvent - release slider (if selected)
   MouseMoveEvent - move the outline
 In all the cases, independent of what is picked, the widget responds to the
 following VTK events:
   MiddleButtonPressEvent - move the plane
   MiddleButtonReleaseEvent - release the plane
   RightButtonPressEvent - scale the widget's representation
   RightButtonReleaseEvent - stop scaling the widget
   MouseMoveEvent - scale (if right button) or move (if middle button) the widget

Event Bindings:
Note that the event bindings described above can be changed using this class's vtkWidgetEventTranslator. This class translates VTK events into the vtkImplicitPlaneWidget2's widget events:
   vtkWidgetEvent::Select -- some part of the widget has been selected
   vtkWidgetEvent::EndSelect -- the selection process has completed
   vtkWidgetEvent::Move -- a request for slider motion has been invoked

Event Bindings:
In turn, when these widget events are processed, the vtkImplicitPlaneWidget2 invokes the following VTK events on itself (which observers can listen for):
   vtkCommand::StartInteractionEvent (on vtkWidgetEvent::Select)
   vtkCommand::EndInteractionEvent (on vtkWidgetEvent::EndSelect)
   vtkCommand::InteractionEvent (on vtkWidgetEvent::Move)

Warning:
Note that the widget can be picked even when it is "behind" other actors. This is an intended feature and not a bug.

This class, and vtkImplicitPlaneRepresentation, are next generation VTK widgets. An earlier version of this functionality was defined in the class vtkImplicitPlaneWidget.

See also:
vtk3DWidget vtkBoxWidget vtkPlaneWidget vtkLineWidget vtkPointWidget vtkSphereWidget vtkImagePlaneWidget
Events:
vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent
Tests:
vtkImplicitPlaneWidget2 (Tests)

Definition at line 105 of file vtkImplicitPlaneWidget2.h.

typedef vtkAbstractWidget Superclass
static int IsTypeOf (const char *type)
static vtkImplicitPlaneWidget2SafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Member Functions

void CreateDefaultRepresentation ()
void SetRepresentation (vtkImplicitPlaneRepresentation *r)
vtkImplicitPlaneRepresentationGetImplicitPlaneRepresentation ()

Static Public Member Functions

static vtkImplicitPlaneWidget2New ()

Protected Types

enum  _WidgetState { Start = 0, Active }

Protected Member Functions

 vtkImplicitPlaneWidget2 ()
 ~vtkImplicitPlaneWidget2 ()
int UpdateCursorShape (int interactionState)

Static Protected Member Functions

static void SelectAction (vtkAbstractWidget *)
static void TranslateAction (vtkAbstractWidget *)
static void ScaleAction (vtkAbstractWidget *)
static void EndSelectAction (vtkAbstractWidget *)
static void MoveAction (vtkAbstractWidget *)

Protected Attributes

int WidgetState

Member Typedef Documentation

Standard vtkObject methods

Reimplemented from vtkAbstractWidget.

Definition at line 113 of file vtkImplicitPlaneWidget2.h.


Member Enumeration Documentation

Enumerator:
Start
Active

Definition at line 140 of file vtkImplicitPlaneWidget2.h.


Constructor & Destructor Documentation

vtkImplicitPlaneWidget2::vtkImplicitPlaneWidget2 (  )  [protected]

vtkImplicitPlaneWidget2::~vtkImplicitPlaneWidget2 (  )  [protected]


Member Function Documentation

static vtkImplicitPlaneWidget2* vtkImplicitPlaneWidget2::New (  )  [static]

Instantiate the object.

Reimplemented from vtkObject.

virtual const char* vtkImplicitPlaneWidget2::GetClassName (  )  [virtual]

Standard vtkObject methods

Reimplemented from vtkAbstractWidget.

static int vtkImplicitPlaneWidget2::IsTypeOf ( const char *  type  )  [static]

Standard vtkObject methods

Reimplemented from vtkAbstractWidget.

virtual int vtkImplicitPlaneWidget2::IsA ( const char *  type  )  [virtual]

Standard vtkObject methods

Reimplemented from vtkAbstractWidget.

static vtkImplicitPlaneWidget2* vtkImplicitPlaneWidget2::SafeDownCast ( vtkObject o  )  [static]

Standard vtkObject methods

Reimplemented from vtkAbstractWidget.

void vtkImplicitPlaneWidget2::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard vtkObject methods

Reimplemented from vtkAbstractWidget.

void vtkImplicitPlaneWidget2::SetRepresentation ( vtkImplicitPlaneRepresentation r  )  [inline]

Specify an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp so it can be added to the renderer independent of the widget.

Definition at line 121 of file vtkImplicitPlaneWidget2.h.

vtkImplicitPlaneRepresentation* vtkImplicitPlaneWidget2::GetImplicitPlaneRepresentation (  )  [inline]

Return the representation as a vtkImplicitPlaneRepresentation.

Definition at line 127 of file vtkImplicitPlaneWidget2.h.

void vtkImplicitPlaneWidget2::CreateDefaultRepresentation (  )  [virtual]

Create the default widget representation if one is not set.

Implements vtkAbstractWidget.

static void vtkImplicitPlaneWidget2::SelectAction ( vtkAbstractWidget  )  [static, protected]

static void vtkImplicitPlaneWidget2::TranslateAction ( vtkAbstractWidget  )  [static, protected]

static void vtkImplicitPlaneWidget2::ScaleAction ( vtkAbstractWidget  )  [static, protected]

static void vtkImplicitPlaneWidget2::EndSelectAction ( vtkAbstractWidget  )  [static, protected]

static void vtkImplicitPlaneWidget2::MoveAction ( vtkAbstractWidget  )  [static, protected]

int vtkImplicitPlaneWidget2::UpdateCursorShape ( int  interactionState  )  [protected]

Update the cursor shape based on the interaction state. Returns 1 if the cursor shape requested is different from the existing one.


Member Data Documentation

Definition at line 139 of file vtkImplicitPlaneWidget2.h.


The documentation for this class was generated from the following file:
