vtkInteractorStyleSwitch Class Reference

#include <vtkInteractorStyleSwitch.h>

Inheritance diagram for vtkInteractorStyleSwitch:

[legend]

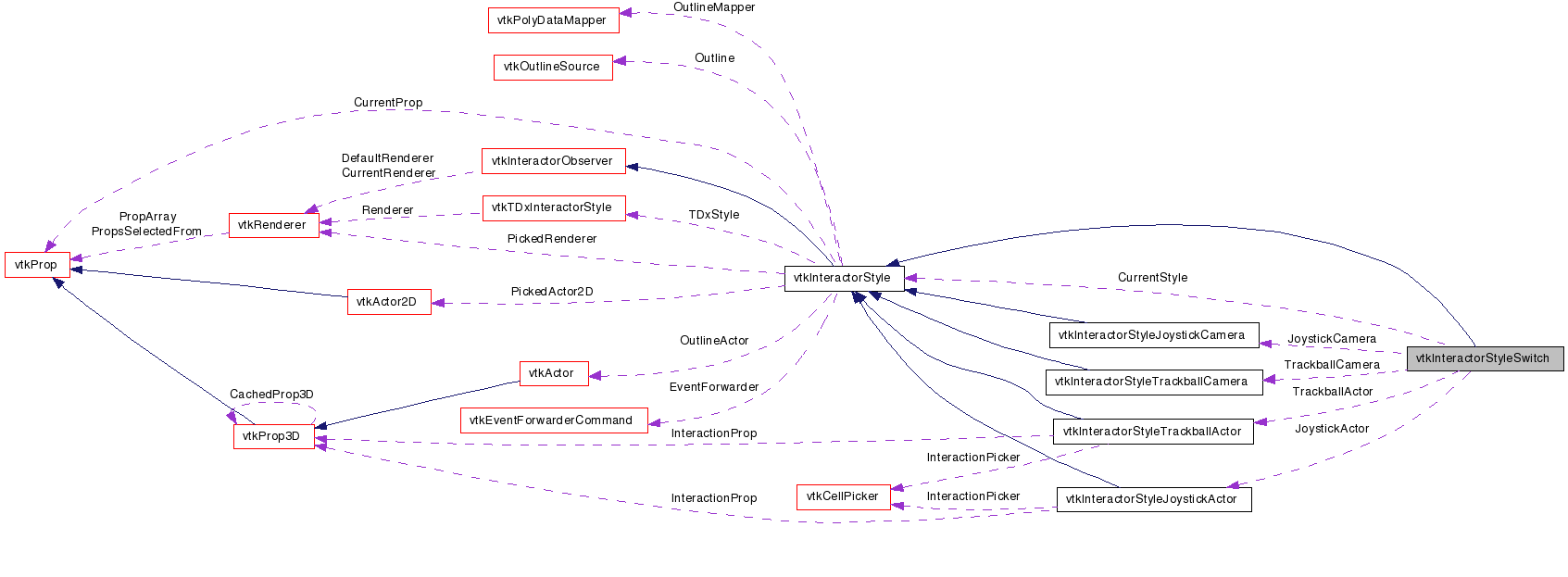

Collaboration diagram for vtkInteractorStyleSwitch:

[legend]

List of all members.

---

Detailed Description

class to swap between interactory styles

The class vtkInteractorStyleSwitch allows handles interactively switching between four interactor styles -- joystick actor, joystick camera, trackball actor, and trackball camera. Type 'j' or 't' to select joystick or trackball, and type 'c' or 'a' to select camera or actor. The default interactor style is joystick camera.

See also:

vtkInteractorStyleJoystickActor vtkInteractorStyleJoystickCamera vtkInteractorStyleTrackballActor vtkInteractorStyleTrackballCamera

Examples:

vtkInteractorStyleSwitch (Examples)

Tests:

vtkInteractorStyleSwitch (Tests)

Definition at line 50 of file vtkInteractorStyleSwitch.h.

Public Types
typedef vtkInteractorStyle	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetInteractor (vtkRenderWindowInteractor *iren)
void	SetAutoAdjustCameraClippingRange (int value)
virtual void	OnChar ()
virtual vtkInteractorStyle *	GetCurrentStyle ()
void	SetCurrentStyleToJoystickActor ()
void	SetCurrentStyleToJoystickCamera ()
void	SetCurrentStyleToTrackballActor ()
void	SetCurrentStyleToTrackballCamera ()
virtual void	SetDefaultRenderer (vtkRenderer *)
virtual void	SetCurrentRenderer (vtkRenderer *)
Static Public Member Functions
static vtkInteractorStyleSwitch *	New ()
static int	IsTypeOf (const char *type)
static vtkInteractorStyleSwitch *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkInteractorStyleSwitch ()
	~vtkInteractorStyleSwitch ()
void	SetCurrentStyle ()
Protected Attributes
vtkInteractorStyleJoystickActor *	JoystickActor
vtkInteractorStyleJoystickCamera *	JoystickCamera
vtkInteractorStyleTrackballActor *	TrackballActor
vtkInteractorStyleTrackballCamera *	TrackballCamera
vtkInteractorStyle *	CurrentStyle
int	JoystickOrTrackball
int	CameraOrActor

---

Member Typedef Documentation

typedef vtkInteractorStyle vtkInteractorStyleSwitch::Superclass

Reimplemented from vtkInteractorStyle.

Reimplemented in vtkInteractorStyleTrackball.

Definition at line 54 of file vtkInteractorStyleSwitch.h.

---

Constructor & Destructor Documentation

vtkInteractorStyleSwitch::vtkInteractorStyleSwitch

(

)

[protected]

vtkInteractorStyleSwitch::~vtkInteractorStyleSwitch

(

)

[protected]

---

Member Function Documentation

static vtkInteractorStyleSwitch* vtkInteractorStyleSwitch::New

(

)

[static]

This class must be supplied with a vtkRenderWindowInteractor wrapper or parent. This class should not normally be instantiated by application programmers.

Reimplemented from vtkInteractorStyle.

Reimplemented in vtkInteractorStyleTrackball.

virtual const char* vtkInteractorStyleSwitch::GetClassName

(

)

[virtual]

Reimplemented from vtkInteractorStyle.

Reimplemented in vtkInteractorStyleTrackball.

static int vtkInteractorStyleSwitch::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkInteractorStyle.

Reimplemented in vtkInteractorStyleTrackball.

virtual int vtkInteractorStyleSwitch::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkInteractorStyle.

Reimplemented in vtkInteractorStyleTrackball.

static vtkInteractorStyleSwitch* vtkInteractorStyleSwitch::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkInteractorStyle.

Reimplemented in vtkInteractorStyleTrackball.

void vtkInteractorStyleSwitch::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkInteractorStyle.

Reimplemented in vtkInteractorStyleTrackball.

void vtkInteractorStyleSwitch::SetInteractor

(

vtkRenderWindowInteractor *

iren

)

[virtual]

The sub styles need the interactor too.

Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleSwitch::SetAutoAdjustCameraClippingRange

(

int

value

)

[virtual]

We must override this method in order to pass the setting down to the underlying styles

Reimplemented from vtkInteractorStyle.

virtual vtkInteractorStyle* vtkInteractorStyleSwitch::GetCurrentStyle

(

)

[virtual]

Set/Get current style

void vtkInteractorStyleSwitch::SetCurrentStyleToJoystickActor

(

)

Set/Get current style

void vtkInteractorStyleSwitch::SetCurrentStyleToJoystickCamera

(

)

Set/Get current style

void vtkInteractorStyleSwitch::SetCurrentStyleToTrackballActor

(

)

Set/Get current style

void vtkInteractorStyleSwitch::SetCurrentStyleToTrackballCamera

(

)

Set/Get current style

virtual void vtkInteractorStyleSwitch::OnChar

(

)

[virtual]

Only care about the char event, which is used to switch between different styles.

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleSwitch::SetDefaultRenderer

(

vtkRenderer *

)

[virtual]

Overridden from vtkInteractorObserver because the interactor styles used by this class must also be updated.

Reimplemented from vtkInteractorObserver.

virtual void vtkInteractorStyleSwitch::SetCurrentRenderer

(

vtkRenderer *

)

[virtual]

Overridden from vtkInteractorObserver because the interactor styles used by this class must also be updated.

Reimplemented from vtkInteractorObserver.

void vtkInteractorStyleSwitch::SetCurrentStyle

(

)

[protected]

---

Member Data Documentation

vtkInteractorStyleJoystickActor* vtkInteractorStyleSwitch::JoystickActor [protected]

Definition at line 90 of file vtkInteractorStyleSwitch.h.

vtkInteractorStyleJoystickCamera* vtkInteractorStyleSwitch::JoystickCamera [protected]

Definition at line 91 of file vtkInteractorStyleSwitch.h.

vtkInteractorStyleTrackballActor* vtkInteractorStyleSwitch::TrackballActor [protected]

Definition at line 92 of file vtkInteractorStyleSwitch.h.

vtkInteractorStyleTrackballCamera* vtkInteractorStyleSwitch::TrackballCamera [protected]

Definition at line 93 of file vtkInteractorStyleSwitch.h.

vtkInteractorStyle* vtkInteractorStyleSwitch::CurrentStyle [protected]

Definition at line 94 of file vtkInteractorStyleSwitch.h.

int vtkInteractorStyleSwitch::JoystickOrTrackball [protected]

Definition at line 96 of file vtkInteractorStyleSwitch.h.

int vtkInteractorStyleSwitch::CameraOrActor [protected]

Definition at line 97 of file vtkInteractorStyleSwitch.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkInteractorStyleSwitch.h
