vtkMPASReader Class Reference

#include <vtkMPASReader.h>

Inheritance diagram for vtkMPASReader:

[legend]

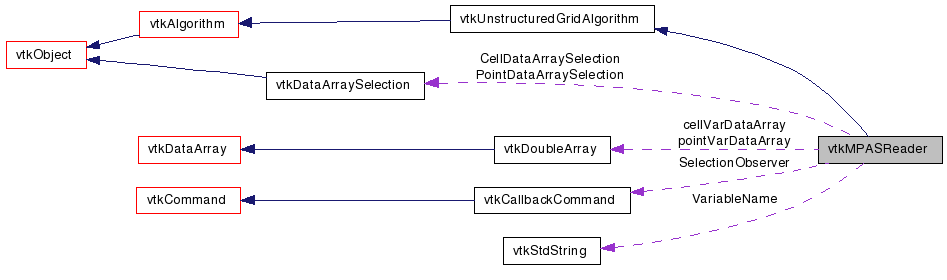

Collaboration diagram for vtkMPASReader:

[legend]

List of all members.

Detailed Description

Read an MPAS netCDF file.

This program reads an MPAS netCDF data file to allow paraview to display a dual-grid sphere or latlon projection. Also allows display of primal-grid sphere. The variables that have time dim are available to ParaView.

Assume all variables are of interest if they have dims (Time, nCells|nVertices, nVertLevels, [nTracers]) Assume no more than 100 vars each for cell and point data Does not deal with edge data.

When using this reader, it is important that you remember to do the following: 1. When changing a selected variable, remember to select it also in the drop down box to "color by". It doesn't color by that variable automatically. 2. When selecting multilayer sphere view, make layer thickness around 100,000. 3. When selecting multilayer lat/lon view, make layer thickness around 10. 4. Always click the -Z orientation after making a switch from lat/lon to sphere, from single to multilayer or changing thickness. 5. Be conservative on the number of changes you make before hitting Apply, since there may be bugs in this reader. Just make one change and then hit Apply.

Christine Ahrens (cahrens@lanl.gov) Version 1.3

Definition at line 91 of file vtkMPASReader.h.


Public Types
typedef vtkUnstructuredGridAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	GetNumberOfCellArrays ()
const char *	GetCellArrayName (int index)
int	GetCellArrayStatus (const char *name)
void	SetCellArrayStatus (const char *name, int status)
void	DisableAllCellArrays ()
void	EnableAllCellArrays ()
void	SetVerticalLevel (int level)
virtual int *	GetVerticalLevelRange ()
virtual void	GetVerticalLevelRange (int &, int &)
virtual void	GetVerticalLevelRange (int[2])
void	SetLayerThickness (int val)
virtual int *	GetLayerThicknessRange ()
virtual void	GetLayerThicknessRange (int &, int &)
virtual void	GetLayerThicknessRange (int[2])
void	SetCenterLon (int val)
virtual int *	GetCenterLonRange ()
virtual void	GetCenterLonRange (int &, int &)
virtual void	GetCenterLonRange (int[2])
void	SetProjectLatLon (bool val)
virtual bool	GetProjectLatLon ()
void	SetIsAtmosphere (bool val)
virtual bool	GetIsAtmosphere ()
void	SetIsZeroCentered (bool val)
virtual bool	GetIsZeroCentered ()
void	SetShowMultilayerView (bool val)
virtual bool	GetShowMultilayerView ()

virtual void	SetFileName (const char *)
virtual char *	GetFileName ()

virtual int	GetmaxCells ()

virtual int	GetmaxPoints ()

virtual int	GetnumCellVars ()
virtual int	GetnumPointVars ()

vtkUnstructuredGrid *	GetOutput ()
vtkUnstructuredGrid *	GetOutput (int index)

int	GetNumberOfPointArrays ()
const char *	GetPointArrayName (int index)
int	GetPointArrayStatus (const char *name)
void	SetPointArrayStatus (const char *name, int status)
void	DisableAllPointArrays ()
void	EnableAllPointArrays ()
Static Public Member Functions
static vtkMPASReader *	New ()
static int	IsTypeOf (const char *type)
static vtkMPASReader *	SafeDownCast (vtkObject *o)
static int	CanReadFile (const char *filename)
Protected Member Functions
	vtkMPASReader ()
	~vtkMPASReader ()
void	DestroyData ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
void	SetDefaults ()
int	GetNcDims ()
int	CheckParams ()
int	GetNcVars (const char cellDimName, const char pointDimName)
int	ReadAndOutputGrid (bool init)
int	ReadAndOutputVariableData ()
int	BuildVarArrays ()
int	AllocSphereGeometry ()
int	AllocLatLonGeometry ()
void	ShiftLonData ()
int	AddMirrorPoint (int index, double dividerX)
void	FixPoints ()
int	EliminateXWrap ()
void	OutputPoints (bool init)
void	OutputCells (bool init)
unsigned char	GetCellType ()
void	LoadGeometryData (int var, double dTime)
int	LoadPointVarData (int variable, double dTime)
int	LoadCellVarData (int variable, double dTime)
int	RegenerateGeometry ()
Static Protected Member Functions
static void	SelectionCallback (vtkObject caller, unsigned long eid, void clientdata, void *calldata)
Protected Attributes
char *	FileName
vtkStdString *	VariableName
int *	VariableType
int	NumberOfTimeSteps
double *	TimeSteps
double	dTime
vtkCallbackCommand *	SelectionObserver
bool	infoRequested
bool	dataRequested
vtkDataArraySelection *	PointDataArraySelection
vtkDataArraySelection *	CellDataArraySelection
vtkDoubleArray **	cellVarDataArray
vtkDoubleArray **	pointVarDataArray
int	VerticalLevelSelected
int	VerticalLevelRange [2]
int	LayerThickness
int	LayerThicknessRange [2]
int	CenterLon
int	CenterLonRange [2]
bool	ProjectLatLon
bool	IsAtmosphere
bool	IsZeroCentered
bool	ShowMultilayerView
bool	includeTopography
bool	doBugFix
double	centerRad
int	maxNVertLevels
int	numCells
int	numPoints
int	cellOffset
int	pointOffset
int	pointsPerCell
int	currentExtraPoint
int	currentExtraCell
double *	pointX
double *	pointY
double *	pointZ
int	modNumPoints
int	modNumCells
int *	origConnections
int *	modConnections
int *	cellMap
int *	pointMap
int *	maxLevelPoint
int	maxCells
int	maxPoints
int	verticalIndex
int	numCellVars
int	numPointVars
double *	pointVarData
double *	cellVarData

Member Typedef Documentation

typedef vtkUnstructuredGridAlgorithm vtkMPASReader::Superclass

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 95 of file vtkMPASReader.h.

Constructor & Destructor Documentation

vtkMPASReader::vtkMPASReader ( ) [protected]

vtkMPASReader::~vtkMPASReader ( ) [protected]

Member Function Documentation

static vtkMPASReader* vtkMPASReader::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual const char* vtkMPASReader::GetClassName ( ) [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkMPASReader::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkMPASReader::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkMPASReader* vtkMPASReader::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkMPASReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual void vtkMPASReader::SetFileName ( const char * ) [virtual]

Specify file name of MPAS data file to read.

virtual char* vtkMPASReader::GetFileName ( ) [virtual]

Specify file name of MPAS data file to read.

virtual int vtkMPASReader::GetmaxCells ( ) [virtual]

Get the number of data cells

virtual int vtkMPASReader::GetmaxPoints ( ) [virtual]

Get the number of points

virtual int vtkMPASReader::GetnumCellVars ( ) [virtual]

Get the number of data variables at the cell centers and points

virtual int vtkMPASReader::GetnumPointVars ( ) [virtual]

Get the number of data variables at the cell centers and points

vtkUnstructuredGrid* vtkMPASReader::GetOutput ( )

Get the reader's output

Reimplemented from vtkUnstructuredGridAlgorithm.

vtkUnstructuredGrid* vtkMPASReader::GetOutput ( int index )

Get the reader's output

Reimplemented from vtkUnstructuredGridAlgorithm.

int vtkMPASReader::GetNumberOfPointArrays ( )
