vtkOpenGLGlyph3DMapper Class Reference

#include <vtkOpenGLGlyph3DMapper.h>

Inheritance diagram for vtkOpenGLGlyph3DMapper:

[legend]

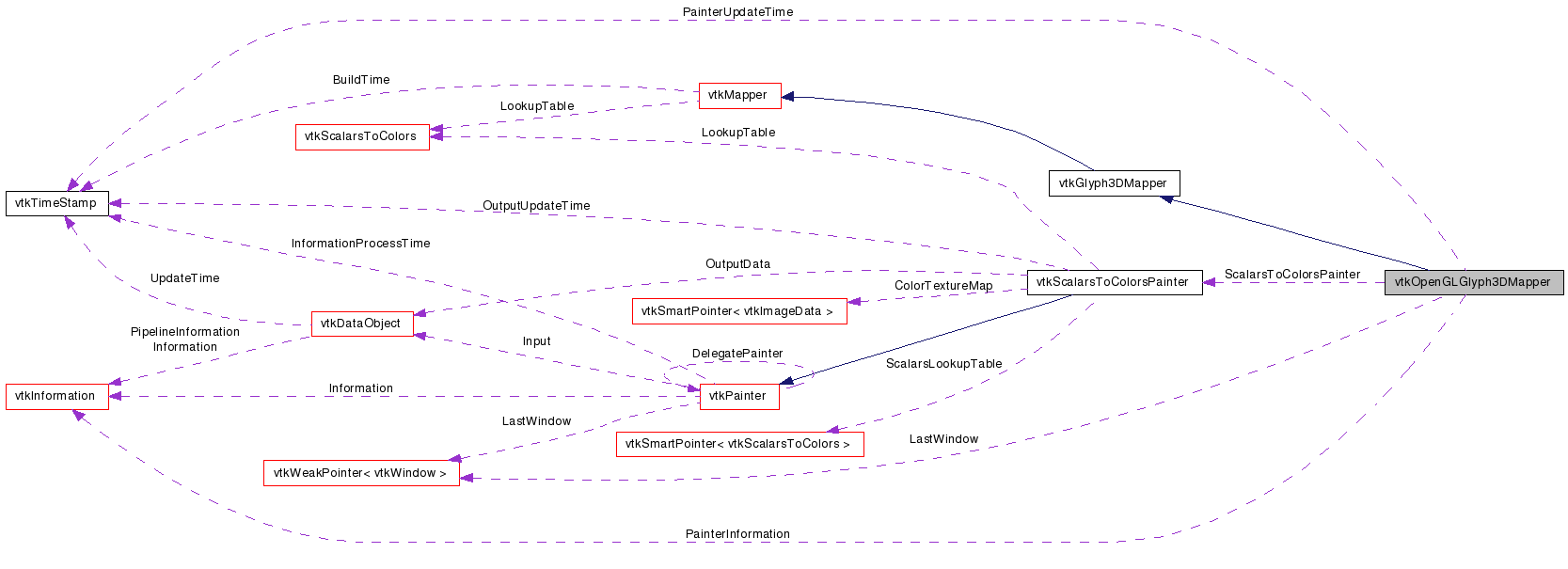

Collaboration diagram for vtkOpenGLGlyph3DMapper:

[legend]

List of all members.

Detailed Description

vtkOpenGLGlyph3D on the GPU.

Do the same job than vtkGlyph3D but on the GPU. For this reason, it is a mapper not a vtkPolyDataAlgorithm. Also, some methods of vtkOpenGLGlyph3D don't make sense in vtkOpenGLGlyph3DMapper: GeneratePointIds, old-style SetSource, PointIdsName, IsPointVisible.

See also:: vtkOpenGLGlyph3D

Definition at line 38 of file vtkOpenGLGlyph3DMapper.h.


Public Types
typedef vtkGlyph3DMapper	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	Render (vtkRenderer ren, vtkActor a)
virtual void	ReleaseGraphicsResources (vtkWindow *window)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static vtkOpenGLGlyph3DMapper *	New ()
static int	IsTypeOf (const char *type)
static vtkOpenGLGlyph3DMapper *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkOpenGLGlyph3DMapper ()
	~vtkOpenGLGlyph3DMapper ()
virtual void	ReportReferences (vtkGarbageCollector *collector)
void	CopyInformationToSubMapper (vtkPainterPolyDataMapper *mapper)
void	ReleaseList ()
virtual void	UpdatePainterInformation ()
Protected Attributes
vtkOpenGLGlyph3DMapperArray *	SourceMappers
vtkWeakPointer< vtkWindow >	LastWindow
unsigned int	DisplayListId
vtkScalarsToColorsPainter *	ScalarsToColorsPainter
vtkInformation *	PainterInformation
vtkTimeStamp	PainterUpdateTime

Member Typedef Documentation

typedef vtkGlyph3DMapper vtkOpenGLGlyph3DMapper::Superclass

Reimplemented from vtkGlyph3DMapper.

Definition at line 42 of file vtkOpenGLGlyph3DMapper.h.

Constructor & Destructor Documentation

vtkOpenGLGlyph3DMapper::vtkOpenGLGlyph3DMapper ( ) [protected]

vtkOpenGLGlyph3DMapper::~vtkOpenGLGlyph3DMapper ( ) [protected]

Member Function Documentation

static vtkOpenGLGlyph3DMapper* vtkOpenGLGlyph3DMapper::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkGlyph3DMapper.

virtual const char* vtkOpenGLGlyph3DMapper::GetClassName ( ) [virtual]

Reimplemented from vtkGlyph3DMapper.

static int vtkOpenGLGlyph3DMapper::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkGlyph3DMapper.

virtual int vtkOpenGLGlyph3DMapper::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkGlyph3DMapper.

static vtkOpenGLGlyph3DMapper* vtkOpenGLGlyph3DMapper::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkGlyph3DMapper.

virtual void vtkOpenGLGlyph3DMapper::Render	(	vtkRenderer *	ren,
		vtkActor *	a
	)			`[virtual]`

Method initiates the mapping process. Generally sent by the actor as each frame is rendered. Its behavior depends on the value of SelectMode.

Reimplemented from vtkGlyph3DMapper.

virtual void vtkOpenGLGlyph3DMapper::ReleaseGraphicsResources ( vtkWindow * window ) [virtual]

Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkMapper.

void vtkOpenGLGlyph3DMapper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkGlyph3DMapper.

virtual void vtkOpenGLGlyph3DMapper::ReportReferences ( vtkGarbageCollector * collector ) [protected, virtual]

Take part in garbage collection.

Reimplemented from vtkAlgorithm.

void vtkOpenGLGlyph3DMapper::CopyInformationToSubMapper ( vtkPainterPolyDataMapper * mapper ) [protected]

Send mapper ivars to sub-mapper.
