vtkPyramid Class Reference

#include <vtkPyramid.h>

Inheritance diagram for vtkPyramid:

Inheritance graph
[legend]

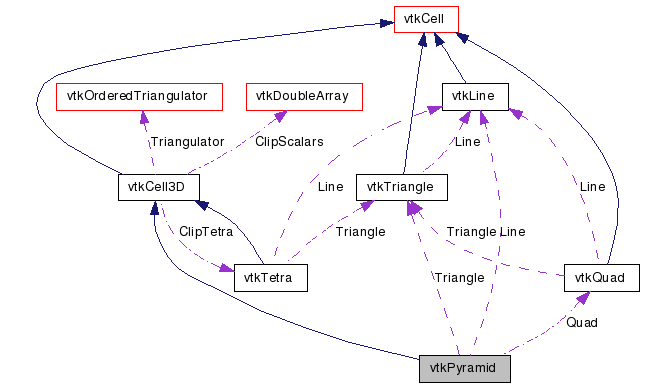

Collaboration diagram for vtkPyramid:

Collaboration graph
[legend]

List of all members.


Detailed Description

a 3D cell that represents a linear pyramid

vtkPyramid is a concrete implementation of vtkCell to represent a 3D pyramid. A pyramid consists of a rectangular base with four triangular faces. vtkPyramid uses the standard isoparametric shape functions for a linear pyramid. The pyramid is defined by the five points (0-4) where (0,1,2,3) is the base of the pyramid which, using the right hand rule, forms a quadrilaterial whose normal points in the direction of the pyramid apex at vertex #4.

See also:
vtkConvexPointSet vtkHexahedron vtkTetra vtkVoxel vtkWedge
Examples:
vtkPyramid (Examples)
Tests:
vtkPyramid (Tests)

Definition at line 47 of file vtkPyramid.h.

static void InterpolationFunctions (double pcoords[3], double weights[5])
static void InterpolationDerivs (double pcoords[3], double derivs[15])
virtual void InterpolateFunctions (double pcoords[3], double weights[5])
virtual void InterpolateDerivs (double pcoords[3], double derivs[15])

Public Types

typedef vtkCell3D Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int GetParametricCenter (double pcoords[3])
int JacobianInverse (double pcoords[3], double **inverse, double derivs[15])
virtual void GetEdgePoints (int edgeId, int *&pts)
virtual void GetFacePoints (int faceId, int *&pts)
int GetCellType ()
int GetCellDimension ()
int GetNumberOfEdges ()
int GetNumberOfFaces ()
vtkCellGetEdge (int edgeId)
vtkCellGetFace (int faceId)
int CellBoundary (int subId, double pcoords[3], vtkIdList *pts)
void Contour (double value, vtkDataArray *cellScalars, vtkIncrementalPointLocator *locator, vtkCellArray *verts, vtkCellArray *lines, vtkCellArray *polys, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd)
int EvaluatePosition (double x[3], double *closestPoint, int &subId, double pcoords[3], double &dist2, double *weights)
void EvaluateLocation (int &subId, double pcoords[3], double x[3], double *weights)
int IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)
int Triangulate (int index, vtkIdList *ptIds, vtkPoints *pts)
void Derivatives (int subId, double pcoords[3], double *values, int dim, double *derivs)
virtual double * GetParametricCoords ()

Static Public Member Functions

static vtkPyramidNew ()
static int IsTypeOf (const char *type)
static vtkPyramidSafeDownCast (vtkObject *o)
static int * GetEdgeArray (int edgeId)
static int * GetFaceArray (int faceId)

Protected Member Functions

 vtkPyramid ()
 ~vtkPyramid ()

Protected Attributes

vtkLineLine
vtkTriangleTriangle
vtkQuadQuad

Member Typedef Documentation

Reimplemented from vtkCell3D.

Definition at line 51 of file vtkPyramid.h.


Constructor & Destructor Documentation

vtkPyramid::vtkPyramid (  )  [protected]

vtkPyramid::~vtkPyramid (  )  [protected]


Member Function Documentation

static vtkPyramid* vtkPyramid::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkPyramid::GetClassName (  )  [virtual]

Reimplemented from vtkCell3D.

static int vtkPyramid::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell3D.

virtual int vtkPyramid::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell3D.

static vtkPyramid* vtkPyramid::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkCell3D.

void vtkPyramid::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCell3D.

virtual void vtkPyramid::GetEdgePoints ( int  edgeId,
int *&  pts
) [virtual]

See vtkCell3D API for description of these methods.

Implements vtkCell3D.

virtual void vtkPyramid::GetFacePoints ( int  faceId,
int *&  pts
) [virtual]

See vtkCell3D API for description of these methods.

Implements vtkCell3D.

int vtkPyramid::GetCellType (  )  [inline, virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

Definition at line 62 of file vtkPyramid.h.

int vtkPyramid::GetCellDimension (  )  [inline, virtual]

See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell3D.

Definition at line 63 of file vtkPyramid.h.

int vtkPyramid::GetNumberOfEdges (  )  [inline, virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

Definition at line 64 of file vtkPyramid.h.

int vtkPyramid::GetNumberOfFaces (  )  [inline, virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

Definition at line 65 of file vtkPyramid.h.

vtkCell* vtkPyramid::GetEdge ( int  edgeId  )  [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

vtkCell* vtkPyramid::GetFace ( int  faceId  )  [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

int vtkPyramid::CellBoundary ( int  subId,
double  pcoords[3],
vtkIdList pts
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

void vtkPyramid::Contour ( double  value,
vtkDataArray cellScalars,
vtkIncrementalPointLocator locator,
vtkCellArray verts,
vtkCellArray lines,
vtkCellArray polys,
vtkPointData inPd,
vtkPointData outPd,
vtkCellData inCd,
vtkIdType  cellId,
vtkCellData outCd
) [virtual]

See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell3D.

int vtkPyramid::EvaluatePosition ( double  x[3],
double *  closestPoint,
int &  subId,
double  pcoords[3],
double &  dist2,
double *  weights
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

void vtkPyramid::EvaluateLocation ( int &  subId,
double  pcoords[3],
double  x[3],
double *  weights
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

int vtkPyramid::IntersectWithLine ( double  p1[3],
double  p2[3],
double  tol,
double &  t,
double  x[3],
double  pcoords[3],
int &  subId
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

int vtkPyramid::Triangulate ( int  index,
vtkIdList ptIds,
vtkPoints pts
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

void vtkPyramid::Derivatives ( int  subId,
double  pcoords[3],
double *  values,
int  dim,
double *  derivs
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

virtual double* vtkPyramid::GetParametricCoords (  )  [virtual]

See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkPyramid::GetParametricCenter ( double  pcoords[3]  )  [inline, virtual]

Return the center of the pyramid in parametric coordinates.

Reimplemented from vtkCell.

Definition at line 133 of file vtkPyramid.h.

static void vtkPyramid::InterpolationFunctions ( double  pcoords[3],
double  weights[5]
) [static]

static void vtkPyramid::InterpolationDerivs ( double  pcoords[3],
double  derivs[15]
) [static]

virtual void vtkPyramid::InterpolateFunctions ( double  pcoords[3],
double  weights[5]
) [inline, virtual]

Deprecated:
Replaced by vtkPyramid::InterpolateFunctions as of VTK 5.2

Definition at line 100 of file vtkPyramid.h.

virtual void vtkPyramid::InterpolateDerivs ( double  pcoords[3],
double  derivs[15]
) [inline, virtual]

Deprecated:
Replaced by vtkPyramid::InterpolateFunctions as of VTK 5.2

Definition at line 104 of file vtkPyramid.h.

int vtkPyramid::JacobianInverse ( double  pcoords[3],
double **  inverse,
double  derivs[15]
)

static int* vtkPyramid::GetEdgeArray ( int  edgeId  )  [static]

Return the ids of the vertices defining edge/face (`edgeId`/`faceId'). Ids are related to the cell, not to the dataset.

static int* vtkPyramid::GetFaceArray ( int  faceId  )  [static]

Return the ids of the vertices defining edge/face (`edgeId`/`faceId'). Ids are related to the cell, not to the dataset.


Member Data Documentation

vtkLine* vtkPyramid::Line [protected]

Definition at line 123 of file vtkPyramid.h.

Definition at line 124 of file vtkPyramid.h.

vtkQuad* vtkPyramid::Quad [protected]

Definition at line 125 of file vtkPyramid.h.


The documentation for this class was generated from the following file:
