vtkWedge Class Reference

#include <vtkWedge.h>

Inheritance diagram for vtkWedge:

Inheritance graph
[legend]

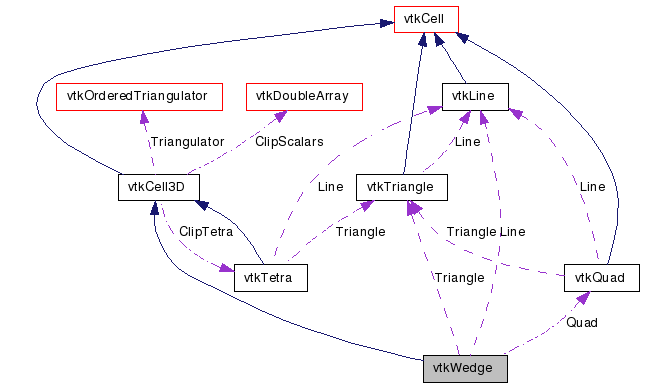

Collaboration diagram for vtkWedge:

Collaboration graph
[legend]

List of all members.


Detailed Description

a 3D cell that represents a linear wedge

vtkWedge is a concrete implementation of vtkCell to represent a linear 3D wedge. A wedge consists of two triangular and three quadrilateral faces and is defined by the six points (0-5). vtkWedge uses the standard isoparametric shape functions for a linear wedge. The wedge is defined by the six points (0-5) where (0,1,2) is the base of the wedge which, using the right hand rule, forms a triangle whose normal points outward (away from the triangular face (3,4,5)).

See also:
vtkConvexPointSet vtkHexahedron vtkPyramid vtkTetra vtkVoxel
Examples:
vtkWedge (Examples)
Tests:
vtkWedge (Tests)

Definition at line 47 of file vtkWedge.h.

static void InterpolationFunctions (double pcoords[3], double weights[6])
static void InterpolationDerivs (double pcoords[3], double derivs[18])
virtual void InterpolateFunctions (double pcoords[3], double weights[6])
virtual void InterpolateDerivs (double pcoords[3], double derivs[18])
int JacobianInverse (double pcoords[3], double **inverse, double derivs[18])

Public Types

typedef vtkCell3D Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int GetParametricCenter (double pcoords[3])
virtual void GetEdgePoints (int edgeId, int *&pts)
virtual void GetFacePoints (int faceId, int *&pts)
int GetCellType ()
int GetCellDimension ()
int GetNumberOfEdges ()
int GetNumberOfFaces ()
vtkCellGetEdge (int edgeId)
vtkCellGetFace (int faceId)
int CellBoundary (int subId, double pcoords[3], vtkIdList *pts)
void Contour (double value, vtkDataArray *cellScalars, vtkIncrementalPointLocator *locator, vtkCellArray *verts, vtkCellArray *lines, vtkCellArray *polys, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd)
int EvaluatePosition (double x[3], double *closestPoint, int &subId, double pcoords[3], double &dist2, double *weights)
void EvaluateLocation (int &subId, double pcoords[3], double x[3], double *weights)
int IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)
int Triangulate (int index, vtkIdList *ptIds, vtkPoints *pts)
void Derivatives (int subId, double pcoords[3], double *values, int dim, double *derivs)
virtual double * GetParametricCoords ()

Static Public Member Functions

static vtkWedgeNew ()
static int IsTypeOf (const char *type)
static vtkWedgeSafeDownCast (vtkObject *o)
static int * GetEdgeArray (int edgeId)
static int * GetFaceArray (int faceId)

Protected Member Functions

 vtkWedge ()
 ~vtkWedge ()

Protected Attributes

vtkLineLine
vtkTriangleTriangle
vtkQuadQuad

Member Typedef Documentation

Reimplemented from vtkCell3D.

Definition at line 51 of file vtkWedge.h.


Constructor & Destructor Documentation

vtkWedge::vtkWedge (  )  [protected]

vtkWedge::~vtkWedge (  )  [protected]


Member Function Documentation

static vtkWedge* vtkWedge::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkWedge::GetClassName (  )  [virtual]

Reimplemented from vtkCell3D.

static int vtkWedge::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell3D.

virtual int vtkWedge::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell3D.

static vtkWedge* vtkWedge::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkCell3D.

void vtkWedge::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCell3D.

virtual void vtkWedge::GetEdgePoints ( int  edgeId,
int *&  pts
) [virtual]

See vtkCell3D API for description of these methods.

Implements vtkCell3D.

virtual void vtkWedge::GetFacePoints ( int  faceId,
int *&  pts
) [virtual]

See vtkCell3D API for description of these methods.

Implements vtkCell3D.

int vtkWedge::GetCellType (  )  [inline, virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

Definition at line 62 of file vtkWedge.h.

int vtkWedge::GetCellDimension (  )  [inline, virtual]

See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell3D.

Definition at line 63 of file vtkWedge.h.

int vtkWedge::GetNumberOfEdges (  )  [inline, virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

Definition at line 64 of file vtkWedge.h.

int vtkWedge::GetNumberOfFaces (  )  [inline, virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

Definition at line 65 of file vtkWedge.h.

vtkCell* vtkWedge::GetEdge ( int  edgeId  )  [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

vtkCell* vtkWedge::GetFace ( int  faceId  )  [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

int vtkWedge::CellBoundary ( int  subId,
double  pcoords[3],
vtkIdList pts
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

void vtkWedge::Contour ( double  value,
vtkDataArray cellScalars,
vtkIncrementalPointLocator locator,
vtkCellArray verts,
vtkCellArray lines,
vtkCellArray polys,
vtkPointData inPd,
vtkPointData outPd,
vtkCellData inCd,
vtkIdType  cellId,
vtkCellData outCd
) [virtual]

See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell3D.

int vtkWedge::EvaluatePosition ( double  x[3],
double *  closestPoint,
int &  subId,
double  pcoords[3],
double &  dist2,
double *  weights
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

void vtkWedge::EvaluateLocation ( int &  subId,
double  pcoords[3],
double  x[3],
double *  weights
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

int vtkWedge::IntersectWithLine ( double  p1[3],
double  p2[3],
double  tol,
double &  t,
double  x[3],
double  pcoords[3],
int &  subId
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

int vtkWedge::Triangulate ( int  index,
vtkIdList ptIds,
vtkPoints pts
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

void vtkWedge::Derivatives ( int  subId,
double  pcoords[3],
double *  values,
int  dim,
double *  derivs
) [virtual]

See the vtkCell API for descriptions of these methods.

Implements vtkCell.

virtual double* vtkWedge::GetParametricCoords (  )  [virtual]

See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkWedge::GetParametricCenter ( double  pcoords[3]  )  [inline, virtual]

Return the center of the wedge in parametric coordinates.

Reimplemented from vtkCell.

Definition at line 130 of file vtkWedge.h.

static void vtkWedge::InterpolationFunctions ( double  pcoords[3],
double  weights[6]
) [static]

Deprecated:
Replaced by vtkWedge::InterpolateFunctions as of VTK 5.2

static void vtkWedge::InterpolationDerivs ( double  pcoords[3],
double  derivs[18]
) [static]

Deprecated:
Replaced by vtkWedge::InterpolateFunctions as of VTK 5.2

virtual void vtkWedge::InterpolateFunctions ( double  pcoords[3],
double  weights[6]
) [inline, virtual]

Deprecated:
Replaced by vtkWedge::InterpolateFunctions as of VTK 5.2

Definition at line 99 of file vtkWedge.h.

virtual void vtkWedge::InterpolateDerivs ( double  pcoords[3],
double  derivs[18]
) [inline, virtual]

Deprecated:
Replaced by vtkWedge::InterpolateFunctions as of VTK 5.2

Definition at line 103 of file vtkWedge.h.

int vtkWedge::JacobianInverse ( double  pcoords[3],
double **  inverse,
double  derivs[18]
)

Deprecated:
Replaced by vtkWedge::InterpolateFunctions as of VTK 5.2

static int* vtkWedge::GetEdgeArray ( int  edgeId  )  [static]

Return the ids of the vertices defining edge/face (`edgeId`/`faceId'). Ids are related to the cell, not to the dataset.

static int* vtkWedge::GetFaceArray ( int  faceId  )  [static]

Return the ids of the vertices defining edge/face (`edgeId`/`faceId'). Ids are related to the cell, not to the dataset.


Member Data Documentation

vtkLine* vtkWedge::Line [protected]

Definition at line 121 of file vtkWedge.h.

Definition at line 122 of file vtkWedge.h.

vtkQuad* vtkWedge::Quad [protected]

Definition at line 123 of file vtkWedge.h.


The documentation for this class was generated from the following file:
