vtkQuadraticWedge Class Reference

#include <vtkQuadraticWedge.h>

Inheritance diagram for vtkQuadraticWedge:

[legend]

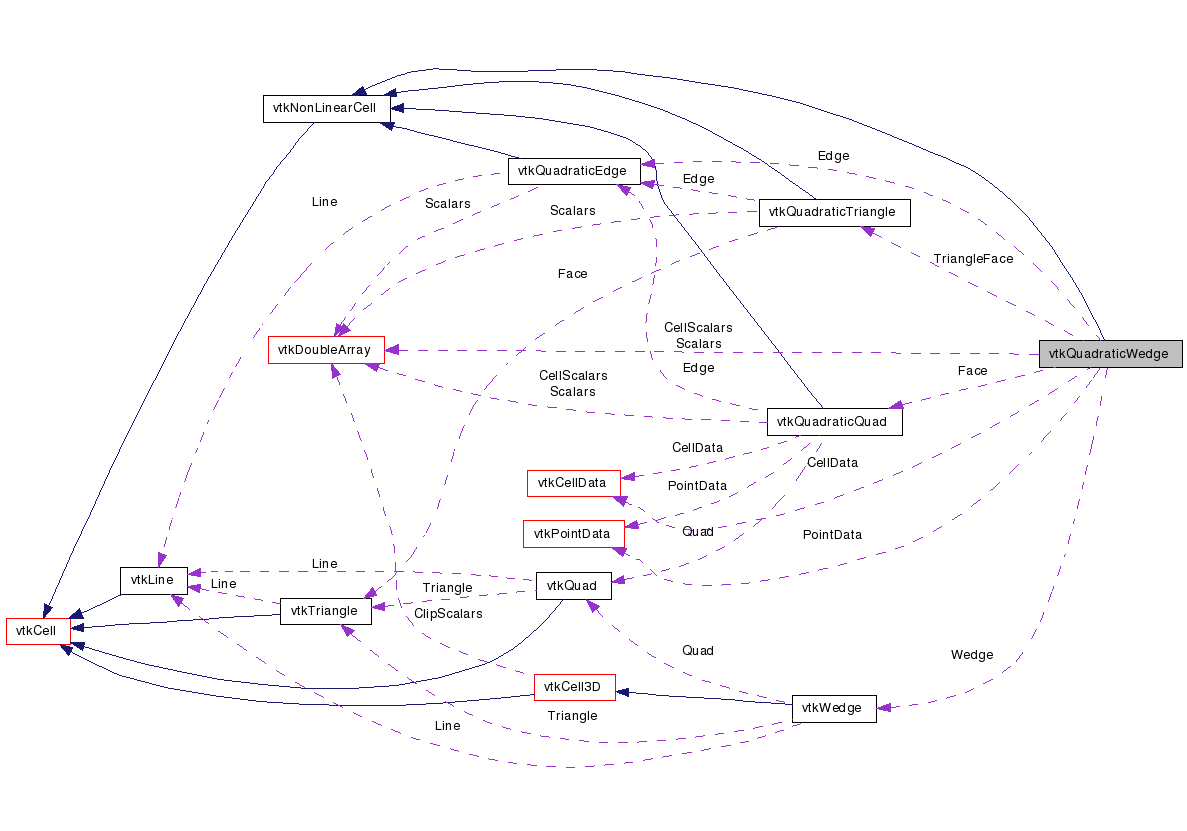

Collaboration diagram for vtkQuadraticWedge:

[legend]

List of all members.

Detailed Description

cell represents a parabolic, 15-node isoparametric wedge

vtkQuadraticWedge is a concrete implementation of vtkNonLinearCell to represent a three-dimensional, 15-node isoparametric parabolic wedge. The interpolation is the standard finite element, quadratic isoparametric shape function. The cell includes a mid-edge node. The ordering of the fifteen points defining the cell is point ids (0-5,6-14) where point ids 0-5 are the six corner vertices of the wedge; followed by nine midedge nodes (6-14). Note that these midedge nodes correspond lie on the edges defined by (0,1), (1,2), (2,0), (3,4), (4,5), (5,3), (0,3), (1,4), (2,5).

See also:: vtkQuadraticEdge vtkQuadraticTriangle vtkQuadraticTetra vtkQuadraticHexahedron vtkQuadraticQuad vtkQuadraticPyramid

Tests:: vtkQuadraticWedge (Tests)

Definition at line 47 of file vtkQuadraticWedge.h.


static void	InterpolationFunctions (double pcoords[3], double weights[15])
static void	InterpolationDerivs (double pcoords[3], double derivs[45])
static int *	GetEdgeArray (int edgeId)
static int *	GetFaceArray (int faceId)
virtual void	InterpolateFunctions (double pcoords[3], double weights[15])
virtual void	InterpolateDerivs (double pcoords[3], double derivs[45])
Public Types
typedef vtkNonLinearCell	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	CellBoundary (int subId, double pcoords[3], vtkIdList *pts)
void	Contour (double value, vtkDataArray cellScalars, vtkIncrementalPointLocator locator, vtkCellArray verts, vtkCellArray lines, vtkCellArray polys, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd)
int	EvaluatePosition (double x[3], double closestPoint, int &subId, double pcoords[3], double &dist2, double weights)
void	EvaluateLocation (int &subId, double pcoords[3], double x[3], double *weights)
int	Triangulate (int index, vtkIdList ptIds, vtkPoints pts)
void	Derivatives (int subId, double pcoords[3], double values, int dim, double derivs)
virtual double *	GetParametricCoords ()
int	GetParametricCenter (double pcoords[3])
void	JacobianInverse (double pcoords[3], double **inverse, double derivs[45])

int	GetCellType ()
int	GetCellDimension ()
int	GetNumberOfEdges ()
int	GetNumberOfFaces ()
vtkCell *	GetEdge (int edgeId)
vtkCell *	GetFace (int faceId)

void	Clip (double value, vtkDataArray cellScalars, vtkIncrementalPointLocator locator, vtkCellArray tetras, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut)

int	IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)
Static Public Member Functions
static vtkQuadraticWedge *	New ()
static int	IsTypeOf (const char *type)
static vtkQuadraticWedge *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkQuadraticWedge ()
	~vtkQuadraticWedge ()
void	Subdivide (vtkPointData inPd, vtkCellData inCd, vtkIdType cellId, vtkDataArray *cellScalars)
Protected Attributes
vtkQuadraticEdge *	Edge
vtkQuadraticTriangle *	TriangleFace
vtkQuadraticQuad *	Face
vtkWedge *	Wedge
vtkPointData *	PointData
vtkCellData *	CellData
vtkDoubleArray *	CellScalars
vtkDoubleArray *	Scalars

Member Typedef Documentation

typedef vtkNonLinearCell vtkQuadraticWedge::Superclass

Reimplemented from vtkNonLinearCell.

Definition at line 51 of file vtkQuadraticWedge.h.

Constructor & Destructor Documentation

vtkQuadraticWedge::vtkQuadraticWedge ( ) [protected]

vtkQuadraticWedge::~vtkQuadraticWedge ( ) [protected]

Member Function Documentation

static vtkQuadraticWedge* vtkQuadraticWedge::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkQuadraticWedge::GetClassName ( ) [virtual]

Reimplemented from vtkNonLinearCell.

static int vtkQuadraticWedge::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkNonLinearCell.

virtual int vtkQuadraticWedge::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkNonLinearCell.

static vtkQuadraticWedge* vtkQuadraticWedge::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkNonLinearCell.

void vtkQuadraticWedge::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkNonLinearCell.

int vtkQuadraticWedge::GetCellType ( ) [inline, virtual]
