vtkSelectEnclosedPoints Class Reference

#include <vtkSelectEnclosedPoints.h>

Inheritance diagram for vtkSelectEnclosedPoints:

[legend]

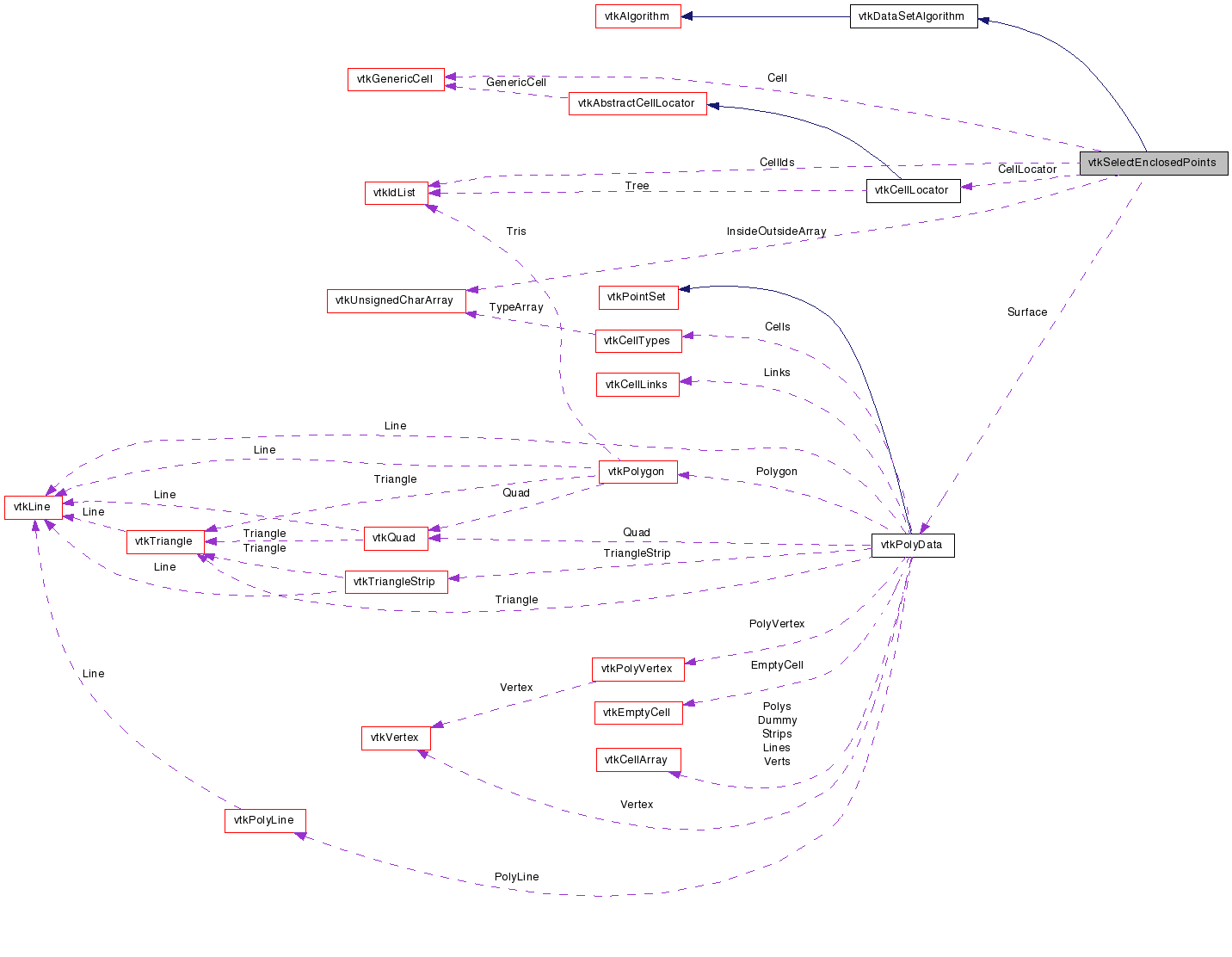

Collaboration diagram for vtkSelectEnclosedPoints:

[legend]

List of all members.

Detailed Description

mark points as to whether they are inside a closed surface

vtkSelectEnclosedPoints is a filter that evaluates all the input points to determine whether they are in an enclosed surface. The filter produces a (0,1) mask (in the form of a vtkDataArray) that indicates whether points are outside (mask value=0) or inside (mask value=1) a provided surface. (The name of the output vtkDataArray is "SelectedPointsArray".)

After running the filter, it is possible to query it as to whether a point is inside/outside by invoking the IsInside(ptId) method.

Warning:: The filter assumes that the surface is closed and manifold. A boolean flag can be set to force the filter to first check whether this is true. If false, all points will be marked outside. Note that if this check is not performed and the surface is not closed, the results are undefined.
This filter produces and output data array, but does not modify the input dataset. If you wish to extract cells or poinrs, various threshold filters are available (i.e., threshold the output array).

See also:: vtkMaskPoints

Tests:: vtkSelectEnclosedPoints (Tests)

Definition at line 56 of file vtkSelectEnclosedPoints.h.


typedef vtkDataSetAlgorithm	Superclass
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
static int	IsTypeOf (const char *type)
static vtkSelectEnclosedPoints *	SafeDownCast (vtkObject *o)
Public Member Functions
int	IsInside (vtkIdType inputPtId)

void	SetSurface (vtkPolyData *pd)
void	SetSurfaceConnection (vtkAlgorithmOutput *algOutput)

vtkPolyData *	GetSurface ()
vtkPolyData *	GetSurface (vtkInformationVector *sourceInfo)

virtual void	SetInsideOut (int)
virtual void	InsideOutOn ()
virtual void	InsideOutOff ()
virtual int	GetInsideOut ()

virtual void	SetCheckSurface (int)
virtual void	CheckSurfaceOn ()
virtual void	CheckSurfaceOff ()
virtual int	GetCheckSurface ()

virtual void	SetTolerance (double)
virtual double	GetTolerance ()

void	Initialize (vtkPolyData *surface)
int	IsInsideSurface (double x, double y, double z)
int	IsInsideSurface (double x[3])
void	Complete ()
Static Public Member Functions
static vtkSelectEnclosedPoints *	New ()
Protected Member Functions
	vtkSelectEnclosedPoints ()
	~vtkSelectEnclosedPoints ()
int	IsSurfaceClosed (vtkPolyData *surface)
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	FillInputPortInformation (int, vtkInformation *)
virtual void	ReportReferences (vtkGarbageCollector *)
Protected Attributes
int	CheckSurface
int	InsideOut
double	Tolerance
vtkUnsignedCharArray *	InsideOutsideArray
vtkCellLocator *	CellLocator
vtkIdList *	CellIds
vtkGenericCell *	Cell
vtkPolyData *	Surface
double	Bounds [6]
double	Length

Member Typedef Documentation

typedef vtkDataSetAlgorithm vtkSelectEnclosedPoints::Superclass

Standard methods for type information and printing.

Reimplemented from vtkDataSetAlgorithm.

Definition at line 61 of file vtkSelectEnclosedPoints.h.

Constructor & Destructor Documentation

vtkSelectEnclosedPoints::vtkSelectEnclosedPoints ( ) [protected]

vtkSelectEnclosedPoints::~vtkSelectEnclosedPoints ( ) [protected]

Member Function Documentation

virtual const char* vtkSelectEnclosedPoints::GetClassName ( ) [virtual]

Standard methods for type information and printing.

Reimplemented from vtkDataSetAlgorithm.

static int vtkSelectEnclosedPoints::IsTypeOf ( const char * type ) [static]

Standard methods for type information and printing.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkSelectEnclosedPoints::IsA ( const char * type ) [virtual]

Standard methods for type information and printing.

Reimplemented from vtkDataSetAlgorithm.

static vtkSelectEnclosedPoints* vtkSelectEnclosedPoints::SafeDownCast ( vtkObject * o ) [static]

Standard methods for type information and printing.

Reimplemented from vtkDataSetAlgorithm.

void vtkSelectEnclosedPoints::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Standard methods for type information and printing.

Reimplemented from vtkDataSetAlgorithm.

static vtkSelectEnclosedPoints* vtkSelectEnclosedPoints::New ( ) [static]

Instantiate this class.

Reimplemented from vtkDataSetAlgorithm.

void vtkSelectEnclosedPoints::SetSurface ( vtkPolyData * pd )

Set the surface to be used to test for containment. Two methods are provided: one directly for vtkPolyData, and one for the output of a filter.

void vtkSelectEnclosedPoints::SetSurfaceConnection ( vtkAlgorithmOutput * algOutput )

Set the surface to be used to test for containment. Two methods are provided: one directly for vtkPolyData, and one for the output of a filter.

vtkPolyData* vtkSelectEnclosedPoints::GetSurface ( )

Return a pointer to the enclosing surface.

vtkPolyData* vtkSelectEnclosedPoints::GetSurface ( vtkInformationVector * sourceInfo )

Return a pointer to the enclosing surface.

virtual void vtkSelectEnclosedPoints::SetInsideOut ( int ) [virtual]

By default, points inside the surface are marked inside or sent to the output. If InsideOut is on, then the points outside the surface are marked inside.

virtual void vtkSelectEnclosedPoints::InsideOutOn ( ) [virtual]

By default, points inside the surface are marked inside or sent to the output. If InsideOut is on, then the points outside the surface are marked inside.

virtual void vtkSelectEnclosedPoints::InsideOutOff ( ) [virtual]

By default, points inside the surface are marked inside or sent to the output. If InsideOut is on, then the points outside the surface are marked inside.

virtual int vtkSelectEnclosedPoints::GetInsideOut ( ) [virtual]

By default, points inside the surface are marked inside or sent to the output. If InsideOut is on, then the points outside the surface are marked inside.

virtual void vtkSelectEnclosedPoints::SetCheckSurface ( int ) [virtual]

Specify whether to check the surface for closure. If on, then the algorithm first checks to see if the surface is closed and manifold.

virtual void vtkSelectEnclosedPoints::CheckSurfaceOn ( ) [virtual]

Specify whether to check the surface for closure. If on, then the algorithm first checks to see if the surface is closed and manifold.

virtual void vtkSelectEnclosedPoints::CheckSurfaceOff ( ) [virtual]

Specify whether to check the surface for closure. If on, then the algorithm first checks to see if the surface is closed and manifold.

virtual int vtkSelectEnclosedPoints::GetCheckSurface ( ) [virtual]

Specify whether to check the surface for closure. If on, then the algorithm first checks to see if the surface is closed and manifold.

int vtkSelectEnclosedPoints::IsInside ( vtkIdType inputPtId )

Query an input point id as to whether it is inside or outside. Note that the result requires that the filter execute first.

virtual void vtkSelectEnclosedPoints::SetTolerance ( double ) [virtual]

Specify the tolerance on the intersection. The tolerance is expressed as a fraction of the bounding box of the enclosing surface.

virtual double vtkSelectEnclosedPoints::GetTolerance ( ) [virtual]

Specify the tolerance on the intersection. The tolerance is expressed as a fraction of the bounding box of the enclosing surface.

void vtkSelectEnclosedPoints::Initialize ( vtkPolyData * surface )

This is a backdoor that can be used to test many points for containment. First initialize the instance, then repeated calls to IsInsideSurface() can be used without rebuilding the search structures. The complete method releases memory.

int vtkSelectEnclosedPoints::IsInsideSurface	(	double	x,
		double	y,
		double	z
	)

This is a backdoor that can be used to test many points for containment. First initialize the instance, then repeated calls to IsInsideSurface() can be used without rebuilding the search structures. The complete method releases memory.

int vtkSelectEnclosedPoints::IsInsideSurface ( double x[3] )

This is a backdoor that can be used to test many points for containment. First initialize the instance, then repeated calls to IsInsideSurface() can be used without rebuilding the search structures. The complete method releases memory.

void vtkSelectEnclosedPoints::Complete ( )

This is a backdoor that can be used to test many points for containment. First initialize the instance, then repeated calls to IsInsideSurface() can be used without rebuilding the search structures. The complete method releases memory.

int vtkSelectEnclosedPoints::IsSurfaceClosed ( vtkPolyData * surface ) [protected]

virtual int vtkSelectEnclosedPoints::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			`[protected, virtual]`

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkSelectEnclosedPoints::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkDataSetAlgorithm.

virtual void vtkSelectEnclosedPoints::ReportReferences ( vtkGarbageCollector * ) [protected, virtual]

Reimplemented from vtkAlgorithm.
