vtkSplineWidget2 Class Reference

#include <vtkSplineWidget2.h>

Inheritance diagram for vtkSplineWidget2:

[legend]

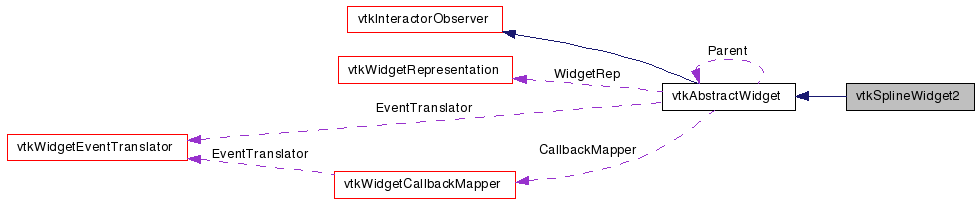

Collaboration diagram for vtkSplineWidget2:

[legend]

List of all members.

---

Detailed Description

widget for vtkSplineRepresentation.

vtkSplineWidget2 is the vtkAbstractWidget subclass for vtkSplineRepresentation which manages the interactions with vtkSplineRepresentation. This is based on vtkSplineWidget.

See also:

vtkSplineRepresentation, vtkSplineWidget2

Events:

vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent

Tests:

vtkSplineWidget2 (Tests)

Definition at line 38 of file vtkSplineWidget2.h.

void	CreateDefaultRepresentation ()
	vtkSplineWidget2 ()
	~vtkSplineWidget2 ()
Public Types
typedef vtkAbstractWidget	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetRepresentation (vtkSplineRepresentation *r)
Static Public Member Functions
static vtkSplineWidget2 *	New ()
static int	IsTypeOf (const char *type)
static vtkSplineWidget2 *	SafeDownCast (vtkObject *o)
Protected Types
enum	_WidgetState { Start = 0, Active }
Static Protected Member Functions
static void	SelectAction (vtkAbstractWidget *)
static void	EndSelectAction (vtkAbstractWidget *)
static void	TranslateAction (vtkAbstractWidget *)
static void	ScaleAction (vtkAbstractWidget *)
static void	MoveAction (vtkAbstractWidget *)
Protected Attributes
int	WidgetState

---

Member Typedef Documentation

typedef vtkAbstractWidget vtkSplineWidget2::Superclass

Standard macros implementing standard VTK methods.

Reimplemented from vtkAbstractWidget.

Definition at line 42 of file vtkSplineWidget2.h.

---

Member Enumeration Documentation

enum vtkSplineWidget2::_WidgetState [protected]

Enumerator:

Start
Active

Definition at line 67 of file vtkSplineWidget2.h.

---

Constructor & Destructor Documentation

vtkSplineWidget2::vtkSplineWidget2

(

)

[protected]

Create the default widget representation if one is not set. By default, this is an instance of the vtkSplineRepresentation class.

vtkSplineWidget2::~vtkSplineWidget2

(

)

[protected]

Create the default widget representation if one is not set. By default, this is an instance of the vtkSplineRepresentation class.

---

Member Function Documentation

static vtkSplineWidget2* vtkSplineWidget2::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkSplineWidget2::GetClassName

(

)

[virtual]

Standard macros implementing standard VTK methods.

Reimplemented from vtkAbstractWidget.

static int vtkSplineWidget2::IsTypeOf

(

const char *

type

)

[static]

Standard macros implementing standard VTK methods.

Reimplemented from vtkAbstractWidget.

virtual int vtkSplineWidget2::IsA

(

const char *

type

)

[virtual]

Standard macros implementing standard VTK methods.

Reimplemented from vtkAbstractWidget.

static vtkSplineWidget2* vtkSplineWidget2::SafeDownCast

(

vtkObject *

o

)

[static]

Standard macros implementing standard VTK methods.

Reimplemented from vtkAbstractWidget.

void vtkSplineWidget2::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Standard macros implementing standard VTK methods.

Reimplemented from vtkAbstractWidget.

void vtkSplineWidget2::SetRepresentation

(

vtkSplineRepresentation *

r

)

[inline]

Specify an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp so it can be added to the renderer independent of the widget.

Definition at line 49 of file vtkSplineWidget2.h.

void vtkSplineWidget2::CreateDefaultRepresentation

(

)

[virtual]

Create the default widget representation if one is not set. By default, this is an instance of the vtkSplineRepresentation class.

Implements vtkAbstractWidget.

static void vtkSplineWidget2::SelectAction

(

vtkAbstractWidget *

)

[static, protected]

static void vtkSplineWidget2::EndSelectAction

(

vtkAbstractWidget *

)

[static, protected]

static void vtkSplineWidget2::TranslateAction

(

vtkAbstractWidget *

)

[static, protected]

static void vtkSplineWidget2::ScaleAction

(

vtkAbstractWidget *

)

[static, protected]

static void vtkSplineWidget2::MoveAction

(

vtkAbstractWidget *

)

[static, protected]

---

Member Data Documentation

int vtkSplineWidget2::WidgetState [protected]

Definition at line 66 of file vtkSplineWidget2.h.

---

The documentation for this class was generated from the following file:

• dox/Widgets/vtkSplineWidget2.h
