vtkTransmitUnstructuredGridPiece Class Reference

#include <vtkTransmitUnstructuredGridPiece.h>

Inheritance diagram for vtkTransmitUnstructuredGridPiece:

Inheritance graph
[legend]

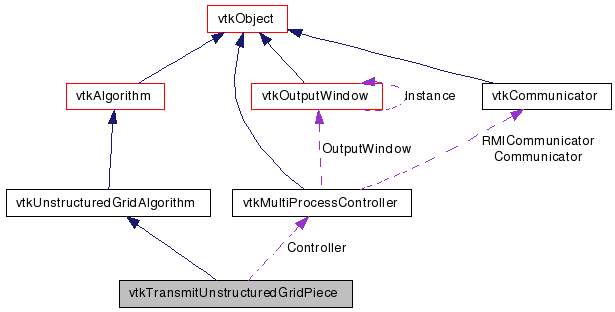

Collaboration diagram for vtkTransmitUnstructuredGridPiece:

Collaboration graph
[legend]

List of all members.


Detailed Description

Return specified piece, including specified number of ghost levels.

This filter updates the appropriate piece by requesting the piece from process 0. Process 0 always updates all of the data. It is important that Execute get called on all processes, otherwise the filter will deadlock.

Definition at line 31 of file vtkTransmitUnstructuredGridPiece.h.


Public Types

typedef
vtkUnstructuredGridAlgorithm
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetController (vtkMultiProcessController *)
virtual vtkMultiProcessControllerGetController ()
virtual void SetCreateGhostCells (int)
virtual int GetCreateGhostCells ()
virtual void CreateGhostCellsOn ()
virtual void CreateGhostCellsOff ()

Static Public Member Functions

static
vtkTransmitUnstructuredGridPiece
New ()
static int IsTypeOf (const char *type)
static
vtkTransmitUnstructuredGridPiece
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkTransmitUnstructuredGridPiece ()
 ~vtkTransmitUnstructuredGridPiece ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void RootExecute (vtkUnstructuredGrid *input, vtkUnstructuredGrid *output, vtkInformation *outInfo)
void SatelliteExecute (int procId, vtkUnstructuredGrid *output, vtkInformation *outInfo)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

int CreateGhostCells
vtkMultiProcessControllerController

Member Typedef Documentation

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 35 of file vtkTransmitUnstructuredGridPiece.h.


Constructor & Destructor Documentation

vtkTransmitUnstructuredGridPiece::vtkTransmitUnstructuredGridPiece (  )  [protected]

vtkTransmitUnstructuredGridPiece::~vtkTransmitUnstructuredGridPiece (  )  [protected]


Member Function Documentation

static vtkTransmitUnstructuredGridPiece* vtkTransmitUnstructuredGridPiece::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual const char* vtkTransmitUnstructuredGridPiece::GetClassName (  )  [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkTransmitUnstructuredGridPiece::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkTransmitUnstructuredGridPiece::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkTransmitUnstructuredGridPiece* vtkTransmitUnstructuredGridPiece::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkTransmitUnstructuredGridPiece::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual void vtkTransmitUnstructuredGridPiece::SetController ( vtkMultiProcessController  )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual vtkMultiProcessController* vtkTransmitUnstructuredGridPiece::GetController (  )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual void vtkTransmitUnstructuredGridPiece::SetCreateGhostCells ( int   )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual int vtkTransmitUnstructuredGridPiece::GetCreateGhostCells (  )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitUnstructuredGridPiece::CreateGhostCellsOn (  )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitUnstructuredGridPiece::CreateGhostCellsOff (  )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual int vtkTransmitUnstructuredGridPiece::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkTransmitUnstructuredGridPiece::RootExecute ( vtkUnstructuredGrid input,
vtkUnstructuredGrid output,
vtkInformation outInfo
) [protected]

void vtkTransmitUnstructuredGridPiece::SatelliteExecute ( int  procId,
vtkUnstructuredGrid output,
vtkInformation outInfo
) [protected]

virtual int vtkTransmitUnstructuredGridPiece::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkTransmitUnstructuredGridPiece::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkUnstructuredGridAlgorithm.


Member Data Documentation

Definition at line 65 of file vtkTransmitUnstructuredGridPiece.h.

Definition at line 66 of file vtkTransmitUnstructuredGridPiece.h.


The documentation for this class was generated from the following file:
