vtkVisibleCellSelector Class Reference

#include <vtkVisibleCellSelector.h>

Inheritance diagram for vtkVisibleCellSelector:

[legend]

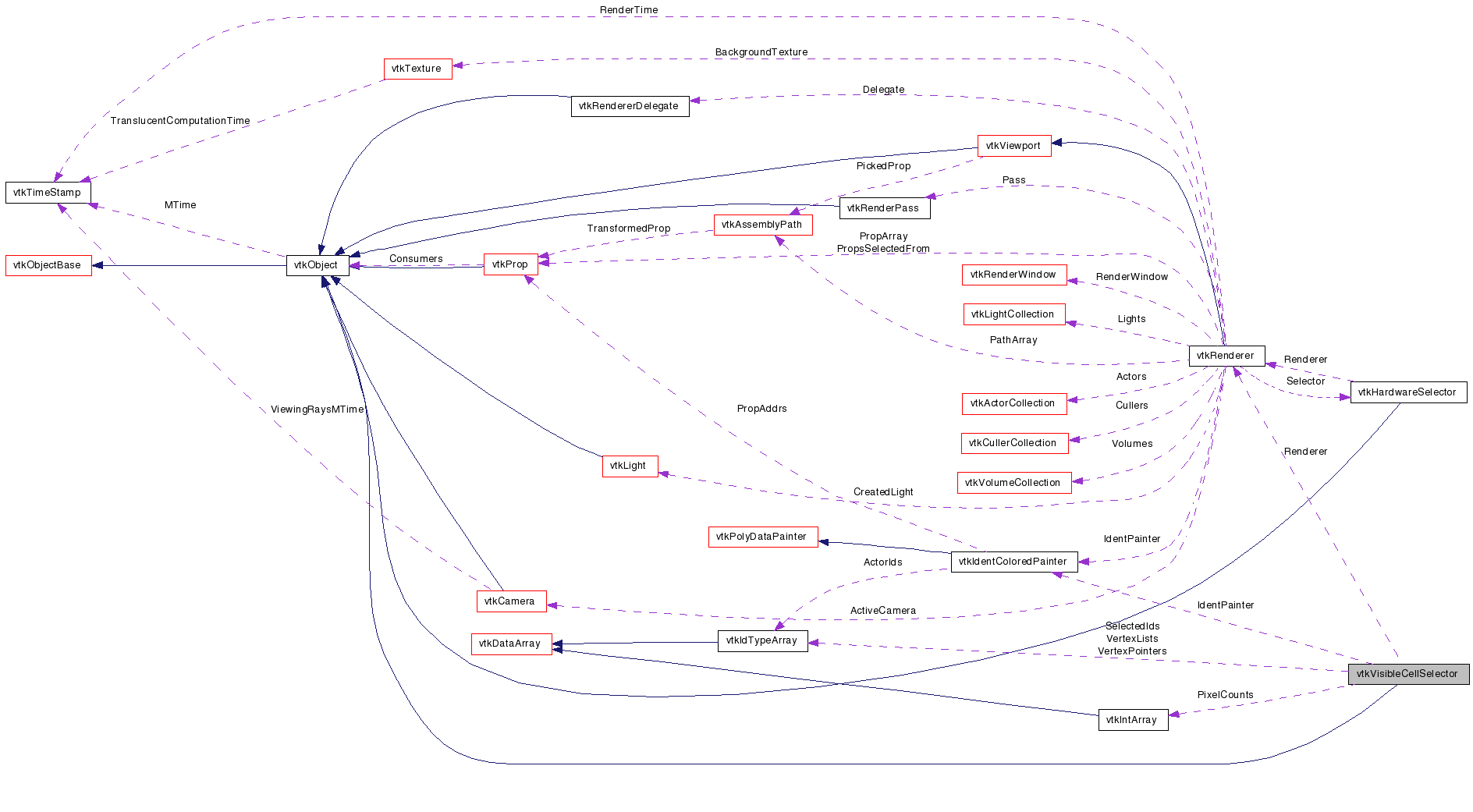

Collaboration diagram for vtkVisibleCellSelector:

[legend]

List of all members.

Detailed Description

A helper that orchestrates color buffer visible cell selection. This is deprecated. Refer to vtkHardwareSelector instead.

DEPRECATED: Please refer to vtkHardwareSelector instead. This class can be used to determine what cells are visible within a given rectangle of the RenderWindow. To use it, call in order, SetRenderer(), SetArea(), SetProcessorId(), SetRenderPasses(), and then Select(). Select will cause the attached vtkRenderer to render in a special color mode, where each cell is given it own color so that later inspection of the Rendered Pixels can determine what cells are visible. In practice up to five different rendering passes may occur depending on your choices in SetRenderPasses. After Select(), a list of the visible cells can be obtained by calling GetSelectedIds().

Limitations: Antialiasing will break this class. If your graphics card settings force their use this class will return invalid results.

Currently only cells from PolyDataMappers can be selected from. When vtkRenderer is put into a SelectMode, it temporarily swaps in a new vtkIdentColoredPainter to do the color index rendering of each cell in each vtkProp that it renders. Until alternatives to vtkIdentColoredPainter exist that can do a similar coloration of other vtkDataSet types, only polygonal data can be selected. If you need to select other data types, consider using vtkDataSetMapper and turning on it's PassThroughCellIds feature, or using vtkFrustumExtractor.

Only Opaque geometry in Actors is selected from. Assemblies and LODMappers are not currently supported.

During selection, visible datasets that can not be selected from are temporarily hidden so as not to produce invalid indices from their colors.

See also:: vtkIdentColoredPainter

Definition at line 67 of file vtkVisibleCellSelector.h.


Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetRenderer (vtkRenderer *)
void	Select ()
void	GetSelectedIds (vtkIdTypeArray *ToCopyInto)
void	GetSelectedIds (vtkSelection *ToCopyInto)
vtkProp *	GetActorFromId (vtkIdType id)
void	PrintSelectedIds (vtkIdTypeArray *IdsToPrint)

void	SetArea (unsigned int x0, unsigned int y0, unsigned int x1, unsigned int y1)

void	GetArea (unsigned int &x0, unsigned int &y0, unsigned int &x1, unsigned int &y1)

virtual void	SetProcessorId (unsigned int pid)
virtual unsigned int	GetProcessorId ()

void	SetRenderPasses (int DoProcessor, int DoActor, int DoCellIdHi, int DoCellIdMid, int DoCellIdLo, int DoVertexId=0)

void	GetSelectedVertices (vtkIdTypeArray VertexPointers, vtkIdTypeArray VertexIds)

void	GetPixelSelection (int displayPos[2], vtkIdType &procId, vtkIdType &cellId, vtkIdType &vertId, vtkProp *&actorPtr)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkVisibleCellSelector *	SafeDownCast (vtkObject *o)
static vtkVisibleCellSelector *	New ()
Protected Member Functions
	vtkVisibleCellSelector ()
	~vtkVisibleCellSelector ()
void	SavePixelBuffer (int pass, unsigned char *src)
void	ComputeSelectedIds ()
void	SetSelectMode (int mode)
void	SetSelectConst (unsigned int constant)
void	SetIdentPainter (vtkIdentColoredPainter *)
Protected Attributes
vtkRenderer *	Renderer
int	DoProcessor
int	DoActor
int	DoCellIdHi
int	DoCellIdMid
int	DoCellIdLo
int	DoVertices
unsigned int	ProcessorId
unsigned int	X0
unsigned int	Y0
unsigned int	X1
unsigned int	Y1
unsigned char *	PixBuffer [6]
vtkIdentColoredPainter *	IdentPainter

vtkIdTypeArray *	SelectedIds
vtkIntArray *	PixelCounts
vtkIdTypeArray *	VertexPointers
vtkIdTypeArray *	VertexLists

Member Typedef Documentation

typedef vtkObject vtkVisibleCellSelector::Superclass

Reimplemented from vtkObject.

Definition at line 70 of file vtkVisibleCellSelector.h.

Constructor & Destructor Documentation

vtkVisibleCellSelector::vtkVisibleCellSelector ( ) [protected]

vtkVisibleCellSelector::~vtkVisibleCellSelector ( ) [protected]

Member Function Documentation

virtual const char* vtkVisibleCellSelector::GetClassName ( ) [virtual]

Reimplemented from vtkObject.

static int vtkVisibleCellSelector::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkVisibleCellSelector::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkVisibleCellSelector* vtkVisibleCellSelector::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkObject.

void vtkVisibleCellSelector::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

static vtkVisibleCellSelector* vtkVisibleCellSelector::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual void vtkVisibleCellSelector::SetRenderer ( vtkRenderer * ) [virtual]

Call to let this know where to select within.

void vtkVisibleCellSelector::SetArea	(	unsigned int	x0,
		unsigned int	y0,
		unsigned int	x1,
		unsigned int	y1
	)

Call to set the selection area region. This crops the selected area to the renderers pixel limits.

void vtkVisibleCellSelector::GetArea	(	unsigned int &	x0,
		unsigned int &	y0,
		unsigned int &	x1,
		unsigned int &	y1
	)

The caller of SetArea can use to check for cropped limits.

virtual void vtkVisibleCellSelector::SetProcessorId ( unsigned int pid ) [virtual]

Call to let this know what processor number to render as in the processor select pass. Internally this adds 1 to pid because 0 is reserved for miss.

virtual unsigned int vtkVisibleCellSelector::GetProcessorId ( ) [virtual]

Call to let this know what processor number to render as in the processor select pass. Internally this adds 1 to pid because 0 is reserved for miss.

void vtkVisibleCellSelector::SetRenderPasses	(	int	DoProcessor,
		int	DoActor,
		int	DoCellIdHi,
		int	DoCellIdMid,
		int	DoCellIdLo,
		int	DoVertexId = `0`
	)

Call to let this know what selection render passes to do. If you have only one processor or one actor, you can leave DoProcessor and DoActor as false (the default). If you have less than 2^48 cells in any actor, you do not need the CellIdHi pass, or similarly if you have less than 2^24 cells, you do not need DoCellIdMid. The DoPointId will enable another render pass for determining visible vertices.

void vtkVisibleCellSelector::Select ( )

Execute the selection algorithm.

void vtkVisibleCellSelector::GetSelectedIds ( vtkIdTypeArray * ToCopyInto )

After Select(), this will return the list of selected Ids. The ProcessorId and Actor Id are returned in the first two components. The CellId is returned in the last two components (only 64 bits total).

void vtkVisibleCellSelector::GetSelectedIds ( vtkSelection * ToCopyInto )

After Select(), this will return the list of selected Ids.

void vtkVisibleCellSelector::GetSelectedVertices	(	vtkIdTypeArray *	VertexPointers,
		vtkIdTypeArray *	VertexIds
	)

After Select(), (assuming DoVertexId is on), the will return arrays that describe which cell vertices are visible. The VertexPointers array contains one index into the VertexIds array for every visible cell. Any index may be -1 in which case no vertices were visible for that cell. The VertexIds array contains a set of integers for each cell that has visible vertices. The first entry in the set is the number of visible vertices. The rest are visible vertex ranks. A set such at 2,0,4, means that a particular polygon's first and fifth vertices were visible.

vtkProp* vtkVisibleCellSelector::GetActorFromId ( vtkIdType id )

After a select, this will return a pointer to the actor corresponding to a particular id. This will return NULL if id is out of range.

void vtkVisibleCellSelector::PrintSelectedIds ( vtkIdTypeArray * IdsToPrint )

For debugging - prints out the list of selected ids.
