vtkWin32OpenGLRenderWindow Class Reference

#include <vtkWin32OpenGLRenderWindow.h>

Inheritance diagram for vtkWin32OpenGLRenderWindow:

[legend]

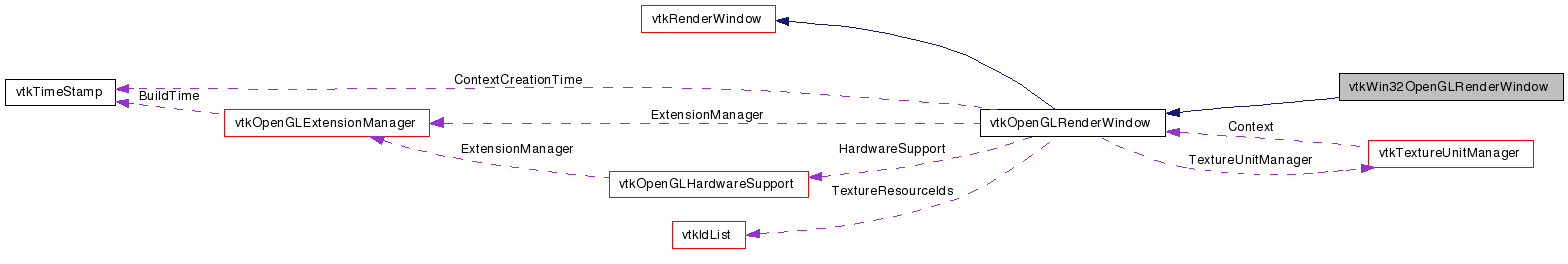

Collaboration diagram for vtkWin32OpenGLRenderWindow:

[legend]

List of all members.

---

Detailed Description

OpenGL rendering window.

vtkWin32OpenGLRenderWindow is a concrete implementation of the abstract class vtkRenderWindow. vtkWin32OpenGLRenderer interfaces to the standard OpenGL graphics library in the Windows/NT environment..

Events:

vtkCommand::RenderWindowMessageEvent vtkCommand::CursorChangedEvent vtkCommand::ExitEvent

Examples:

vtkWin32OpenGLRenderWindow (Examples)

Definition at line 36 of file vtkWin32OpenGLRenderWindow.h.

Public Types
typedef vtkOpenGLRenderWindow	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Start (void)
void	Frame (void)
virtual void	WindowInitialize (void)
virtual void	Initialize (void)
virtual void	Finalize (void)
virtual void	SetFullScreen (int)
virtual void	WindowRemap (void)
virtual void	PrefFullScreen (void)
virtual int *	GetSize ()
virtual int *	GetScreenSize ()
virtual int *	GetPosition ()
virtual void	SetWindowName (const char *)
void	SetWindowInfo (char *)
void	SetNextWindowInfo (char *)
void	SetParentInfo (char *)
virtual void *	GetGenericDisplayId ()
virtual void *	GetGenericWindowId ()
virtual void *	GetGenericParentId ()
virtual void *	GetGenericContext ()
virtual void *	GetGenericDrawable ()
virtual void	SetDisplayId (void *)
virtual void	SetWindowId (HWND)
void	SetContextId (HGLRC)
void	SetDeviceContext (HDC)
virtual void	SetNextWindowId (HWND)
virtual void	SetNextWindowId (void *arg)
virtual void	SetStereoCapableWindow (int capable)
void	MakeCurrent ()
virtual bool	IsCurrent ()
const char *	ReportCapabilities ()
int	SupportsOpenGL ()
int	IsDirect ()
virtual int	GetEventPending ()
void	Clean ()
virtual void	SetCurrentCursor (int)
virtual void	SetOffScreenRendering (int offscreen)
virtual void	SetSize (int, int)
virtual void	SetSize (int a[2])
virtual void	SetPosition (int, int)
virtual void	SetPosition (int a[2])
virtual HWND	GetWindowId ()
void	SetWindowId (void *foo)
virtual void	SetParentId (HWND)
void	SetParentId (void *foo)
void	SetupMemoryRendering (int x, int y, HDC prn)
void	SetupMemoryRendering (HBITMAP hbmp)
void	ResumeScreenRendering (void)
HDC	GetMemoryDC ()
unsigned char *	GetMemoryData ()
virtual void	SetupPalette (HDC hDC)
virtual void	SetupPixelFormat (HDC hDC, DWORD dwFlags, int debug, int bpp=16, int zbpp=16)
void	HideCursor ()
void	ShowCursor ()
void	SetCursorPosition (int x, int y)
Static Public Member Functions
static vtkWin32OpenGLRenderWindow *	New ()
static int	IsTypeOf (const char *type)
static vtkWin32OpenGLRenderWindow *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkWin32OpenGLRenderWindow ()
	~vtkWin32OpenGLRenderWindow ()
virtual LRESULT	MessageProc (HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
void	ResizeWhileOffscreen (int xsize, int ysize)
virtual void	CreateAWindow ()
virtual void	DestroyWindow ()
void	InitializeApplication ()
void	CleanUpOffScreenRendering (void)
void	CreateOffScreenDC (int xsize, int ysize, HDC aHdc)
void	CreateOffScreenDC (HBITMAP hbmp, HDC aHdc)
void	CreateOffScreenWindow (int width, int height)
void	SaveScreenRendering ()
void	CleanUpRenderers ()
Static Protected Member Functions
static LRESULT APIENTRY	WndProc (HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
Protected Attributes
HINSTANCE	ApplicationInstance
HPALETTE	Palette
HPALETTE	OldPalette
HGLRC	ContextId
HDC	DeviceContext
BOOL	MFChandledWindow
HWND	WindowId
HWND	ParentId
HWND	NextWindowId
int	OwnWindow
int	ScreenSize [2]
BITMAPINFO	MemoryDataHeader
HBITMAP	MemoryBuffer
unsigned char *	MemoryData
HDC	MemoryHdc
int	ScreenMapped
int	ScreenWindowSize [2]
HDC	ScreenDeviceContext
int	ScreenDoubleBuffer
HGLRC	ScreenContextId
int	CreatingOffScreenWindow
int	CursorHidden
int	ForceMakeCurrent
char *	Capabilities
int	WindowIdReferenceCount

---

Member Typedef Documentation

typedef vtkOpenGLRenderWindow vtkWin32OpenGLRenderWindow::Superclass

Reimplemented from vtkOpenGLRenderWindow.

Definition at line 40 of file vtkWin32OpenGLRenderWindow.h.

---

Constructor & Destructor Documentation

vtkWin32OpenGLRenderWindow::vtkWin32OpenGLRenderWindow

(

)

[protected]

vtkWin32OpenGLRenderWindow::~vtkWin32OpenGLRenderWindow

(

)

[protected]

---

Member Function Documentation

static vtkWin32OpenGLRenderWindow* vtkWin32OpenGLRenderWindow::New

(

)

[static]

Construct an instance of vtkRenderWindow with its screen size set to 300x300, borders turned on, positioned at (0,0), double buffering turned on.

Reimplemented from vtkRenderWindow.

virtual const char* vtkWin32OpenGLRenderWindow::GetClassName

(

)

[virtual]

Reimplemented from vtkOpenGLRenderWindow.

static int vtkWin32OpenGLRenderWindow::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkOpenGLRenderWindow.

virtual int vtkWin32OpenGLRenderWindow::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkOpenGLRenderWindow.

static vtkWin32OpenGLRenderWindow* vtkWin32OpenGLRenderWindow::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkOpenGLRenderWindow.

void vtkWin32OpenGLRenderWindow::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::Start

(

void

)

[virtual]

Begin the rendering process.

Implements vtkRenderWindow.

void vtkWin32OpenGLRenderWindow::Frame

(

void

)

[virtual]

End the rendering process and display the image.

Implements vtkRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::WindowInitialize

(

void

)

[virtual]

Create the window

virtual void vtkWin32OpenGLRenderWindow::Initialize

(

void

)

[virtual]

Initialize the rendering window. This will setup all system-specific resources. This method and Finalize() must be symmetric and it should be possible to call them multiple times, even changing WindowId in-between. This is what WindowRemap does.

virtual void vtkWin32OpenGLRenderWindow::Finalize

(

void

)

[virtual]

Finalize the rendering window. This will shutdown all system-specific resources. After having called this, it should be possible to destroy a window that was used for a SetWindowId() call without any ill effects.

Implements vtkRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::SetFullScreen

(

int

)

[virtual]

Change the window to fill the entire screen.

Implements vtkRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::WindowRemap

(

void

)

[virtual]

Remap the window.

Implements vtkRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::PrefFullScreen

(

void

)

[virtual]

Set the preferred window size to full screen.

virtual void vtkWin32OpenGLRenderWindow::SetSize	(	int	,
		int
	)			[virtual]

Set the size of the window in pixels.

Reimplemented from vtkWindow.

virtual void vtkWin32OpenGLRenderWindow::SetSize

(

int

a[2]

)

[inline, virtual]

Set the size of the window in pixels.

Reimplemented from vtkWindow.

Definition at line 76 of file vtkWin32OpenGLRenderWindow.h.

virtual int* vtkWin32OpenGLRenderWindow::GetSize

(

)

[virtual]

Get the current size of the window in pixels.

Reimplemented from vtkWindow.

virtual void vtkWin32OpenGLRenderWindow::SetPosition	(	int	,
		int
	)			[virtual]

Set the position of the window.

Reimplemented from vtkWindow.

virtual void vtkWin32OpenGLRenderWindow::SetPosition

(

int

a[2]

)

[inline, virtual]

Set the position of the window.

Reimplemented from vtkWindow.

Definition at line 85 of file vtkWin32OpenGLRenderWindow.h.

virtual int* vtkWin32OpenGLRenderWindow::GetScreenSize

(

)

[virtual]

Get the current size of the screen in pixels.

Implements vtkWindow.

virtual int* vtkWin32OpenGLRenderWindow::GetPosition

(

)

[virtual]

Get the position in screen coordinates of the window.

Reimplemented from vtkWindow.

virtual void vtkWin32OpenGLRenderWindow::SetWindowName

(

const char *

)

[virtual]

Set the name of the window. This appears at the top of the window normally.

Reimplemented from vtkWindow.

void vtkWin32OpenGLRenderWindow::SetWindowInfo

(

char *

)

[virtual]

Set this RenderWindow's window id to a pre-existing window.

Implements vtkRenderWindow.

void vtkWin32OpenGLRenderWindow::SetNextWindowInfo

(

char *

)

[virtual]

Sets the WindowInfo that will be used after a WindowRemap.

Implements vtkRenderWindow.

void vtkWin32OpenGLRenderWindow::SetParentInfo

(

char *

)

[virtual]

Sets the HWND id of the window that WILL BE created.

Implements vtkRenderWindow.

virtual void* vtkWin32OpenGLRenderWindow::GetGenericDisplayId

(

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 108 of file vtkWin32OpenGLRenderWindow.h.

virtual void* vtkWin32OpenGLRenderWindow::GetGenericWindowId

(

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 109 of file vtkWin32OpenGLRenderWindow.h.

virtual void* vtkWin32OpenGLRenderWindow::GetGenericParentId

(

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 110 of file vtkWin32OpenGLRenderWindow.h.

virtual void* vtkWin32OpenGLRenderWindow::GetGenericContext

(

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 111 of file vtkWin32OpenGLRenderWindow.h.

virtual void* vtkWin32OpenGLRenderWindow::GetGenericDrawable

(

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 112 of file vtkWin32OpenGLRenderWindow.h.

virtual void vtkWin32OpenGLRenderWindow::SetDisplayId

(

void *

)

[virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

virtual HWND vtkWin32OpenGLRenderWindow::GetWindowId

(

)

[virtual]

Get the window id.

void vtkWin32OpenGLRenderWindow::SetWindowId

(

void *

foo

)

[inline, virtual]

Get the window id.

Implements vtkRenderWindow.

Definition at line 118 of file vtkWin32OpenGLRenderWindow.h.

virtual void vtkWin32OpenGLRenderWindow::SetWindowId

(

HWND

)

[virtual]

Set the window id to a pre-existing window.

virtual void vtkWin32OpenGLRenderWindow::SetParentId

(

HWND

)

[virtual]

Set the window's parent id to a pre-existing window.

void vtkWin32OpenGLRenderWindow::SetParentId

(

void *

foo

)

[inline, virtual]

Set the window's parent id to a pre-existing window.

Implements vtkRenderWindow.

Definition at line 127 of file vtkWin32OpenGLRenderWindow.h.

void vtkWin32OpenGLRenderWindow::SetContextId

(

HGLRC

)

void vtkWin32OpenGLRenderWindow::SetDeviceContext

(

HDC

)

virtual void vtkWin32OpenGLRenderWindow::SetNextWindowId

(

HWND

)

[virtual]

Set the window id of the new window once a WindowRemap is done.

virtual void vtkWin32OpenGLRenderWindow::SetNextWindowId

(

void *

arg

)

[virtual]

Set the window id of the new window once a WindowRemap is done. This is the generic prototype as required by the vtkRenderWindow parent.

Implements vtkRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::SetStereoCapableWindow

(

int

capable

)

[virtual]

Prescribe that the window be created in a stereo-capable mode. This method must be called before the window is realized. This method overrides the superclass method since this class can actually check whether the window has been realized yet.

Reimplemented from vtkRenderWindow.

void vtkWin32OpenGLRenderWindow::MakeCurrent

(

)

[virtual]

Make this windows OpenGL context the current context.

Implements vtkRenderWindow.

virtual bool vtkWin32OpenGLRenderWindow::IsCurrent

(

)

[virtual]

Tells if this window is the current OpenGL context for the calling thread.

Implements vtkRenderWindow.

const char* vtkWin32OpenGLRenderWindow::ReportCapabilities

(

)

[virtual]

Get report of capabilities for the render window

Reimplemented from vtkRenderWindow.

int vtkWin32OpenGLRenderWindow::SupportsOpenGL

(

)

[virtual]

Does this render window support OpenGL? 0-false, 1-true

Reimplemented from vtkRenderWindow.

int vtkWin32OpenGLRenderWindow::IsDirect

(

)

[virtual]

Is this render window using hardware acceleration? 0-false, 1-true

Reimplemented from vtkRenderWindow.

virtual int vtkWin32OpenGLRenderWindow::GetEventPending

(

)

[virtual]

Check to see if a mouse button has been pressed. All other events are ignored by this method. This is a useful check to abort a long render.

Implements vtkRenderWindow.

void vtkWin32OpenGLRenderWindow::SetupMemoryRendering	(	int	x,
		int	y,
		HDC	prn
	)

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.

void vtkWin32OpenGLRenderWindow::SetupMemoryRendering

(

HBITMAP

hbmp

)

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.

void vtkWin32OpenGLRenderWindow::ResumeScreenRendering

(

void

)

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.

HDC vtkWin32OpenGLRenderWindow::GetMemoryDC

(

)

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.

unsigned char* vtkWin32OpenGLRenderWindow::GetMemoryData

(

)

[inline]

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.

Definition at line 176 of file vtkWin32OpenGLRenderWindow.h.

virtual void vtkWin32OpenGLRenderWindow::SetupPalette

(

HDC

hDC

)

[virtual]

Initialize OpenGL for this window.

virtual void vtkWin32OpenGLRenderWindow::SetupPixelFormat	(	HDC	hDC,
		DWORD	dwFlags,
		int	debug,
		int	bpp = 16,
		int	zbpp = 16
	)			[virtual]

Initialize OpenGL for this window.

void vtkWin32OpenGLRenderWindow::Clean

(

)

Clean up device contexts, rendering contexts, etc.

void vtkWin32OpenGLRenderWindow::HideCursor

(

)

[virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead. Set cursor position in window (note that (0,0) is the lower left corner).

Implements vtkRenderWindow.

void vtkWin32OpenGLRenderWindow::ShowCursor

(

)

[virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead. Set cursor position in window (note that (0,0) is the lower left corner).

Implements vtkRenderWindow.

void vtkWin32OpenGLRenderWindow::SetCursorPosition	(	int	x,
		int	y
	)			[virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead. Set cursor position in window (note that (0,0) is the lower left corner).

Reimplemented from vtkRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::SetCurrentCursor

(

int

)

[virtual]

Change the shape of the cursor

Reimplemented from vtkRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::SetOffScreenRendering

(

int

offscreen

)

[virtual]

Override the default implementation so that we can actively switch between on and off screen rendering.

Reimplemented from vtkWindow.

virtual LRESULT vtkWin32OpenGLRenderWindow::MessageProc	(	HWND	hWnd,
		UINT	message,
		WPARAM	wParam,
		LPARAM	lParam
	)			[protected, virtual]

static LRESULT APIENTRY vtkWin32OpenGLRenderWindow::WndProc	(	HWND	hWnd,
		UINT	message,
		WPARAM	wParam,
		LPARAM	lParam
	)			[static, protected]

void vtkWin32OpenGLRenderWindow::ResizeWhileOffscreen	(	int	xsize,
		int	ysize
	)			[protected]

virtual void vtkWin32OpenGLRenderWindow::CreateAWindow

(

)

[protected, virtual]

Create a not-off-screen window.

Implements vtkOpenGLRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::DestroyWindow

(

)

[protected, virtual]

Destroy a not-off-screen window.

Implements vtkOpenGLRenderWindow.

void vtkWin32OpenGLRenderWindow::InitializeApplication

(

)

[protected]

void vtkWin32OpenGLRenderWindow::CleanUpOffScreenRendering

(

void

)

[protected]

void vtkWin32OpenGLRenderWindow::CreateOffScreenDC	(	int	xsize,
		int	ysize,
		HDC	aHdc
	)			[protected]

void vtkWin32OpenGLRenderWindow::CreateOffScreenDC	(	HBITMAP	hbmp,
		HDC	aHdc
	)			[protected]

void vtkWin32OpenGLRenderWindow::CreateOffScreenWindow	(	int	width,
		int	height
	)			[protected]

void vtkWin32OpenGLRenderWindow::SaveScreenRendering

(

)

[protected]

void vtkWin32OpenGLRenderWindow::CleanUpRenderers

(

)

[protected]

---

Member Data Documentation

HINSTANCE vtkWin32OpenGLRenderWindow::ApplicationInstance [protected]

Definition at line 209 of file vtkWin32OpenGLRenderWindow.h.

HPALETTE vtkWin32OpenGLRenderWindow::Palette [protected]

Definition at line 210 of file vtkWin32OpenGLRenderWindow.h.

HPALETTE vtkWin32OpenGLRenderWindow::OldPalette [protected]

Definition at line 211 of file vtkWin32OpenGLRenderWindow.h.

HGLRC vtkWin32OpenGLRenderWindow::ContextId [protected]

Definition at line 212 of file vtkWin32OpenGLRenderWindow.h.

HDC vtkWin32OpenGLRenderWindow::DeviceContext [protected]

Definition at line 213 of file vtkWin32OpenGLRenderWindow.h.

BOOL vtkWin32OpenGLRenderWindow::MFChandledWindow [protected]

Definition at line 214 of file vtkWin32OpenGLRenderWindow.h.

HWND vtkWin32OpenGLRenderWindow::WindowId [protected]

Definition at line 215 of file vtkWin32OpenGLRenderWindow.h.

HWND vtkWin32OpenGLRenderWindow::ParentId [protected]

Definition at line 216 of file vtkWin32OpenGLRenderWindow.h.

HWND vtkWin32OpenGLRenderWindow::NextWindowId [protected]

Definition at line 217 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::OwnWindow [protected]

Definition at line 218 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::ScreenSize[2] [protected]

Definition at line 219 of file vtkWin32OpenGLRenderWindow.h.

BITMAPINFO vtkWin32OpenGLRenderWindow::MemoryDataHeader [protected]

Definition at line 222 of file vtkWin32OpenGLRenderWindow.h.

HBITMAP vtkWin32OpenGLRenderWindow::MemoryBuffer [protected]

Definition at line 223 of file vtkWin32OpenGLRenderWindow.h.

unsigned char* vtkWin32OpenGLRenderWindow::MemoryData [protected]

Definition at line 224 of file vtkWin32OpenGLRenderWindow.h.

HDC vtkWin32OpenGLRenderWindow::MemoryHdc [protected]

Definition at line 225 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::ScreenMapped [protected]

Definition at line 227 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::ScreenWindowSize[2] [protected]

Definition at line 228 of file vtkWin32OpenGLRenderWindow.h.

HDC vtkWin32OpenGLRenderWindow::ScreenDeviceContext [protected]

Definition at line 229 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::ScreenDoubleBuffer [protected]

Definition at line 230 of file vtkWin32OpenGLRenderWindow.h.

HGLRC vtkWin32OpenGLRenderWindow::ScreenContextId [protected]

Definition at line 231 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::CreatingOffScreenWindow [protected]

Definition at line 233 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::CursorHidden [protected]

Definition at line 243 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::ForceMakeCurrent [protected]

Definition at line 244 of file vtkWin32OpenGLRenderWindow.h.

char* vtkWin32OpenGLRenderWindow::Capabilities [protected]

Definition at line 246 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::WindowIdReferenceCount [protected]

Definition at line 247 of file vtkWin32OpenGLRenderWindow.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkWin32OpenGLRenderWindow.h
