vtkInteractorStyleUnicam Class Reference

provides Unicam navigation style More...

#include <vtkInteractorStyleUnicam.h>

Inheritance diagram for vtkInteractorStyleUnicam:
Inheritance graph
[legend]

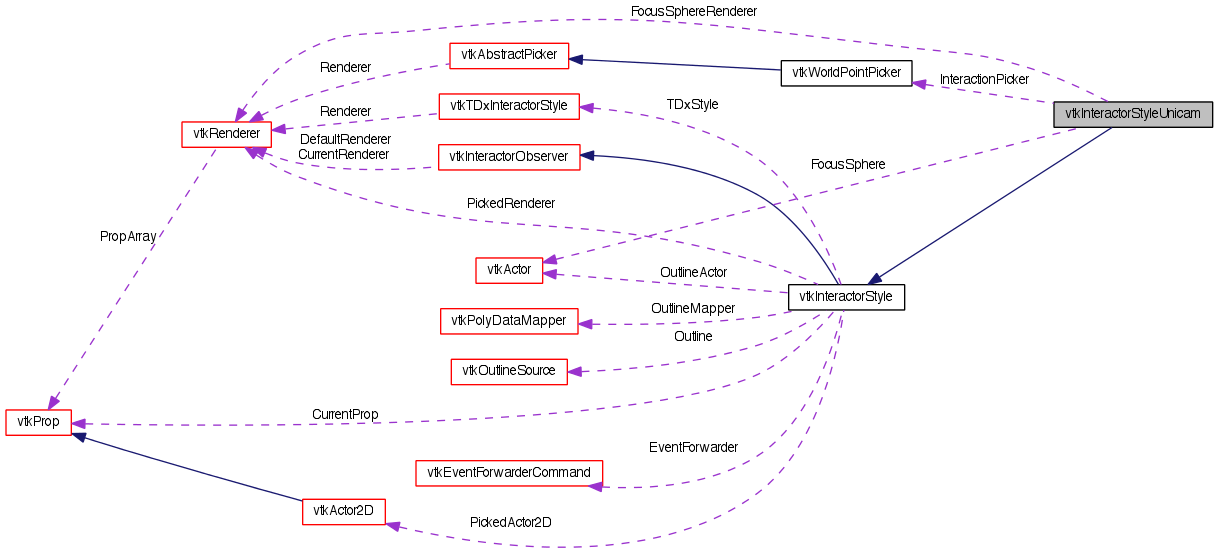

Collaboration diagram for vtkInteractorStyleUnicam:
Collaboration graph
[legend]

List of all members.

Public Types

typedef vtkInteractorStyle Superclass

Public Member Functions

virtual int IsA (const char *type)
vtkInteractorStyleUnicamNewInstance () const
void PrintSelf (ostream &os, vtkIndent indent)
void SetWorldUpVector (double a[3])
void SetWorldUpVector (double x, double y, double z)
virtual doubleGetWorldUpVector ()
virtual void GetWorldUpVector (double data[3])
virtual void OnTimer ()
virtual void OnMouseMove ()
virtual void OnLeftButtonDown ()
virtual void OnLeftButtonUp ()
virtual void OnLeftButtonMove ()

Static Public Member Functions

static vtkInteractorStyleUnicamNew ()
static int IsTypeOf (const char *type)
static vtkInteractorStyleUnicamSafeDownCast (vtkObjectBase *o)

Protected Member Functions

virtual vtkObjectBaseNewInstanceInternal () const
 vtkInteractorStyleUnicam ()
virtual ~vtkInteractorStyleUnicam ()
void ChooseXY (int X, int Y)
void RotateXY (int X, int Y)
void DollyXY (int X, int Y)
void PanXY (int X, int Y)
void MyTranslateCamera (double v[3])
void MyRotateCamera (double cx, double cy, double cz, double ax, double ay, double az, double angle)
void GetRightVandUpV (double *p, vtkCamera *cam, double *rightV, double *upV)
void NormalizeMouseXY (int X, int Y, double *NX, double *NY)
double WindowAspect ()

Protected Attributes

vtkWorldPointPickerInteractionPicker
int ButtonDown
double DTime
double Dist
double StartPix [2]
double LastPos [2]
double LastPix [2]
double DownPt [3]
double Center [3]
double WorldUpVector [3]
vtkActorFocusSphere
int IsDot
vtkRendererFocusSphereRenderer
int state

Detailed Description

provides Unicam navigation style

UniCam is a camera interactor. Here, just the primary features of the UniCam technique are implemented. UniCam requires just one mouse button and supports context sensitive dollying, panning, and rotation. (In this implementation, it uses the right mouse button, leaving the middle and left available for other functions.) For more information, see the paper at:

ftp://ftp.cs.brown.edu/pub/papers/graphics/research/unicam.pdf

The following is a brief description of the UniCam Camera Controls. You can perform 3 operations on the camera: rotate, pan, and dolly the camera. All operations are reached through the right mouse button & mouse movements.

IMPORTANT: UniCam assumes there is an axis that makes sense as a "up" vector for the world. By default, this axis is defined to be the vector <0,0,1>. You can set it explicitly for the data you are viewing with the 'SetWorldUpVector(..)' method in C++, or similarly in Tcl/Tk (or other interpreted languages).

  1. ROTATE:

Position the cursor over the point you wish to rotate around and press and release the left mouse button. A 'focus dot' appears indicating the point that will be the center of rotation. To rotate, press and hold the left mouse button and drag the mouse.. release the button to complete the rotation.

Rotations can be done without placing a focus dot first by moving the mouse cursor to within 10% of the window border & pressing and holding the left button followed by dragging the mouse. The last focus dot position will be re-used.

  1. PAN:

Click and hold the left mouse button, and initially move the mouse left or right. The point under the initial pick will pick correlate w/ the mouse tip-- (i.e., direct manipulation).

  1. DOLLY (+ PAN):

Click and hold the left mouse button, and initially move the mouse up or down. Moving the mouse down will dolly towards the picked point, and moving the mouse up will dolly away from it. Dollying occurs relative to the picked point which simplifies the task of dollying towards a region of interest. Left and right mouse movements will pan the camera left and right.

Warning:
(NOTE: This implementation of Unicam assumes a perspective camera. It could be modified relatively easily to also support an orthographic projection.)

Definition at line 108 of file vtkInteractorStyleUnicam.h.


Member Typedef Documentation

Reimplemented from vtkInteractorStyle.

Definition at line 112 of file vtkInteractorStyleUnicam.h.


Constructor & Destructor Documentation

virtual vtkInteractorStyleUnicam::~vtkInteractorStyleUnicam ( ) [protected, virtual]

Member Function Documentation

This class must be supplied with a vtkRenderWindowInteractor wrapper or parent. This class should not normally be instantiated by application programmers.

Reimplemented from vtkInteractorStyle.

static int vtkInteractorStyleUnicam::IsTypeOf ( const char *  name) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkInteractorStyle.

virtual int vtkInteractorStyleUnicam::IsA ( const char *  name) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkInteractorStyle.

Reimplemented from vtkInteractorStyle.

virtual vtkObjectBase* vtkInteractorStyleUnicam::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkInteractorStyle.

Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleUnicam::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkInteractorStyle.

Definition at line 115 of file vtkInteractorStyleUnicam.h.

virtual void vtkInteractorStyleUnicam::GetWorldUpVector ( double  data[3]) [virtual]
virtual void vtkInteractorStyleUnicam::OnMouseMove ( ) [virtual]

Concrete implementation of event bindings

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUnicam::OnLeftButtonDown ( ) [virtual]

Concrete implementation of event bindings

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUnicam::OnLeftButtonUp ( ) [virtual]

Concrete implementation of event bindings

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUnicam::OnLeftButtonMove ( ) [virtual]

Concrete implementation of event bindings

virtual void vtkInteractorStyleUnicam::OnTimer ( ) [virtual]

OnTimer calls RotateCamera, RotateActor etc which should be overridden by style subclasses.

Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleUnicam::ChooseXY ( int  X,
int  Y
) [protected]
void vtkInteractorStyleUnicam::RotateXY ( int  X,
int  Y
) [protected]
void vtkInteractorStyleUnicam::DollyXY ( int  X,
int  Y
) [protected]
void vtkInteractorStyleUnicam::PanXY ( int  X,
int  Y
) [protected]
void vtkInteractorStyleUnicam::MyRotateCamera ( double  cx,
double  cy,
double  cz,
double  ax,
double  ay,
double  az,
double  angle
) [protected]
void vtkInteractorStyleUnicam::GetRightVandUpV ( double p,
vtkCamera cam,
double rightV,
double upV
) [protected]
void vtkInteractorStyleUnicam::NormalizeMouseXY ( int  X,
int  Y,
double NX,
double NY
) [protected]

Member Data Documentation

Definition at line 135 of file vtkInteractorStyleUnicam.h.

Definition at line 137 of file vtkInteractorStyleUnicam.h.

Definition at line 138 of file vtkInteractorStyleUnicam.h.

Definition at line 139 of file vtkInteractorStyleUnicam.h.

Definition at line 140 of file vtkInteractorStyleUnicam.h.

Definition at line 141 of file vtkInteractorStyleUnicam.h.

Definition at line 142 of file vtkInteractorStyleUnicam.h.

Definition at line 143 of file vtkInteractorStyleUnicam.h.

Definition at line 144 of file vtkInteractorStyleUnicam.h.

Definition at line 146 of file vtkInteractorStyleUnicam.h.

Definition at line 148 of file vtkInteractorStyleUnicam.h.

Definition at line 149 of file vtkInteractorStyleUnicam.h.

Definition at line 150 of file vtkInteractorStyleUnicam.h.

Definition at line 152 of file vtkInteractorStyleUnicam.h.
