a widget to manipulate 3D parallelopipeds More...
#include <vtkParallelopipedWidget.h>

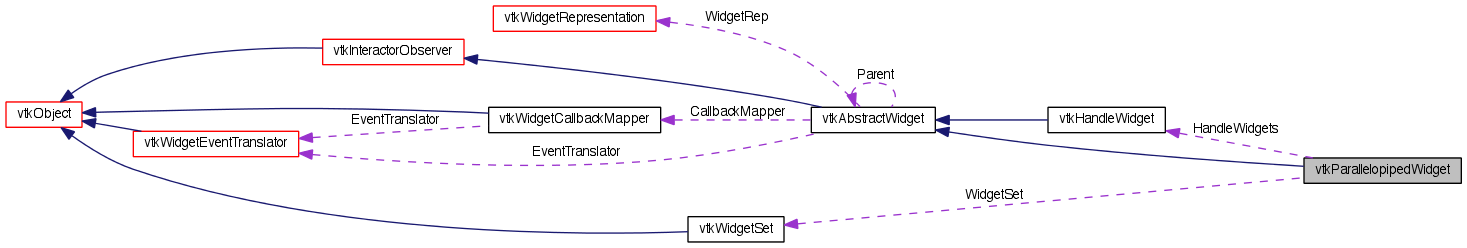

Detailed Description
a widget to manipulate 3D parallelopipeds
This widget was designed with the aim of visualizing / probing cuts on a skewed image data / structured grid.
- Interaction:
- The widget allows you to create a parallelopiped (defined by 8 handles). The widget is initially placed by using the "PlaceWidget" method in the representation class. After the widget has been created, the following interactions may be used to manipulate it : 1) Click on a handle and drag it around moves the handle in space, while keeping the same axis alignment of the parallelopiped 2) Dragging a handle with the shift button pressed resizes the piped along an axis. 3) Control-click on a handle creates a chair at that position. (A chair is a depression in the piped that allows you to visualize cuts in the volume). 4) Clicking on a chair and dragging it around moves the chair within the piped. 5) Shift-click on the piped enables you to translate it.
- Events:
- vtkCommand::DisableEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent vtkCommand::EnableEvent
Definition at line 56 of file vtkParallelopipedWidget.h.
Member Typedef Documentation
Standard macros implementing standard VTK methods.
Reimplemented from vtkAbstractWidget.
Definition at line 65 of file vtkParallelopipedWidget.h.
Member Enumeration Documentation
enum vtkParallelopipedWidget::WidgetEventIds [protected] |
Events invoked by this widget
Definition at line 137 of file vtkParallelopipedWidget.h.
Constructor & Destructor Documentation
| vtkParallelopipedWidget::vtkParallelopipedWidget | ( | ) | [protected] |
| vtkParallelopipedWidget::~vtkParallelopipedWidget | ( | ) | [protected] |
Member Function Documentation
| static vtkParallelopipedWidget* vtkParallelopipedWidget::New | ( | ) | [static] |
Instantiate the object.
Reimplemented from vtkObject.
| static int vtkParallelopipedWidget::IsTypeOf | ( | const char * | type | ) | [static] |
Standard macros implementing standard VTK methods.
Reimplemented from vtkAbstractWidget.
| virtual int vtkParallelopipedWidget::IsA | ( | const char * | type | ) | [virtual] |
Standard macros implementing standard VTK methods.
Reimplemented from vtkAbstractWidget.
| static vtkParallelopipedWidget* vtkParallelopipedWidget::SafeDownCast | ( | vtkObjectBase * | o | ) | [static] |
Standard macros implementing standard VTK methods.
Reimplemented from vtkAbstractWidget.
| virtual vtkObjectBase* vtkParallelopipedWidget::NewInstanceInternal | ( | ) | const [protected, virtual] |
Standard macros implementing standard VTK methods.
Reimplemented from vtkAbstractWidget.
Standard macros implementing standard VTK methods.
Reimplemented from vtkAbstractWidget.
| void vtkParallelopipedWidget::PrintSelf | ( | ostream & | os, |
| vtkIndent | indent | ||
| ) | [virtual] |
Standard macros implementing standard VTK methods.
Reimplemented from vtkAbstractWidget.
| virtual void vtkParallelopipedWidget::SetEnabled | ( | int | ) | [virtual] |
Override the superclass method. This is a composite widget, (it internally consists of handle widgets). We will override the superclass method, so that we can pass the enabled state to the internal widgets as well.
Reimplemented from vtkAbstractWidget.
| void vtkParallelopipedWidget::SetRepresentation | ( | vtkParallelopipedRepresentation * | r | ) | [inline] |
Specify an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp so it can be added to the renderer independent of the widget.
Definition at line 78 of file vtkParallelopipedWidget.h.
| vtkParallelopipedRepresentation* vtkParallelopipedWidget::GetParallelopipedRepresentation | ( | ) | [inline] |
Return the representation as a vtkParallelopipedRepresentation.
Definition at line 87 of file vtkParallelopipedWidget.h.
| virtual void vtkParallelopipedWidget::SetEnableChairCreation | ( | int | ) | [virtual] |
Enable/disable the creation of a chair on this widget. If off, chairs cannot be created.
| virtual int vtkParallelopipedWidget::GetEnableChairCreation | ( | ) | [virtual] |
Enable/disable the creation of a chair on this widget. If off, chairs cannot be created.
| virtual void vtkParallelopipedWidget::EnableChairCreationOn | ( | ) | [virtual] |
Enable/disable the creation of a chair on this widget. If off, chairs cannot be created.
| virtual void vtkParallelopipedWidget::EnableChairCreationOff | ( | ) | [virtual] |
Enable/disable the creation of a chair on this widget. If off, chairs cannot be created.
| void vtkParallelopipedWidget::CreateDefaultRepresentation | ( | ) | [virtual] |
Create the default widget representation if one is not set.
Implements vtkAbstractWidget.
| virtual void vtkParallelopipedWidget::SetProcessEvents | ( | int | ) | [virtual] |
Methods to change the whether the widget responds to interaction. Overridden to pass the state to component widgets.
Reimplemented from vtkAbstractWidget.
| static void vtkParallelopipedWidget::RequestResizeCallback | ( | vtkAbstractWidget * | ) | [static, protected] |
| static void vtkParallelopipedWidget::RequestResizeAlongAnAxisCallback | ( | vtkAbstractWidget * | ) | [static, protected] |
| static void vtkParallelopipedWidget::RequestChairModeCallback | ( | vtkAbstractWidget * | ) | [static, protected] |
| static void vtkParallelopipedWidget::TranslateCallback | ( | vtkAbstractWidget * | ) | [static, protected] |
| static void vtkParallelopipedWidget::OnMouseMoveCallback | ( | vtkAbstractWidget * | ) | [static, protected] |
| static void vtkParallelopipedWidget::OnLeftButtonUpCallback | ( | vtkAbstractWidget * | ) | [static, protected] |
| void vtkParallelopipedWidget::BeginTranslateAction | ( | vtkParallelopipedWidget * | dispatcher | ) | [protected] |
| void vtkParallelopipedWidget::TranslateAction | ( | vtkParallelopipedWidget * | dispatcher | ) | [protected] |
| void vtkParallelopipedWidget::SetCursor | ( | int | state | ) | [protected] |
| virtual void vtkParallelopipedWidget::ReportReferences | ( | vtkGarbageCollector * | collector | ) | [protected, virtual] |
Reimplemented from vtkObjectBase.
Friends And Related Function Documentation
friend class vtkWidgetSet [friend] |
Definition at line 59 of file vtkParallelopipedWidget.h.
Member Data Documentation
int vtkParallelopipedWidget::EnableChairCreation [protected] |
Definition at line 118 of file vtkParallelopipedWidget.h.
vtkHandleWidget** vtkParallelopipedWidget::HandleWidgets [protected] |
Definition at line 132 of file vtkParallelopipedWidget.h.
vtkWidgetSet* vtkParallelopipedWidget::WidgetSet [protected] |
Definition at line 146 of file vtkParallelopipedWidget.h.
The documentation for this class was generated from the following file:
- dox/Interaction/Widgets/vtkParallelopipedWidget.h
