vtkTableReader Class Reference

read vtkTable data file More...

#include <vtkTableReader.h>

Inheritance diagram for vtkTableReader:

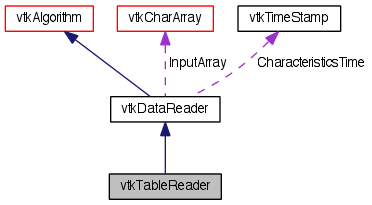

Collaboration diagram for vtkTableReader:

List of all members.

Public Types
typedef vtkDataReader	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkTableReader *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
vtkTable *	GetOutput ()
vtkTable *	GetOutput (int idx)
void	SetOutput (vtkTable *output)
Static Public Member Functions
static vtkTableReader *	New ()
static int	IsTypeOf (const char *type)
static vtkTableReader *	SafeDownCast (vtkObjectBase *o)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkTableReader ()
	~vtkTableReader ()
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	FillOutputPortInformation (int, vtkInformation *)

---

Detailed Description

read vtkTable data file

vtkTableReader is a source object that reads ASCII or binary vtkTable data files in vtk format. (see text for format details). The output of this reader is a single vtkTable data object. The superclass of this class, vtkDataReader, provides many methods for controlling the reading of the data file, see vtkDataReader for more information.

Warning:

Binary files written on one system may not be readable on other systems.

See also:

vtkTable vtkDataReader vtkTableWriter

Tests:

vtkTableReader (Tests)

Definition at line 41 of file vtkTableReader.h.

---

Member Typedef Documentation

typedef vtkDataReader vtkTableReader::Superclass

Reimplemented from vtkDataReader.

Reimplemented in vtkBiomTableReader.

Definition at line 45 of file vtkTableReader.h.

---

Constructor & Destructor Documentation

vtkTableReader::vtkTableReader

(

)

[protected]

vtkTableReader::~vtkTableReader

(

)

[protected]

---

Member Function Documentation

static vtkTableReader* vtkTableReader::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataReader.

Reimplemented in vtkBiomTableReader.

static int vtkTableReader::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataReader.

Reimplemented in vtkBiomTableReader.

virtual int vtkTableReader::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataReader.

Reimplemented in vtkBiomTableReader.

static vtkTableReader* vtkTableReader::SafeDownCast

(

vtkObjectBase *

o

)

[static]

Reimplemented from vtkDataReader.

Reimplemented in vtkBiomTableReader.

virtual vtkObjectBase* vtkTableReader::NewInstanceInternal

(

)

const [protected, virtual]

Reimplemented from vtkDataReader.

Reimplemented in vtkBiomTableReader.

vtkTableReader* vtkTableReader::NewInstance

(

)

const

Reimplemented from vtkDataReader.

Reimplemented in vtkBiomTableReader.

void vtkTableReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataReader.

Reimplemented in vtkBiomTableReader.

vtkTable* vtkTableReader::GetOutput

(

)

Get the output of this reader.

Reimplemented in vtkBiomTableReader.

vtkTable* vtkTableReader::GetOutput

(

int

idx

)

Get the output of this reader.

Reimplemented in vtkBiomTableReader.

void vtkTableReader::SetOutput

(

vtkTable *

output

)

Get the output of this reader.

Reimplemented in vtkBiomTableReader.

virtual int vtkTableReader::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)		[protected, virtual]

Reimplemented from vtkDataReader.

Reimplemented in vtkBiomTableReader.

virtual int vtkTableReader::RequestUpdateExtent	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)		[protected, virtual]

Reimplemented from vtkDataReader.

Reimplemented in vtkBiomTableReader.

virtual int vtkTableReader::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)		[protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkBiomTableReader.

---

The documentation for this class was generated from the following file:

• dox/IO/Legacy/vtkTableReader.h
