#include <vtkADIOSReader.h>

Inheritance diagram for vtkADIOSReader:

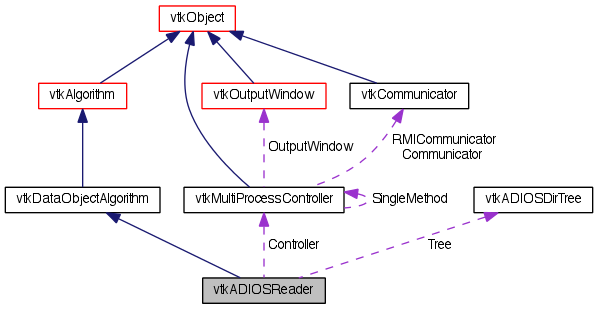

Collaboration diagram for vtkADIOSReader:

Public Types
typedef vtkDataObjectAlgorithm	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkADIOSReader *	NewInstance () const
virtual void	PrintSelf (ostream &os, vtkIndent indent)
int	CanReadFile (const char *name)

virtual void	SetFileName (const char *)
virtual char *	GetFileName ()

virtual int	GetReadMethod ()
virtual void	SetReadMethod (int)
void	SetReadMethodBP ()
void	SetReadMethodBPAggregate ()
void	SetReadMethodDataSpaces ()
void	SetReadMethodDIMES ()
void	SetReadMethodFlexPath ()

virtual void	SetReadMethodArguments (const char *)
virtual char *	GetReadMethodArguments ()

void	SetController (vtkMultiProcessController *)
virtual vtkMultiProcessController *	GetController ()

virtual int	ProcessRequest (vtkInformation , vtkInformationVector , vtkInformationVector )
Static Public Member Functions
static vtkADIOSReader *	New (void)
static int	IsTypeOf (const char *type)
static vtkADIOSReader *	SafeDownCast (vtkObjectBase *o)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
bool	OpenAndReadMetadata (void)
void	WaitForReads (void)
	vtkADIOSReader ()
virtual	~vtkADIOSReader ()
template<typename TObjectFun , typename TObjectData , typename TReturn >
void	AddPostReadOperation (TObjectData , TReturn(TObjectFun::)())
template<typename TObjectFun , typename TObjectData , typename TReturn , typename TArg1Fun , typename TArg1Data >
void	AddPostReadOperation (TObjectData , TReturn(TObjectFun::)(TArg1Fun), TArg1Data)
template<typename TObjectFun , typename TObjectData , typename TReturn , typename TArg1Fun , typename TArg1Data , typename TArg2Fun , typename TArg2Data >
void	AddPostReadOperation (TObjectData , TReturn(TObjectFun::)(TArg1Fun, TArg2Fun), TArg1Data, TArg2Data)
template<typename TObjectFun , typename TObjectData , typename TReturn , typename TArg1Fun , typename TArg1Data , typename TArg2Fun , typename TArg2Data , typename TArg3Fun , typename TArg3Data >
void	AddPostReadOperation (TObjectData , TReturn(TObjectFun::)(TArg1Fun, TArg2Fun, TArg3Fun), TArg1Data, TArg2Data, TArg3Data)
int	FillOutputPortInformation (int, vtkInformation *)
virtual int	RequestInformation (vtkInformation request, vtkInformationVector input, vtkInformationVector output)
virtual int	RequestUpdateExtent (vtkInformation request, vtkInformationVector input, vtkInformationVector output)
virtual int	RequestData (vtkInformation request, vtkInformationVector input, vtkInformationVector output)

template<typename T >
T *	ReadObject (const std::string &path, int blockId)

void	ReadObject (const ADIOS::VarInfo info, const vtkADIOSDirTree subDir, vtkDataArray *data, int blockId)
void	ReadObject (const vtkADIOSDirTree dir, vtkCellArray data, int blockId)
void	ReadObject (const vtkADIOSDirTree dir, vtkFieldData data, int blockId)
void	ReadObject (const vtkADIOSDirTree dir, vtkDataSetAttributes data, int blockId)
void	ReadObject (const vtkADIOSDirTree dir, vtkDataSet data, int blockId)
void	ReadObject (const vtkADIOSDirTree dir, vtkImageData data, int blockId)
void	ReadObject (const vtkADIOSDirTree dir, vtkPolyData data, int blockId)
void	ReadObject (const vtkADIOSDirTree dir, vtkUnstructuredGrid data, int blockId)
Protected Attributes
char *	FileName
int	ReadMethod
char *	ReadMethodArguments
vtkADIOSDirTree *	Tree
ADIOS::Reader *	Reader
vtkMultiProcessController *	Controller
std::vector< std::map < std::string, size_t > >	BlockStepIndexIdMap
std::vector< std::vector < std::vector< int > > >	BlockStepIndex
std::map< std::pair< int, size_t >, std::pair< int, vtkSmartPointer< vtkObject > > >	ObjectCache
std::queue< BaseFunctor * >	PostReadOperations
int	NumberOfPieces
std::vector< double >	TimeSteps
std::map< double, size_t >	TimeStepsIndex
double	RequestStep
int	RequestStepIndex
int	RequestNumberOfPieces
int	RequestPiece

Detailed Description

Read ADIOS files.

vtkADIOSReader is the base class for all ADIOS readers

Tests:: vtkADIOSReader (Tests)

Definition at line 61 of file vtkADIOSReader.h.

Member Typedef Documentation

typedef vtkDataObjectAlgorithm vtkADIOSReader::Superclass

Reimplemented from vtkDataObjectAlgorithm.

Definition at line 65 of file vtkADIOSReader.h.

Constructor & Destructor Documentation

vtkADIOSReader::vtkADIOSReader ( ) [protected]

virtual vtkADIOSReader::~vtkADIOSReader ( ) [protected, virtual]

Member Function Documentation

static vtkADIOSReader* vtkADIOSReader::New ( void ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObjectAlgorithm.

static int vtkADIOSReader::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataObjectAlgorithm.

virtual int vtkADIOSReader::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataObjectAlgorithm.

static vtkADIOSReader* vtkADIOSReader::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkDataObjectAlgorithm.

virtual vtkObjectBase* vtkADIOSReader::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkDataObjectAlgorithm.

vtkADIOSReader* vtkADIOSReader::NewInstance ( ) const

Reimplemented from vtkDataObjectAlgorithm.

virtual void vtkADIOSReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObjectAlgorithm.

int vtkADIOSReader::CanReadFile ( const char * name )

Test wether or not a given file should even be attempted for use with this reader.

virtual void vtkADIOSReader::SetFileName ( const char * ) [virtual]

Get/Set the inut filename

virtual char* vtkADIOSReader::GetFileName ( ) [virtual]

Get/Set the inut filename

virtual int vtkADIOSReader::GetReadMethod ( ) [virtual]

Get/Set the ADIOS read method

virtual void vtkADIOSReader::SetReadMethod ( int ) [virtual]

Get/Set the ADIOS read method

void vtkADIOSReader::SetReadMethodBP ( ) [inline]

Get/Set the ADIOS read method

Definition at line 84 of file vtkADIOSReader.h.

void vtkADIOSReader::SetReadMethodBPAggregate ( ) [inline]

Get/Set the ADIOS read method

Definition at line 85 of file vtkADIOSReader.h.

void vtkADIOSReader::SetReadMethodDataSpaces ( ) [inline]

Get/Set the ADIOS read method

Definition at line 86 of file vtkADIOSReader.h.

void vtkADIOSReader::SetReadMethodDIMES ( ) [inline]

Get/Set the ADIOS read method

Definition at line 87 of file vtkADIOSReader.h.

void vtkADIOSReader::SetReadMethodFlexPath ( ) [inline]

Get/Set the ADIOS read method

Definition at line 88 of file vtkADIOSReader.h.

virtual void vtkADIOSReader::SetReadMethodArguments ( const char * ) [virtual]

Get/Set arguments to the ADIOS read method.

virtual char* vtkADIOSReader::GetReadMethodArguments ( ) [virtual]

Get/Set arguments to the ADIOS read method.

void vtkADIOSReader::SetController ( vtkMultiProcessController * )

Set the MPI controller.

virtual vtkMultiProcessController* vtkADIOSReader::GetController ( ) [virtual]

Set the MPI controller.

virtual int vtkADIOSReader::ProcessRequest	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)		`[virtual]`

The main interface which triggers the reader to start

Reimplemented from vtkDataObjectAlgorithm.

bool vtkADIOSReader::OpenAndReadMetadata ( void ) [protected]

Open an ADIOS file and build the directory structure

void vtkADIOSReader::WaitForReads ( void ) [protected]

Wait for all scheduled array reads to finish

template<typename T >

T* vtkADIOSReader::ReadObject	(	const std::string &	path,
		int	blockId
	)		`[protected]`

Create a VTK object with it's scalar values and allocate any arrays, and schedule them for reading

void vtkADIOSReader::ReadObject	(	const ADIOS::VarInfo *	info,
		const vtkADIOSDirTree *	subDir,
		vtkDataArray *	data,
		int	blockId
	)		`[protected]`
