vtkAbstractInteractionDevice Class Reference

#include <vtkAbstractInteractionDevice.h>

Inheritance diagram for vtkAbstractInteractionDevice:

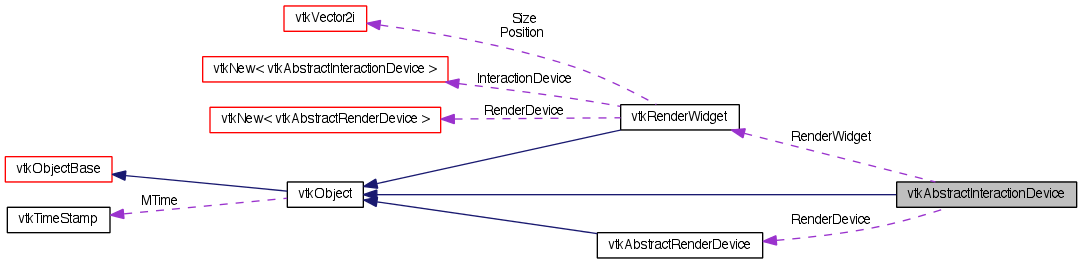

Collaboration diagram for vtkAbstractInteractionDevice:

List of all members.

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkAbstractInteractionDevice *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Initialize ()=0
	Initialize the interaction device.
virtual void	Start ()=0
	Start the event loop.
virtual void	ProcessEvents ()=0
	Process any pending events, this can be used to process OS level events without running a full event loop.
void	SetRenderWidget (vtkRenderWidget *widget)
vtkRenderWidget *	GetRenderWidget ()
void	SetRenderDevice (vtkAbstractRenderDevice *device)
vtkAbstractRenderDevice *	GetRenderDevice ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkAbstractInteractionDevice *	SafeDownCast (vtkObjectBase *o)
static vtkAbstractInteractionDevice *	New ()
	Make a new device, this class is abstract and one of its derived forms will be returned, or NULL if no override has been provided.
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkAbstractInteractionDevice ()
	~vtkAbstractInteractionDevice ()
Protected Attributes
bool	Initialized
vtkRenderWidget *	RenderWidget
vtkAbstractRenderDevice *	RenderDevice

---

Detailed Description

Definition at line 23 of file vtkAbstractInteractionDevice.h.

---

Member Typedef Documentation

typedef vtkObject vtkAbstractInteractionDevice::Superclass

Reimplemented from vtkObject.

Reimplemented in vtkXInteractionDevice.

Definition at line 26 of file vtkAbstractInteractionDevice.h.

---

Constructor & Destructor Documentation

vtkAbstractInteractionDevice::vtkAbstractInteractionDevice

(

)

[protected]

vtkAbstractInteractionDevice::~vtkAbstractInteractionDevice

(

)

[protected]

---

Member Function Documentation

static int vtkAbstractInteractionDevice::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkXInteractionDevice.

virtual int vtkAbstractInteractionDevice::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkXInteractionDevice.

static vtkAbstractInteractionDevice* vtkAbstractInteractionDevice::SafeDownCast

(

vtkObjectBase *

o

)

[static]

Reimplemented from vtkObject.

Reimplemented in vtkXInteractionDevice.

virtual vtkObjectBase* vtkAbstractInteractionDevice::NewInstanceInternal

(

)

const [protected, virtual]

Reimplemented from vtkObject.

Reimplemented in vtkXInteractionDevice.

vtkAbstractInteractionDevice* vtkAbstractInteractionDevice::NewInstance

(

)

const

Reimplemented from vtkObject.

Reimplemented in vtkXInteractionDevice.

void vtkAbstractInteractionDevice::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkXInteractionDevice.

static vtkAbstractInteractionDevice* vtkAbstractInteractionDevice::New

(

)

[static]

Make a new device, this class is abstract and one of its derived forms will be returned, or NULL if no override has been provided.

Returns:

A derived interaction device, or NULL if no suitable override is set.

Reimplemented from vtkObject.

Reimplemented in vtkXInteractionDevice.

virtual void vtkAbstractInteractionDevice::Initialize

(

)

[pure virtual]

Initialize the interaction device.

Implemented in vtkXInteractionDevice.

virtual void vtkAbstractInteractionDevice::Start

(

)

[pure virtual]

Start the event loop.

Implemented in vtkXInteractionDevice.

virtual void vtkAbstractInteractionDevice::ProcessEvents

(

)

[pure virtual]

Process any pending events, this can be used to process OS level events without running a full event loop.

Implemented in vtkXInteractionDevice.

void vtkAbstractInteractionDevice::SetRenderWidget

(

vtkRenderWidget *

widget

)

vtkRenderWidget* vtkAbstractInteractionDevice::GetRenderWidget

(

)

[inline]

Definition at line 53 of file vtkAbstractInteractionDevice.h.

void vtkAbstractInteractionDevice::SetRenderDevice

(

vtkAbstractRenderDevice *

device

)

vtkAbstractRenderDevice* vtkAbstractInteractionDevice::GetRenderDevice

(

)

[inline]

Definition at line 55 of file vtkAbstractInteractionDevice.h.

---

Member Data Documentation

bool vtkAbstractInteractionDevice::Initialized [protected]

Definition at line 61 of file vtkAbstractInteractionDevice.h.

vtkRenderWidget* vtkAbstractInteractionDevice::RenderWidget [protected]

Definition at line 62 of file vtkAbstractInteractionDevice.h.

vtkAbstractRenderDevice* vtkAbstractInteractionDevice::RenderDevice [protected]

Definition at line 63 of file vtkAbstractInteractionDevice.h.

---

The documentation for this class was generated from the following file:

• /Users/kitware/Dashboards/MyTests/VTK_BLD_Release_docs/Utilities/Doxygen/dox/Rendering/Core/vtkAbstractInteractionDevice.h
