vtkColorMaterialHelper Class Reference

a helper to assist in simulating the ColorMaterial behaviour of the default OpenGL pipeline. More...

#include <vtkColorMaterialHelper.h>

Inheritance diagram for vtkColorMaterialHelper:

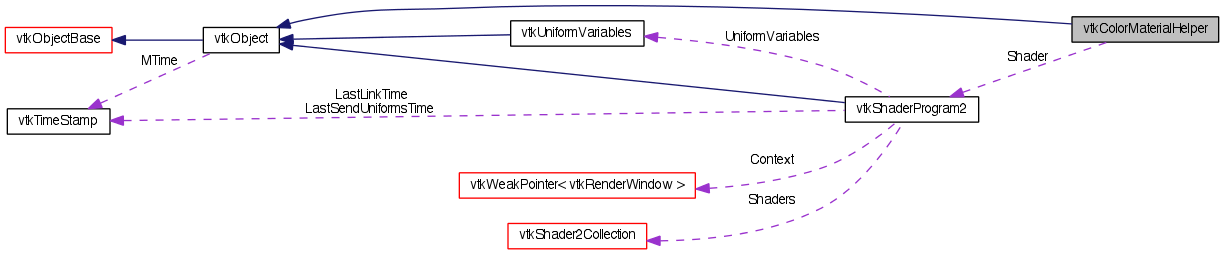

Collaboration diagram for vtkColorMaterialHelper:

List of all members.

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkColorMaterialHelper *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
void	Initialize (vtkShaderProgram2 *)
virtual vtkShaderProgram2 *	GetShader ()
void	SetUniformVariables ()
void	PrepareForRendering ()
void	Render ()
Static Public Member Functions
static vtkColorMaterialHelper *	New ()
static int	IsTypeOf (const char *type)
static vtkColorMaterialHelper *	SafeDownCast (vtkObjectBase *o)
Protected Types
enum	eMaterialParamater {   DISABLED = 0, AMBIENT = 1, DIFFUSE = 2, SPECULAR = 3,   AMBIENT_AND_DIFFUSE = 4, EMISSION = 5 }
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkColorMaterialHelper ()
	~vtkColorMaterialHelper ()
void	SetShader (vtkShaderProgram2 *)
Protected Attributes
vtkShaderProgram2 *	Shader
eMaterialParamater	Mode

---

Detailed Description

a helper to assist in simulating the ColorMaterial behaviour of the default OpenGL pipeline.

vtkColorMaterialHelper is a helper to assist in simulating the ColorMaterial behaviour of the default OpenGL pipeline. Look at vtkColorMaterialHelper_s for available GLSL functions.

See also:

vtkShaderProgram2

Definition at line 36 of file vtkColorMaterialHelper.h.

---

Member Typedef Documentation

typedef vtkObject vtkColorMaterialHelper::Superclass

Reimplemented from vtkObject.

Definition at line 40 of file vtkColorMaterialHelper.h.

---

Member Enumeration Documentation

enum vtkColorMaterialHelper::eMaterialParamater [protected]

Enumerator:

DISABLED
AMBIENT
DIFFUSE
SPECULAR
AMBIENT_AND_DIFFUSE
EMISSION

Definition at line 69 of file vtkColorMaterialHelper.h.

---

Constructor & Destructor Documentation

vtkColorMaterialHelper::vtkColorMaterialHelper

(

)

[protected]

vtkColorMaterialHelper::~vtkColorMaterialHelper

(

)

[protected]

---

Member Function Documentation

static vtkColorMaterialHelper* vtkColorMaterialHelper::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

static int vtkColorMaterialHelper::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkColorMaterialHelper::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkColorMaterialHelper* vtkColorMaterialHelper::SafeDownCast

(

vtkObjectBase *

o

)

[static]

Reimplemented from vtkObject.

virtual vtkObjectBase* vtkColorMaterialHelper::NewInstanceInternal

(

)

const [protected, virtual]

Reimplemented from vtkObject.

vtkColorMaterialHelper* vtkColorMaterialHelper::NewInstance

(

)

const

Reimplemented from vtkObject.

void vtkColorMaterialHelper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

void vtkColorMaterialHelper::Initialize

(

vtkShaderProgram2 *

)

virtual vtkShaderProgram2* vtkColorMaterialHelper::GetShader

(

)

[virtual]

void vtkColorMaterialHelper::SetUniformVariables

(

)

Capture current OpenGL state and initialize uniform variables used by the helper shader.

void vtkColorMaterialHelper::PrepareForRendering

(

)

Captures current OpenGL state. DEPRECATED (Use PrepareForRendering2 instead)

void vtkColorMaterialHelper::Render

(

)

Initializes uniform variables with the last captured OpenGL state. NOTHING IS RENDERED THIS SETS UNIFORMS. DEPRECATED: Use SetUnformVariables instead.

void vtkColorMaterialHelper::SetShader

(

vtkShaderProgram2 *

)

[protected]

---

Member Data Documentation

vtkShaderProgram2* vtkColorMaterialHelper::Shader [protected]

Definition at line 67 of file vtkColorMaterialHelper.h.

eMaterialParamater vtkColorMaterialHelper::Mode [protected]

Definition at line 78 of file vtkColorMaterialHelper.h.

---

The documentation for this class was generated from the following file:

• /Users/kitware/Dashboards/MyTests/VTK_BLD_Release_docs/Utilities/Doxygen/dox/Rendering/OpenGL/vtkColorMaterialHelper.h
