draw PointGaussians using imposters More...

#include <vtkOpenGLPointGaussianMapper.h>

Inheritance diagram for vtkOpenGLPointGaussianMapper:

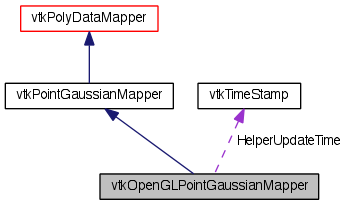

Collaboration diagram for vtkOpenGLPointGaussianMapper:

Public Types
typedef vtkPointGaussianMapper	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkOpenGLPointGaussianMapper *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
void	ReleaseGraphicsResources (vtkWindow *)
Static Public Member Functions
static vtkOpenGLPointGaussianMapper *	New ()
static int	IsTypeOf (const char *type)
static vtkOpenGLPointGaussianMapper *	SafeDownCast (vtkObjectBase *o)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkOpenGLPointGaussianMapper ()
	~vtkOpenGLPointGaussianMapper ()
virtual void	RenderPiece (vtkRenderer ren, vtkActor act)
Protected Attributes
vtkOpenGLPointGaussianMapperHelper *	Helper
vtkTimeStamp	HelperUpdateTime

Detailed Description

draw PointGaussians using imposters

An OpenGL mapper that uses imposters to draw PointGaussians. Supports transparency and picking as well.

Definition at line 29 of file vtkOpenGLPointGaussianMapper.h.

Member Typedef Documentation

typedef vtkPointGaussianMapper vtkOpenGLPointGaussianMapper::Superclass

Reimplemented from vtkPointGaussianMapper.

Definition at line 33 of file vtkOpenGLPointGaussianMapper.h.

Constructor & Destructor Documentation

vtkOpenGLPointGaussianMapper::vtkOpenGLPointGaussianMapper ( ) [protected]

vtkOpenGLPointGaussianMapper::~vtkOpenGLPointGaussianMapper ( ) [protected]

Member Function Documentation

static vtkOpenGLPointGaussianMapper* vtkOpenGLPointGaussianMapper::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPointGaussianMapper.

static int vtkOpenGLPointGaussianMapper::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPointGaussianMapper.

virtual int vtkOpenGLPointGaussianMapper::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPointGaussianMapper.

static vtkOpenGLPointGaussianMapper* vtkOpenGLPointGaussianMapper::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkPointGaussianMapper.

virtual vtkObjectBase* vtkOpenGLPointGaussianMapper::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkPointGaussianMapper.

vtkOpenGLPointGaussianMapper* vtkOpenGLPointGaussianMapper::NewInstance ( ) const

Reimplemented from vtkPointGaussianMapper.

void vtkOpenGLPointGaussianMapper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPointGaussianMapper.

void vtkOpenGLPointGaussianMapper::ReleaseGraphicsResources ( vtkWindow * ) [virtual]

Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkMapper.
