a cell that represents a 2D quadrilateral More...

#include <vtkQuad.h>

Inheritance diagram for vtkQuad:

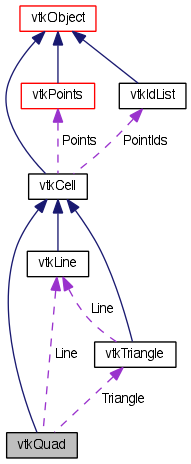

Collaboration diagram for vtkQuad:

Public Types
typedef vtkCell	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkQuad *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
int	GetParametricCenter (double pcoords[3])
int *	GetEdgeArray (int edgeId)

int	GetCellType ()
int	GetCellDimension ()
int	GetNumberOfEdges ()
int	GetNumberOfFaces ()
vtkCell *	GetEdge (int edgeId)
vtkCell *	GetFace (int)
int	CellBoundary (int subId, double pcoords[3], vtkIdList *pts)
void	Contour (double value, vtkDataArray cellScalars, vtkIncrementalPointLocator locator, vtkCellArray verts, vtkCellArray lines, vtkCellArray polys, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd)
int	EvaluatePosition (double x[3], double closestPoint, int &subId, double pcoords[3], double &dist2, double weights)
void	EvaluateLocation (int &subId, double pcoords[3], double x[3], double *weights)
int	IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)
int	Triangulate (int index, vtkIdList ptIds, vtkPoints pts)
void	Derivatives (int subId, double pcoords[3], double values, int dim, double derivs)
virtual double *	GetParametricCoords ()

void	Clip (double value, vtkDataArray cellScalars, vtkIncrementalPointLocator locator, vtkCellArray polys, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut)

virtual void	InterpolateFunctions (double pcoords[3], double sf[4])
virtual void	InterpolateDerivs (double pcoords[3], double derivs[8])
Static Public Member Functions
static vtkQuad *	New ()
static int	IsTypeOf (const char *type)
static vtkQuad *	SafeDownCast (vtkObjectBase *o)
static void	InterpolationFunctions (double pcoords[3], double sf[4])
static void	InterpolationDerivs (double pcoords[3], double derivs[8])
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkQuad ()
	~vtkQuad ()
Protected Attributes
vtkLine *	Line
vtkTriangle *	Triangle

Detailed Description

a cell that represents a 2D quadrilateral

vtkQuad is a concrete implementation of vtkCell to represent a 2D quadrilateral. vtkQuad is defined by the four points (0,1,2,3) in counterclockwise order. vtkQuad uses the standard isoparametric interpolation functions for a linear quadrilateral.

Examples:: vtkQuad (Examples)

Tests:: vtkQuad (Tests)

Definition at line 40 of file vtkQuad.h.

Member Typedef Documentation

typedef vtkCell vtkQuad::Superclass

Reimplemented from vtkCell.

Definition at line 44 of file vtkQuad.h.

Constructor & Destructor Documentation

vtkQuad::vtkQuad ( ) [protected]

vtkQuad::~vtkQuad ( ) [protected]

Member Function Documentation

static vtkQuad* vtkQuad::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

static int vtkQuad::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

virtual int vtkQuad::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

static vtkQuad* vtkQuad::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkCell.

virtual vtkObjectBase* vtkQuad::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkCell.

vtkQuad* vtkQuad::NewInstance ( ) const

Reimplemented from vtkCell.

void vtkQuad::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCell.

int vtkQuad::GetCellType ( ) [inline, virtual]
