#include <vtkStructuredImplicitConnectivity.h>

Inheritance diagram for vtkStructuredImplicitConnectivity:

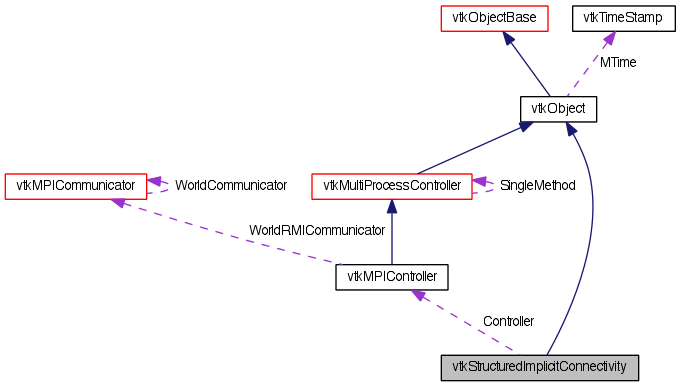

Collaboration diagram for vtkStructuredImplicitConnectivity:

Public Types
typedef vtkObject	Superclass
Public Member Functions
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	IsA (const char *type)
vtkStructuredImplicitConnectivity *	NewInstance () const
void	SetWholeExtent (int wholeExt[6])
	Sets the whole extent for the distributed structured domain.
void	RegisterGrid (const int gridID, int extent[6], vtkPoints gridPnts, vtkPointData pointData)
void	RegisterRectilinearGrid (const int gridID, int extent[6], vtkDataArray xcoords, vtkDataArray ycoords, vtkDataArray zcoords, vtkPointData pointData)
void	EstablishConnectivity ()
	Finds implicit connectivity for a distributed structured dataset.
bool	HasImplicitConnectivity ()
	Checks if there is implicit connectivity.
void	ExchangeData ()
	Exchanges one layer (row or column) of data between neighboring grids to fix the implicit connectivity.
void	GetOutputStructuredGrid (const int gridID, vtkStructuredGrid *grid)
	Gets the output structured grid instance on this process.
void	GetOutputImageData (const int gridID, vtkImageData *grid)
	Gets the output uniform grid instance on this process.
void	GetOutputRectilinearGrid (const int gridID, vtkRectilinearGrid *grid)
	Gets the output rectilinear grid instance on this process.
Static Public Member Functions
static vtkStructuredImplicitConnectivity *	New ()
static int	IsTypeOf (const char *type)
static vtkStructuredImplicitConnectivity *	SafeDownCast (vtkObjectBase *o)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkStructuredImplicitConnectivity ()
virtual	~vtkStructuredImplicitConnectivity ()
bool	GlobalDataDescriptionMatch ()
	Checks if the data description matches globally.
void	PackData (int ext[6], vtkMultiProcessStream &bytestream)
	Packs the data to send into a bytestream.
void	UnPackData (unsigned char *buffer, unsigned int size)
	Unpacks the data to the output grid.
void	AllocateBuffers (const int dim)
	Allocates send/rcv buffers needed to carry out the communication.
void	ComputeNeighbors ()
	Computes the neighbors with implicit connectivity.
void	ConstructOutput ()
	Constructs the output data-structures.
void	GrowGrid (const int dim)
	Grows grid along a given dimension.
void	UpdateNeighborList (const int dim)
	Updates the list of neighbors after growing the grid along the given dimension dim.
void	GetGlobalImplicitConnectivityState ()
	Gets whether there is implicit connectivity across all processes.
void	ExchangeExtents ()
	Exchanges extents among processes.
Protected Attributes
vtkMPIController *	Controller
vtk::detail::DomainMetaData *	DomainInfo
vtk::detail::StructuredGrid *	InputGrid
vtk::detail::StructuredGrid *	OutputGrid
vtk::detail::CommunicationManager *	CommManager

Detailed Description

a distributed structured dataset that is implicitly connected among partitions without abutting. This creates a gap between partitions and introduces a cell that spans multiple zones. This typically arises with finite difference grids, which are partitioned with respect to the nodes of the grid, or, when a filter samples the grid, e.g., to get a lower resolution representation.

This class is intended as a lower-level helper for higher level VTK filters that provides functionality for resolving the implicit connectivity (gap) between two or more partitions of a distributed structured dataset.

Warning:

The present implementation requires:

one block/grid per rank.
2-D (XY,YZ or XZ planes) or 3-D datasets.
node-center fields must match across processes.

Tests:: vtkStructuredImplicitConnectivity (Tests)

Definition at line 69 of file vtkStructuredImplicitConnectivity.h.

Member Typedef Documentation

typedef vtkObject vtkStructuredImplicitConnectivity::Superclass

Reimplemented from vtkObject.

Definition at line 75 of file vtkStructuredImplicitConnectivity.h.

Constructor & Destructor Documentation

vtkStructuredImplicitConnectivity::vtkStructuredImplicitConnectivity ( ) [protected]

virtual vtkStructuredImplicitConnectivity::~vtkStructuredImplicitConnectivity ( ) [protected, virtual]

Member Function Documentation

static vtkStructuredImplicitConnectivity* vtkStructuredImplicitConnectivity::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

void vtkStructuredImplicitConnectivity::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

static int vtkStructuredImplicitConnectivity::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkStructuredImplicitConnectivity::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkStructuredImplicitConnectivity* vtkStructuredImplicitConnectivity::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkObject.

virtual vtkObjectBase* vtkStructuredImplicitConnectivity::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkObject.

vtkStructuredImplicitConnectivity* vtkStructuredImplicitConnectivity::NewInstance ( ) const

Reimplemented from vtkObject.

void vtkStructuredImplicitConnectivity::SetWholeExtent ( int wholeExt[6] )

Sets the whole extent for the distributed structured domain.

Parameters:

wholeExt the extent of the entire domain (in).

Note:: All ranks must call this method with the same whole extent.

Postcondition:: this->DomainInfo != NULL

void vtkStructuredImplicitConnectivity::RegisterGrid	(	const int	gridID,
		int	extent[6],
		vtkPoints *	gridPnts,
		vtkPointData *	pointData
	)

void vtkStructuredImplicitConnectivity::RegisterRectilinearGrid	(	const int	gridID,
		int	extent[6],
		vtkDataArray *	xcoords,
		vtkDataArray *	ycoords,
		vtkDataArray *	zcoords,
		vtkPointData *	pointData
	)

void vtkStructuredImplicitConnectivity::EstablishConnectivity ( )

Finds implicit connectivity for a distributed structured dataset.

Note:: This is a collective operation, all ranks must call this method.

Precondition:: this->Controller != NULL; this->DomainInfo != NULL

bool vtkStructuredImplicitConnectivity::HasImplicitConnectivity ( )

Checks if there is implicit connectivity.

Returns:: status true if implicit connectivity in one or more dimensions.

void vtkStructuredImplicitConnectivity::ExchangeData ( )

Exchanges one layer (row or column) of data between neighboring grids to fix the implicit connectivity.

Note:: This is a collective operation, all ranks must call this method.

Precondition:: this->Controller != NULL; this->DomainInfo != NULL

void vtkStructuredImplicitConnectivity::GetOutputStructuredGrid	(	const int	gridID,
		vtkStructuredGrid *	grid
	)

Gets the output structured grid instance on this process.

Parameters:

gridID	the ID of the grid
grid	pointer to data-structure where to store the output.

void vtkStructuredImplicitConnectivity::GetOutputImageData	(	const int	gridID,
		vtkImageData *	grid
	)

Gets the output uniform grid instance on this process.

Parameters:

gridID	the ID of the grid.
grid	pointer to data-structure where to store the output.

void vtkStructuredImplicitConnectivity::GetOutputRectilinearGrid	(	const int	gridID,
		vtkRectilinearGrid *	grid
	)

Gets the output rectilinear grid instance on this process.

Parameters:

gridID	the ID of the grid.
grid	pointer to data-structure where to store the output.

bool vtkStructuredImplicitConnectivity::GlobalDataDescriptionMatch ( ) [protected]

Checks if the data description matches globally.

void vtkStructuredImplicitConnectivity::PackData	(	int	ext[6],
		vtkMultiProcessStream &	bytestream
	)		`[protected]`

Packs the data to send into a bytestream.

void vtkStructuredImplicitConnectivity::UnPackData	(	unsigned char *	buffer,
		unsigned int	size
	)		`[protected]`

Unpacks the data to the output grid.

void vtkStructuredImplicitConnectivity::AllocateBuffers ( const int dim ) [protected]

Allocates send/rcv buffers needed to carry out the communication.

void vtkStructuredImplicitConnectivity::ComputeNeighbors ( ) [protected]

Computes the neighbors with implicit connectivity.

void vtkStructuredImplicitConnectivity::ConstructOutput ( ) [protected]

Constructs the output data-structures.

void vtkStructuredImplicitConnectivity::GrowGrid ( const int dim ) [protected]

Grows grid along a given dimension.

Parameters:

dim	the dimension in query.

void vtkStructuredImplicitConnectivity::UpdateNeighborList ( const int dim ) [protected]

Updates the list of neighbors after growing the grid along the given dimension dim.

Parameters:

dim	the dimension in query.

void vtkStructuredImplicitConnectivity::GetGlobalImplicitConnectivityState ( ) [protected]

Gets whether there is implicit connectivity across all processes.

void vtkStructuredImplicitConnectivity::ExchangeExtents ( ) [protected]

Exchanges extents among processes.

Precondition:: this->Controller != NULL.

Note:: This method is collective operation. All ranks must call it.

Member Data Documentation

vtkMPIController* vtkStructuredImplicitConnectivity::Controller [protected]

Definition at line 152 of file vtkStructuredImplicitConnectivity.h.

vtk::detail::DomainMetaData* vtkStructuredImplicitConnectivity::DomainInfo [protected]

Definition at line 154 of file vtkStructuredImplicitConnectivity.h.

vtk::detail::StructuredGrid* vtkStructuredImplicitConnectivity::InputGrid [protected]

Definition at line 155 of file vtkStructuredImplicitConnectivity.h.

vtk::detail::StructuredGrid* vtkStructuredImplicitConnectivity::OutputGrid [protected]

Definition at line 156 of file vtkStructuredImplicitConnectivity.h.

vtk::detail::CommunicationManager* vtkStructuredImplicitConnectivity::CommManager [protected]

Definition at line 157 of file vtkStructuredImplicitConnectivity.h.

The documentation for this class was generated from the following file:

/Users/kitware/Dashboards/MyTests/VTK_BLD_Release_docs/Utilities/Doxygen/dox/Filters/ParallelMPI/vtkStructuredImplicitConnectivity.h
