imports VRML 2.0 files. More...

#include <vtkVRMLImporter.h>

Inheritance diagram for vtkVRMLImporter:

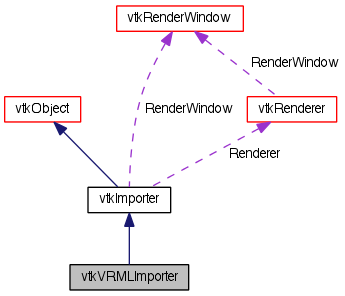

Collaboration diagram for vtkVRMLImporter:

Public Types
typedef vtkImporter	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkVRMLImporter *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
vtkObject *	GetVRMLDEFObject (const char *name)

virtual void	SetFileName (const char *)
virtual char *	GetFileName ()

virtual void	SetShapeResolution (int)
virtual int	GetShapeResolution ()
Static Public Member Functions
static vtkVRMLImporter *	New ()
static int	IsTypeOf (const char *type)
static vtkVRMLImporter *	SafeDownCast (vtkObjectBase *o)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkVRMLImporter ()
	~vtkVRMLImporter ()
int	OpenImportFile ()
virtual int	ImportBegin ()
virtual void	ImportEnd ()
virtual void	ImportActors (vtkRenderer *)
virtual void	ImportCameras (vtkRenderer *)
virtual void	ImportLights (vtkRenderer *)
virtual void	ImportProperties (vtkRenderer *)
FILE *	GetFileFD ()

virtual void	enterNode (const char *)
virtual void	exitNode ()
virtual void	enterField (const char *)
virtual void	exitField ()
virtual void	useNode (const char *)
Protected Attributes
char *	FileName
FILE *	FileFD
int	ShapeResolution
Friends
class	vtkVRMLYaccData

Detailed Description

imports VRML 2.0 files.

vtkVRMLImporter imports VRML 2.0 files into VTK.

Warning:: These nodes are currently supported: Appearance IndexedFaceSet Box IndexedLineSet Color Material Cone Shape Coordinate Sphere Cylinder Transform DirectionalLight; As you can see this implementation focuses on getting the geometry translated. The routes and scripting nodes are ignored since they deal with directly accessing a nodes internal structure based on the VRML spec. Since this is a translation the internal data structures differ greatly from the VRML spec and the External Authoring Interface (see the VRML spec). The DEF/USE mechanism does allow the VTK user to extract objects from the scene and directly manipulate them using the native language (Tcl, Python, Java, or whatever language VTK is wrapped in). This, in a way, removes the need for the route and script mechanism (not completely though). Texture coordinates are attached to the mesh is available but image textures are not loaded. Viewpoints (camera presets) are not imported.

Thanks:: Thanks to Russ Coucher of Areva for numerous bug fixes and a new test.

See also:: vtkImporter

Tests:: vtkVRMLImporter (Tests)

Definition at line 76 of file vtkVRMLImporter.h.

Member Typedef Documentation

typedef vtkImporter vtkVRMLImporter::Superclass

Reimplemented from vtkImporter.

Definition at line 81 of file vtkVRMLImporter.h.

Constructor & Destructor Documentation

vtkVRMLImporter::vtkVRMLImporter ( ) [protected]

vtkVRMLImporter::~vtkVRMLImporter ( ) [protected]

Member Function Documentation

static vtkVRMLImporter* vtkVRMLImporter::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

static int vtkVRMLImporter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImporter.

virtual int vtkVRMLImporter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImporter.

static vtkVRMLImporter* vtkVRMLImporter::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkImporter.

virtual vtkObjectBase* vtkVRMLImporter::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkImporter.

vtkVRMLImporter* vtkVRMLImporter::NewInstance ( ) const

Reimplemented from vtkImporter.

void vtkVRMLImporter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImporter.

virtual void vtkVRMLImporter::SetFileName ( const char * ) [virtual]

Specify the name of the file to read.

virtual char* vtkVRMLImporter::GetFileName ( ) [virtual]

Specify the name of the file to read.

virtual void vtkVRMLImporter::SetShapeResolution ( int ) [virtual]

Specify the resolution for Sphere, Cone and Cylinder shape sources. Default is 12.

virtual int vtkVRMLImporter::GetShapeResolution ( ) [virtual]

Specify the resolution for Sphere, Cone and Cylinder shape sources. Default is 12.

vtkObject* vtkVRMLImporter::GetVRMLDEFObject ( const char * name )

In the VRML spec you can DEF and USE nodes (name them), This routine will return the associated VTK object which was created as a result of the DEF mechanism Send in the name from the VRML file, get the VTK object. You will have to check and correctly cast the object since this only returns vtkObjects.

int vtkVRMLImporter::OpenImportFile ( ) [protected]

virtual int vtkVRMLImporter::ImportBegin ( ) [protected, virtual]

Reimplemented from vtkImporter.

virtual void vtkVRMLImporter::ImportEnd ( ) [protected, virtual]

Reimplemented from vtkImporter.

virtual void vtkVRMLImporter::ImportActors ( vtkRenderer * ) [inline, protected, virtual]

Reimplemented from vtkImporter.

Definition at line 111 of file vtkVRMLImporter.h.

virtual void vtkVRMLImporter::ImportCameras ( vtkRenderer * ) [inline, protected, virtual]

Reimplemented from vtkImporter.

Definition at line 112 of file vtkVRMLImporter.h.

virtual void vtkVRMLImporter::ImportLights ( vtkRenderer * ) [inline, protected, virtual]

Reimplemented from vtkImporter.

Definition at line 113 of file vtkVRMLImporter.h.

virtual void vtkVRMLImporter::ImportProperties ( vtkRenderer * ) [inline, protected, virtual]

Reimplemented from vtkImporter.

Definition at line 114 of file vtkVRMLImporter.h.

virtual void vtkVRMLImporter::enterNode ( const char * ) [protected, virtual]
