#include <vtkWebGLExporter.h>

Inheritance diagram for vtkWebGLExporter:

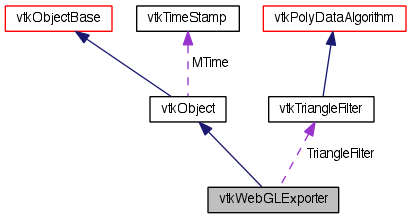

Collaboration diagram for vtkWebGLExporter:

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkWebGLExporter *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)

void	parseScene (vtkRendererCollection renderers, const char viewId, int parseType)
void	exportStaticScene (vtkRendererCollection *renderers, int width, int height, std::string path)
const char *	GenerateMetadata ()
const char *	GetId ()
vtkWebGLObject *	GetWebGLObject (int index)
int	GetNumberOfObjects ()
bool	hasChanged ()
void	SetCenterOfRotation (float a1, float a2, float a3)
void	SetMaxAllowedSize (int mesh, int lines)
void	SetMaxAllowedSize (int size)
Static Public Member Functions
static vtkWebGLExporter *	New ()
static int	IsTypeOf (const char *type)
static vtkWebGLExporter *	SafeDownCast (vtkObjectBase *o)
static void	ComputeMD5 (const unsigned char *content, int size, std::string &hash)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkWebGLExporter ()
	~vtkWebGLExporter ()
void	parseRenderer (vtkRenderer render, const char viewId, bool onlyWidget, void *mapTime)
void	generateRendererData (vtkRendererCollection renderers, const char viewId)
void	parseActor (vtkActor *actor, unsigned long actorTime, long rendererId, int layer, bool isWidget)
void	parseActor2D (vtkActor2D *actor, long actorTime, long renderId, int layer, bool isWidget)
const char *	GenerateExportMetadata ()
vtkTriangleFilter *	GetPolyData (vtkMapper *mapper, unsigned long &dataMTime)
Protected Attributes
vtkTriangleFilter *	TriangleFilter
double	CameraLookAt [10]
bool	GradientBackground
double	Background1 [3]
double	Background2 [3]
double	SceneSize [3]
std::string	SceneId
float	CenterOfRotation [3]
int	meshObjMaxSize
int	lineObjMaxSize
std::string	renderersMetaData
bool	hasWidget

Detailed Description

vtkWebGLExporter export the data of the scene to be used in the WebGL.

Definition at line 46 of file vtkWebGLExporter.h.

Member Typedef Documentation

typedef vtkObject vtkWebGLExporter::Superclass

Reimplemented from vtkObject.

Definition at line 50 of file vtkWebGLExporter.h.

Constructor & Destructor Documentation

vtkWebGLExporter::vtkWebGLExporter ( ) [protected]

vtkWebGLExporter::~vtkWebGLExporter ( ) [protected]

Member Function Documentation

static vtkWebGLExporter* vtkWebGLExporter::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

static int vtkWebGLExporter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkWebGLExporter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkWebGLExporter* vtkWebGLExporter::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkObject.

virtual vtkObjectBase* vtkWebGLExporter::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkObject.

vtkWebGLExporter* vtkWebGLExporter::NewInstance ( ) const

Reimplemented from vtkObject.

void vtkWebGLExporter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

void vtkWebGLExporter::parseScene	(	vtkRendererCollection *	renderers,
		const char *	viewId,
		int	parseType
	)
