vtkXYPlotRepresentation Class Reference

represent XY plot for vtkXYPlotWidget More...

#include <vtkXYPlotRepresentation.h>

Inheritance diagram for vtkXYPlotRepresentation:

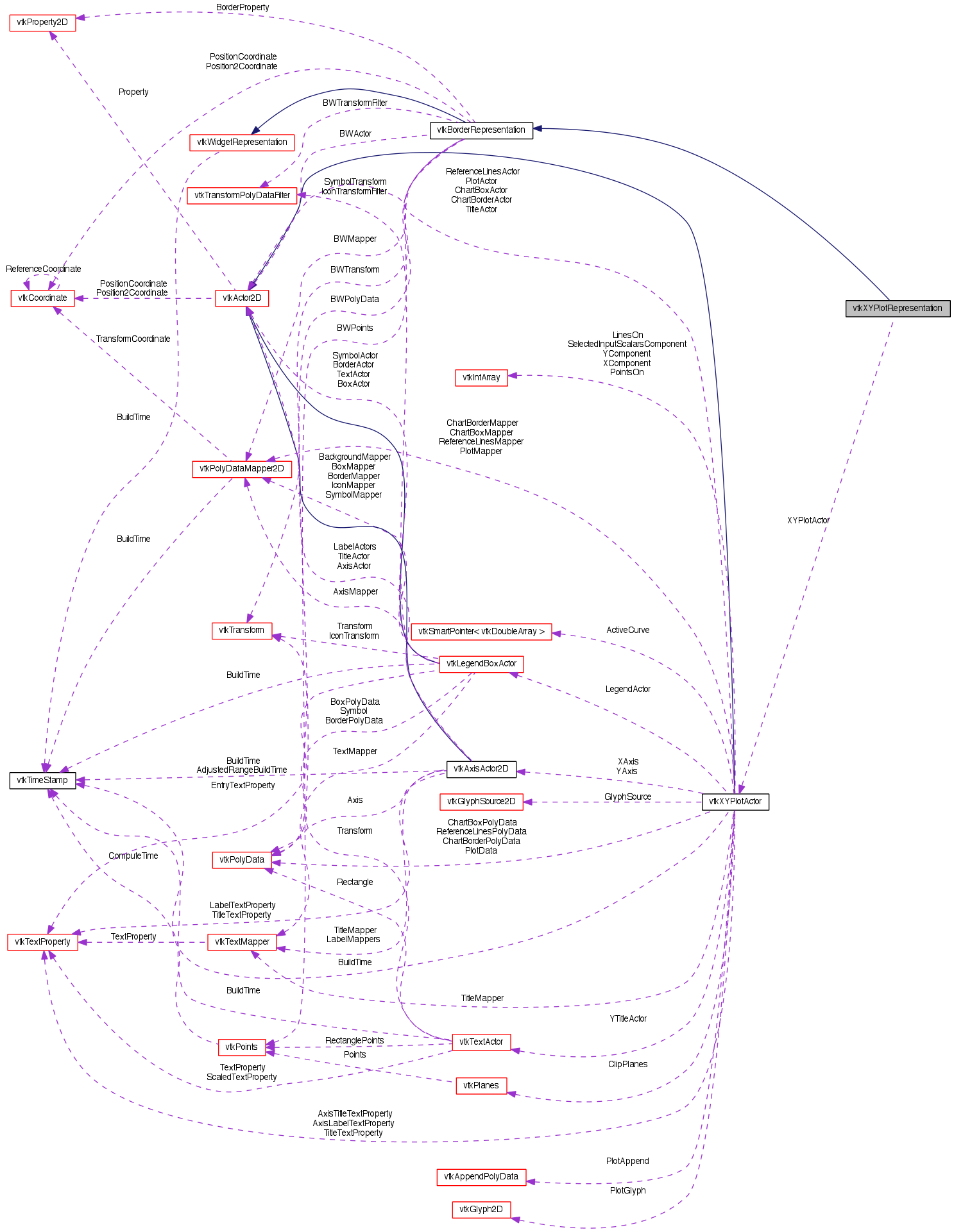

Collaboration diagram for vtkXYPlotRepresentation:

List of all members.

Public Types
typedef vtkBorderRepresentation	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkXYPlotRepresentation *	NewInstance () const
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual vtkXYPlotActor *	GetXYPlotActor ()
virtual void	SetXYPlotActor (vtkXYPlotActor *)
virtual void	BuildRepresentation ()
virtual void	WidgetInteraction (double eventPos[2])
virtual void	GetSize (double size[2])
virtual int	GetVisibility ()
virtual void	SetVisibility (int)
virtual void	GetActors2D (vtkPropCollection *collection)
virtual void	ReleaseGraphicsResources (vtkWindow *window)
virtual int	RenderOverlay (vtkViewport *)
virtual int	RenderOpaqueGeometry (vtkViewport *)
virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *)
virtual int	HasTranslucentPolygonalGeometry ()
void	SetGlyphSize (double x)
void	SetPlotGlyphType (int curve, int glyph)
void	SetTitle (const char *title)
void	SetTitleColor (double r, double g, double b)
void	SetTitleFontFamily (int x)
void	SetTitleBold (int x)
void	SetTitleItalic (int x)
void	SetTitleShadow (int x)
void	SetTitleFontSize (int x)
void	SetTitleJustification (int x)
void	SetTitleVerticalJustification (int x)
void	SetAdjustTitlePosition (int x)
void	SetTitlePosition (double x, double y)
void	SetXAxisColor (double r, double g, double b)
void	SetYAxisColor (double r, double g, double b)
void	SetXTitle (const char *ytitle)
char *	GetXTitle ()
void	SetXRange (double min, double max)
void	SetYTitle (const char *ytitle)
char *	GetYTitle ()
void	SetYRange (double min, double max)
void	SetYTitlePosition (int pos)
int	GetYTitlePosition () const
void	SetXValues (int x)
void	SetAxisTitleColor (double r, double g, double b)
void	SetAxisTitleFontFamily (int x)
void	SetAxisTitleBold (int x)
void	SetAxisTitleItalic (int x)
void	SetAxisTitleShadow (int x)
void	SetAxisTitleFontSize (int x)
void	SetAxisTitleJustification (int x)
void	SetAxisTitleVerticalJustification (int x)
void	SetAxisLabelColor (double r, double g, double b)
void	SetAxisLabelFontFamily (int x)
void	SetAxisLabelBold (int x)
void	SetAxisLabelItalic (int x)
void	SetAxisLabelShadow (int x)
void	SetAxisLabelFontSize (int x)
void	SetAxisLabelJustification (int x)
void	SetAxisLabelVerticalJustification (int x)
void	SetXLabelFormat (const char *_arg)
void	SetYLabelFormat (const char *_arg)
void	SetBorder (int x)
void	RemoveAllActiveCurves ()
void	AddUserCurvesPoint (double c, double x, double y)
void	SetLegend (int x)
void	SetLegendBorder (int b)
void	SetLegendBox (int b)
void	SetLegendBoxColor (double r, double g, double b)
void	SetLegendPosition (double x, double y)
void	SetLegendPosition2 (double x, double y)
void	SetLineWidth (double w)
void	SetPlotColor (int i, int r, int g, int b)
void	SetPlotLines (int i)
void	SetPlotPoints (int i)
void	SetPlotLabel (int i, const char *label)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkXYPlotRepresentation *	SafeDownCast (vtkObjectBase *o)
static vtkXYPlotRepresentation *	New ()
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkXYPlotRepresentation ()
	~vtkXYPlotRepresentation ()
Protected Attributes
vtkXYPlotActor *	XYPlotActor

---

Detailed Description

represent XY plot for vtkXYPlotWidget

This class represents a XY plot for a vtkXYPlotWidget. This class provides support for interactively placing a XY plot on the 2D overlay plane. The XY plot is defined by an instance of vtkXYPlotActor.

See also:

vtkXYPlotWidget vtkWidgetRepresentation vtkXYPlotActor

Thanks:

This class was written by Philippe Pebay, Kitware SAS 2012

Definition at line 40 of file vtkXYPlotRepresentation.h.

---

Member Typedef Documentation

typedef vtkBorderRepresentation vtkXYPlotRepresentation::Superclass

Define standard methods.

Reimplemented from vtkBorderRepresentation.

Definition at line 43 of file vtkXYPlotRepresentation.h.

---

Constructor & Destructor Documentation

vtkXYPlotRepresentation::vtkXYPlotRepresentation

(

)

[protected]

vtkXYPlotRepresentation::~vtkXYPlotRepresentation

(

)

[protected]

---

Member Function Documentation

static int vtkXYPlotRepresentation::IsTypeOf

(

const char *

type

)

[static]

Define standard methods.

Reimplemented from vtkBorderRepresentation.

virtual int vtkXYPlotRepresentation::IsA

(

const char *

type

)

[virtual]

Define standard methods.

Reimplemented from vtkBorderRepresentation.

static vtkXYPlotRepresentation* vtkXYPlotRepresentation::SafeDownCast

(

vtkObjectBase *

o

)

[static]

Define standard methods.

Reimplemented from vtkBorderRepresentation.

virtual vtkObjectBase* vtkXYPlotRepresentation::NewInstanceInternal

(

)

const [protected, virtual]

Define standard methods.

Reimplemented from vtkBorderRepresentation.

vtkXYPlotRepresentation* vtkXYPlotRepresentation::NewInstance

(

)

const

Define standard methods.

Reimplemented from vtkBorderRepresentation.

virtual void vtkXYPlotRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		[virtual]

Define standard methods.

Reimplemented from vtkBorderRepresentation.

static vtkXYPlotRepresentation* vtkXYPlotRepresentation::New

(

)

[static]

Instantiate this class.

Reimplemented from vtkBorderRepresentation.

virtual vtkXYPlotActor* vtkXYPlotRepresentation::GetXYPlotActor

(

)

[virtual]

The prop that is placed in the renderer.

virtual void vtkXYPlotRepresentation::SetXYPlotActor

(

vtkXYPlotActor *

)

[virtual]

The prop that is placed in the renderer.

virtual void vtkXYPlotRepresentation::BuildRepresentation

(

)

[virtual]

Satisfy the superclass' API.

Reimplemented from vtkBorderRepresentation.

virtual void vtkXYPlotRepresentation::WidgetInteraction

(

double

eventPos[2]

)

[virtual]

Satisfy the superclass' API.

Reimplemented from vtkBorderRepresentation.

virtual void vtkXYPlotRepresentation::GetSize

(

double

size[2]

)

[inline, virtual]

Satisfy the superclass' API.

Reimplemented from vtkBorderRepresentation.

Definition at line 57 of file vtkXYPlotRepresentation.h.

virtual int vtkXYPlotRepresentation::GetVisibility

(

)

[virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkProp.

virtual void vtkXYPlotRepresentation::SetVisibility

(

int

)

[virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkProp.

virtual void vtkXYPlotRepresentation::GetActors2D

(

vtkPropCollection *

collection

)

[virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkBorderRepresentation.

virtual void vtkXYPlotRepresentation::ReleaseGraphicsResources

(

vtkWindow *

window

)

[virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkBorderRepresentation.

virtual int vtkXYPlotRepresentation::RenderOverlay

(

vtkViewport *

)

[virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkBorderRepresentation.

virtual int vtkXYPlotRepresentation::RenderOpaqueGeometry

(

vtkViewport *

)

[virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkBorderRepresentation.

virtual int vtkXYPlotRepresentation::RenderTranslucentPolygonalGeometry

(

vtkViewport *

)

[virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkBorderRepresentation.

virtual int vtkXYPlotRepresentation::HasTranslucentPolygonalGeometry

(

)

[virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkBorderRepresentation.

void vtkXYPlotRepresentation::SetGlyphSize

(

double

x

)

Set glyph properties

void vtkXYPlotRepresentation::SetPlotGlyphType	(	int	curve,
		int	glyph
	)

Set glyph properties

void vtkXYPlotRepresentation::SetTitle

(

const char *

title

)

Set title properties

void vtkXYPlotRepresentation::SetTitleColor	(	double	r,
		double	g,
		double	b
	)

Set title properties

void vtkXYPlotRepresentation::SetTitleFontFamily

(

int

x

)

Set title properties

void vtkXYPlotRepresentation::SetTitleBold

(

int

x

)

Set title properties

void vtkXYPlotRepresentation::SetTitleItalic

(

int

x

)

Set title properties

void vtkXYPlotRepresentation::SetTitleShadow

(

int

x

)

Set title properties

void vtkXYPlotRepresentation::SetTitleFontSize

(

int

x

)

Set title properties

void vtkXYPlotRepresentation::SetTitleJustification

(

int

x

)

Set title properties

void vtkXYPlotRepresentation::SetTitleVerticalJustification

(

int

x

)

Set title properties

void vtkXYPlotRepresentation::SetAdjustTitlePosition

(

int

x

)

Set title properties

void vtkXYPlotRepresentation::SetTitlePosition	(	double	x,
		double	y
	)

Set title properties

void vtkXYPlotRepresentation::SetXAxisColor	(	double	r,
		double	g,
		double	b
	)

Set/Get axis properties

void vtkXYPlotRepresentation::SetYAxisColor	(	double	r,
		double	g,
		double	b
	)

Set/Get axis properties

void vtkXYPlotRepresentation::SetXTitle

(

const char *

ytitle

)

Set/Get axis properties

char* vtkXYPlotRepresentation::GetXTitle

(

)

Set/Get axis properties

void vtkXYPlotRepresentation::SetXRange	(	double	min,
		double	max
	)

Set/Get axis properties

void vtkXYPlotRepresentation::SetYTitle

(

const char *

ytitle

)

Set/Get axis properties

char* vtkXYPlotRepresentation::GetYTitle

(

)

Set/Get axis properties

void vtkXYPlotRepresentation::SetYRange	(	double	min,
		double	max
	)

Set/Get axis properties

void vtkXYPlotRepresentation::SetYTitlePosition

(

int

pos

)

Set/Get axis properties

int vtkXYPlotRepresentation::GetYTitlePosition

(

)

const

Set/Get axis properties

void vtkXYPlotRepresentation::SetXValues

(

int

x

)

Set/Get axis properties

void vtkXYPlotRepresentation::SetAxisTitleColor	(	double	r,
		double	g,
		double	b
	)

Set axis title properties

void vtkXYPlotRepresentation::SetAxisTitleFontFamily

(

int

x

)

Set axis title properties

void vtkXYPlotRepresentation::SetAxisTitleBold

(

int

x

)

Set axis title properties

void vtkXYPlotRepresentation::SetAxisTitleItalic

(

int

x

)

Set axis title properties

void vtkXYPlotRepresentation::SetAxisTitleShadow

(

int

x

)

Set axis title properties

void vtkXYPlotRepresentation::SetAxisTitleFontSize

(

int

x

)

Set axis title properties

void vtkXYPlotRepresentation::SetAxisTitleJustification

(

int

x

)

Set axis title properties

void vtkXYPlotRepresentation::SetAxisTitleVerticalJustification

(

int

x

)

Set axis title properties

void vtkXYPlotRepresentation::SetAxisLabelColor	(	double	r,
		double	g,
		double	b
	)

Set axis label properties

void vtkXYPlotRepresentation::SetAxisLabelFontFamily

(

int

x

)

Set axis label properties

void vtkXYPlotRepresentation::SetAxisLabelBold

(

int

x

)

Set axis label properties

void vtkXYPlotRepresentation::SetAxisLabelItalic

(

int

x

)

Set axis label properties

void vtkXYPlotRepresentation::SetAxisLabelShadow

(

int

x

)

Set axis label properties

void vtkXYPlotRepresentation::SetAxisLabelFontSize

(

int

x

)

Set axis label properties

void vtkXYPlotRepresentation::SetAxisLabelJustification

(

int

x

)

Set axis label properties

void vtkXYPlotRepresentation::SetAxisLabelVerticalJustification

(

int

x

)

Set axis label properties

void vtkXYPlotRepresentation::SetXLabelFormat

(

const char *

_arg

)

Set axis label properties

void vtkXYPlotRepresentation::SetYLabelFormat

(

const char *

_arg

)

Set axis label properties

void vtkXYPlotRepresentation::SetBorder

(

int

x

)

Set various properties

void vtkXYPlotRepresentation::RemoveAllActiveCurves

(

)

Set various properties

void vtkXYPlotRepresentation::AddUserCurvesPoint	(	double	c,
		double	x,
		double	y
	)

Set various properties

void vtkXYPlotRepresentation::SetLegend

(

int

x

)

Set various properties

void vtkXYPlotRepresentation::SetLegendBorder

(

int

b

)

Set various properties

void vtkXYPlotRepresentation::SetLegendBox

(

int

b

)

Set various properties

void vtkXYPlotRepresentation::SetLegendBoxColor	(	double	r,
		double	g,
		double	b
	)

Set various properties

void vtkXYPlotRepresentation::SetLegendPosition	(	double	x,
		double	y
	)

Set various properties

void vtkXYPlotRepresentation::SetLegendPosition2	(	double	x,
		double	y
	)

Set various properties

void vtkXYPlotRepresentation::SetLineWidth

(

double

w

)

Set various properties

void vtkXYPlotRepresentation::SetPlotColor	(	int	i,
		int	r,
		int	g,
		int	b
	)

Set various properties

void vtkXYPlotRepresentation::SetPlotLines

(

int

i

)

Set various properties

void vtkXYPlotRepresentation::SetPlotPoints

(

int

i

)

Set various properties

void vtkXYPlotRepresentation::SetPlotLabel	(	int	i,
		const char *	label
	)

Set various properties

---

Member Data Documentation

vtkXYPlotActor* vtkXYPlotRepresentation::XYPlotActor [protected]

Definition at line 158 of file vtkXYPlotRepresentation.h.

---

The documentation for this class was generated from the following file:

• /Users/kitware/Dashboards/MyTests/VTK_BLD_Release_docs/Utilities/Doxygen/dox/Interaction/Widgets/vtkXYPlotRepresentation.h
