vtk3DSImporter Class Reference

imports 3D Studio files. More...

#include <vtk3DSImporter.h>

Inheritance diagram for vtk3DSImporter:

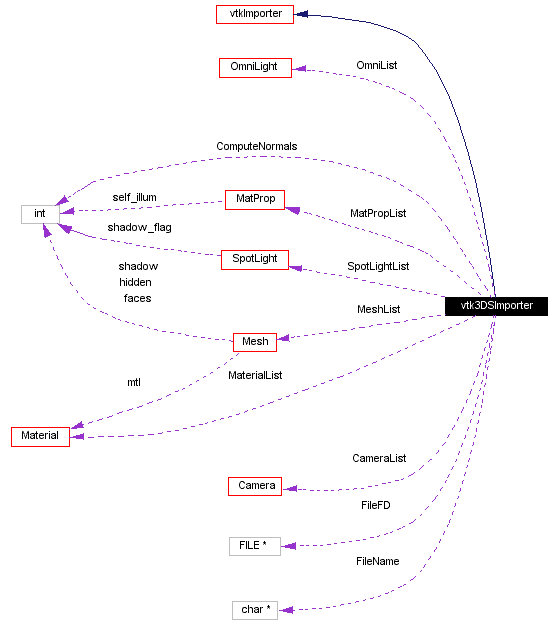

[legend]Collaboration diagram for vtk3DSImporter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
FILE *	GetFileFD ()
virtual void	SetFileName (const char *)
virtual char *	GetFileName ()
virtual void	SetComputeNormals (int)
virtual int	GetComputeNormals ()
virtual void	ComputeNormalsOn ()
virtual void	ComputeNormalsOff ()
Static Public Methods
vtk3DSImporter *	New ()
int	IsTypeOf (const char *type)
vtk3DSImporter *	SafeDownCast (vtkObject *o)
Public Attributes
OmniLight *	OmniList
SpotLight *	SpotLightList
Camera *	CameraList
Mesh *	MeshList
Material *	MaterialList
MatProp *	MatPropList
Protected Methods
	vtk3DSImporter ()
	~vtk3DSImporter ()
virtual int	ImportBegin ()
virtual void	ImportEnd ()
virtual void	ImportActors (vtkRenderer *renderer)
virtual void	ImportCameras (vtkRenderer *renderer)
virtual void	ImportLights (vtkRenderer *renderer)
virtual void	ImportProperties (vtkRenderer *renderer)
vtkPolyData *	GeneratePolyData (Mesh *meshPtr)
int	Read3DS ()
Protected Attributes
char *	FileName
FILE *	FileFD
int	ComputeNormals

---

Detailed Description

imports 3D Studio files.

Date:

2001/10/11 13:37:22

Revision:

1.16

vtk3DSImporter imports 3D Studio files into vtk.

See also:

vtkImporter

Examples:

vtk3DSImporter (Examples)

Tests:

vtk3DSImporter (Tests)

Definition at line 66 of file vtk3DSImporter.h.

---

Constructor & Destructor Documentation

vtk3DSImporter::vtk3DSImporter (    )  [protected]

vtk3DSImporter::~vtk3DSImporter (    )  [protected]

---

Member Function Documentation

vtk3DSImporter* vtk3DSImporter::New (    )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtk3DSImporter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImporter.

int vtk3DSImporter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImporter.

virtual int vtk3DSImporter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImporter.

vtk3DSImporter* vtk3DSImporter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImporter.

void vtk3DSImporter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImporter.

virtual void vtk3DSImporter::SetFileName (  const char *    )  [virtual]

Specify the name of the file to read.

virtual char* vtk3DSImporter::GetFileName (    )  [virtual]

Specify the name of the file to read.

virtual void vtk3DSImporter::SetComputeNormals (  int    )  [virtual]

Set/Get the computation of normals. If on, imported geometry will be run through vtkPolyDataNormals.

virtual int vtk3DSImporter::GetComputeNormals (    )  [virtual]

Set/Get the computation of normals. If on, imported geometry will be run through vtkPolyDataNormals.

virtual void vtk3DSImporter::ComputeNormalsOn (    )  [virtual]

Set/Get the computation of normals. If on, imported geometry will be run through vtkPolyDataNormals.

virtual void vtk3DSImporter::ComputeNormalsOff (    )  [virtual]

Set/Get the computation of normals. If on, imported geometry will be run through vtkPolyDataNormals.

FILE* vtk3DSImporter::GetFileFD (    )  [inline]

Return the file pointer to the open file. Definition at line 89 of file vtk3DSImporter.h.

virtual int vtk3DSImporter::ImportBegin (    )  [protected, virtual]

Reimplemented from vtkImporter.

virtual void vtk3DSImporter::ImportEnd (    )  [protected, virtual]

Reimplemented from vtkImporter.

virtual void vtk3DSImporter::ImportActors (  vtkRenderer *    renderer )  [protected, virtual]

virtual void vtk3DSImporter::ImportCameras (  vtkRenderer *    renderer )  [protected, virtual]

virtual void vtk3DSImporter::ImportLights (  vtkRenderer *    renderer )  [protected, virtual]

virtual void vtk3DSImporter::ImportProperties (  vtkRenderer *    renderer )  [protected, virtual]

vtkPolyData* vtk3DSImporter::GeneratePolyData (  Mesh *    meshPtr )  [protected]

int vtk3DSImporter::Read3DS (    )  [protected]

---

Member Data Documentation

OmniLight* vtk3DSImporter::OmniList

Definition at line 91 of file vtk3DSImporter.h.

SpotLight* vtk3DSImporter::SpotLightList

Definition at line 92 of file vtk3DSImporter.h.

Camera* vtk3DSImporter::CameraList

Definition at line 93 of file vtk3DSImporter.h.

Mesh* vtk3DSImporter::MeshList

Definition at line 94 of file vtk3DSImporter.h.

Material* vtk3DSImporter::MaterialList

Definition at line 95 of file vtk3DSImporter.h.

MatProp* vtk3DSImporter::MatPropList

Definition at line 96 of file vtk3DSImporter.h.

char* vtk3DSImporter::FileName [protected]

Definition at line 111 of file vtk3DSImporter.h.

FILE* vtk3DSImporter::FileFD [protected]

Definition at line 112 of file vtk3DSImporter.h.

int vtk3DSImporter::ComputeNormals [protected]

Definition at line 113 of file vtk3DSImporter.h.

---

The documentation for this class was generated from the following file:

• Hybrid/vtk3DSImporter.h

---
