vtkCellDataToPointData Class Reference

map cell data to point data. More...

#include <vtkCellDataToPointData.h>

Inheritance diagram for vtkCellDataToPointData:

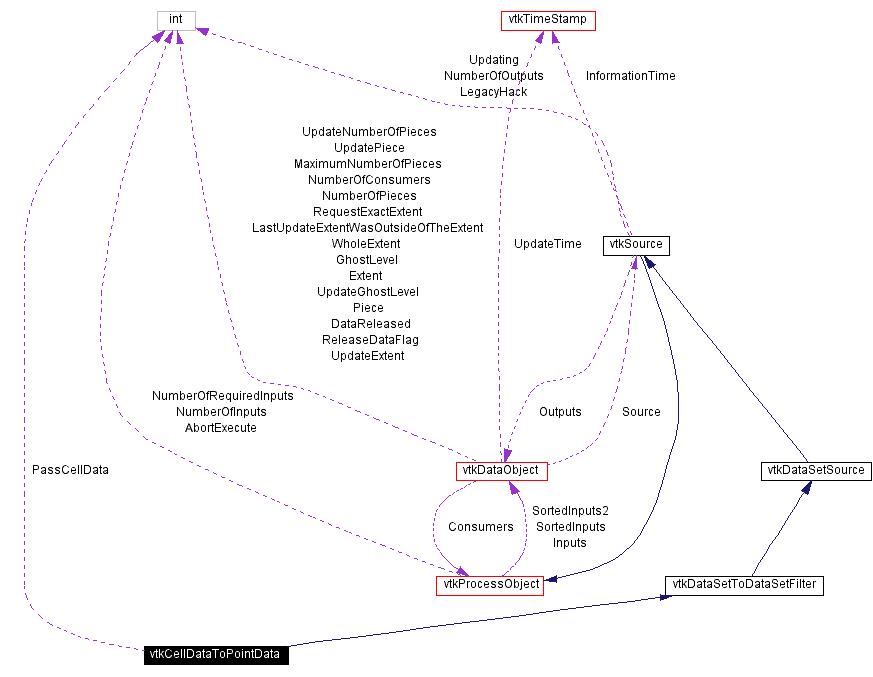

[legend]Collaboration diagram for vtkCellDataToPointData:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetPassCellData (int)
virtual int	GetPassCellData ()
virtual void	PassCellDataOn ()
virtual void	PassCellDataOff ()
Static Public Methods
vtkCellDataToPointData *	New ()
int	IsTypeOf (const char *type)
vtkCellDataToPointData *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkCellDataToPointData ()
	~vtkCellDataToPointData ()
void	Execute ()
Protected Attributes
int	PassCellData

---

Detailed Description

map cell data to point data.

Date:

2001/10/11 13:36:47

Revision:

1.15

vtkCellDataToPointData is a filter that transforms cell data (i.e., data specified per cell) into point data (i.e., data specified at cell points). The method of transformation is based on averaging the data values of all cells using a particular point. Optionally, the input cell data can be passed through to the output as well.

Warning:

This filter is an abstract filter, that is, the output is an abstract type (i.e., vtkDataSet). Use the convenience methods (e.g., vtkGetPolyDataOutput(), GetStructuredPointsOutput(), etc.) to get the type of output you want.

See also:

vtkDataSetToDataSetFilter vtkPointData vtkCellData vtkPointDataToCellData

Tests:

vtkCellDataToPointData (Tests)

Definition at line 70 of file vtkCellDataToPointData.h.

---

Constructor & Destructor Documentation

vtkCellDataToPointData::vtkCellDataToPointData (    )  [protected]

vtkCellDataToPointData::~vtkCellDataToPointData (    )  [inline, protected]

Definition at line 88 of file vtkCellDataToPointData.h.

---

Member Function Documentation

vtkCellDataToPointData* vtkCellDataToPointData::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkDataSetSource.

virtual const char* vtkCellDataToPointData::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

int vtkCellDataToPointData::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

virtual int vtkCellDataToPointData::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

vtkCellDataToPointData* vtkCellDataToPointData::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

void vtkCellDataToPointData::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

virtual void vtkCellDataToPointData::SetPassCellData (  int    )  [virtual]

Control whether the input cell data is to be passed to the output. If on, then the input cell data is passed through to the output; otherwise, only generated point data is placed into the output.

virtual int vtkCellDataToPointData::GetPassCellData (    )  [virtual]

Control whether the input cell data is to be passed to the output. If on, then the input cell data is passed through to the output; otherwise, only generated point data is placed into the output.

virtual void vtkCellDataToPointData::PassCellDataOn (    )  [virtual]

Control whether the input cell data is to be passed to the output. If on, then the input cell data is passed through to the output; otherwise, only generated point data is placed into the output.

virtual void vtkCellDataToPointData::PassCellDataOff (    )  [virtual]

Control whether the input cell data is to be passed to the output. If on, then the input cell data is passed through to the output; otherwise, only generated point data is placed into the output.

void vtkCellDataToPointData::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

---

Member Data Documentation

int vtkCellDataToPointData::PassCellData [protected]

Definition at line 92 of file vtkCellDataToPointData.h.

---

The documentation for this class was generated from the following file:

• Graphics/vtkCellDataToPointData.h

---
