vtkDataSetSurfaceFilter Class Reference

Extracts outer (polygonal) surface. More...

#include <vtkDataSetSurfaceFilter.h>

Inheritance diagram for vtkDataSetSurfaceFilter:

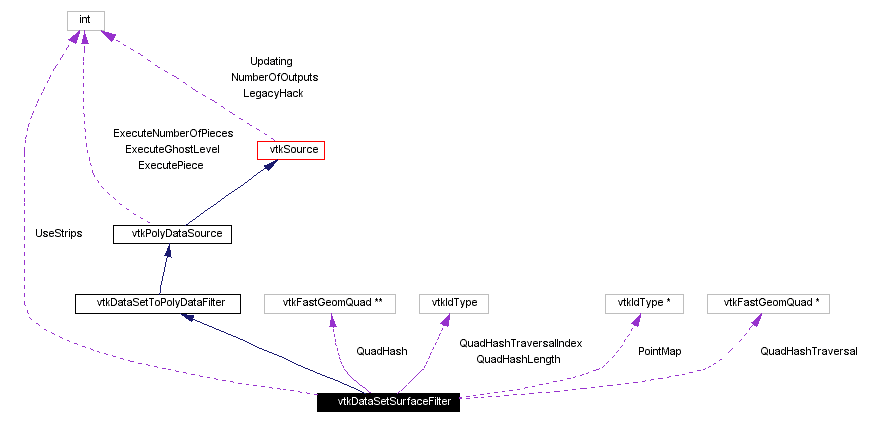

[legend]Collaboration diagram for vtkDataSetSurfaceFilter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetUseStrips (int)
virtual int	GetUseStrips ()
virtual void	UseStripsOn ()
virtual void	UseStripsOff ()
Static Public Methods
vtkDataSetSurfaceFilter *	New ()
int	IsTypeOf (const char *type)
vtkDataSetSurfaceFilter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkDataSetSurfaceFilter ()
	~vtkDataSetSurfaceFilter ()
void	ComputeInputUpdateExtents (vtkDataObject *output)
void	Execute ()
void	StructuredExecute (vtkDataSet *input, int *ext)
void	UnstructuredGridExecute ()
void	DataSetExecute ()
void	ExecuteInformation ()
void	ExecuteFaceStrips (vtkDataSet *input, int maxFlag, int *ext, int aAxis, int bAxis, int cAxis)
void	ExecuteFaceQuads (vtkDataSet *input, int maxFlag, int *ext, int aAxis, int bAxis, int cAxis)
void	InitializeQuadHash (vtkIdType numPoints)
void	DeleteQuadHash ()
void	InsertQuadInHash (vtkIdType a, vtkIdType b, vtkIdType c, vtkIdType d, vtkIdType sourceId)
void	InsertTriInHash (vtkIdType a, vtkIdType b, vtkIdType c, vtkIdType sourceId)
void	InitQuadHashTraversal ()
vtkFastGeomQuad *	GetNextVisibleQuadFromHash ()
vtkIdType	GetOutputPointId (vtkIdType inPtId, vtkDataSet *input, vtkPoints *outPts, vtkPointData *outPD)
Protected Attributes
int	UseStrips
vtkFastGeomQuad **	QuadHash
vtkIdType	QuadHashLength
vtkFastGeomQuad *	QuadHashTraversal
vtkIdType	QuadHashTraversalIndex
vtkIdType *	PointMap

---

Detailed Description

Extracts outer (polygonal) surface.

Date:

2001/11/13 14:13:49

Revision:

1.6

vtkDataSetSurfaceFilter is a fast version of vtkGeometry filter, but it does not have an option to select bounds. It may use more memory than vtkGeometryFilter. It only has one option: whether to use triangle strips when the input type is structured.

See also:

vtkGeometryFilter vtkStructuredGridGeometryFilter.

Tests:

vtkDataSetSurfaceFilter (Tests)

Definition at line 69 of file vtkDataSetSurfaceFilter.h.

---

Constructor & Destructor Documentation

vtkDataSetSurfaceFilter::vtkDataSetSurfaceFilter (    )  [protected]

vtkDataSetSurfaceFilter::~vtkDataSetSurfaceFilter (    )  [protected]

---

Member Function Documentation

vtkDataSetSurfaceFilter* vtkDataSetSurfaceFilter::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkPolyDataSource. Reimplemented in vtkPVGeometryFilter.

virtual const char* vtkDataSetSurfaceFilter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToPolyDataFilter. Reimplemented in vtkPVGeometryFilter.

int vtkDataSetSurfaceFilter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToPolyDataFilter. Reimplemented in vtkPVGeometryFilter.

virtual int vtkDataSetSurfaceFilter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToPolyDataFilter. Reimplemented in vtkPVGeometryFilter.

vtkDataSetSurfaceFilter* vtkDataSetSurfaceFilter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToPolyDataFilter. Reimplemented in vtkPVGeometryFilter.

void vtkDataSetSurfaceFilter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource. Reimplemented in vtkPVGeometryFilter.

virtual void vtkDataSetSurfaceFilter::SetUseStrips (  int    )  [virtual]

When input is structured data, this flag will generate faces with triangle strips. This should render faster and use less memory, but no cell data is copied. By default, UseStrips is Off.

virtual int vtkDataSetSurfaceFilter::GetUseStrips (    )  [virtual]

When input is structured data, this flag will generate faces with triangle strips. This should render faster and use less memory, but no cell data is copied. By default, UseStrips is Off.

virtual void vtkDataSetSurfaceFilter::UseStripsOn (    )  [virtual]

When input is structured data, this flag will generate faces with triangle strips. This should render faster and use less memory, but no cell data is copied. By default, UseStrips is Off.

virtual void vtkDataSetSurfaceFilter::UseStripsOff (    )  [virtual]

When input is structured data, this flag will generate faces with triangle strips. This should render faster and use less memory, but no cell data is copied. By default, UseStrips is Off.

void vtkDataSetSurfaceFilter::ComputeInputUpdateExtents (  vtkDataObject *    output )  [protected, virtual]

Do not let images return more than requested. Reimplemented from vtkDataSetToPolyDataFilter.

void vtkDataSetSurfaceFilter::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource. Reimplemented in vtkPVGeometryFilter.

void vtkDataSetSurfaceFilter::StructuredExecute (  vtkDataSet *    input, int *    ext )  [protected]

void vtkDataSetSurfaceFilter::UnstructuredGridExecute (    )  [protected]

void vtkDataSetSurfaceFilter::DataSetExecute (    )  [protected]

void vtkDataSetSurfaceFilter::ExecuteInformation (    )  [protected, virtual]

Reimplemented from vtkSource.

void vtkDataSetSurfaceFilter::ExecuteFaceStrips (  vtkDataSet *    input, int    maxFlag, int *    ext, int    aAxis, int    bAxis, int    cAxis )  [protected]

void vtkDataSetSurfaceFilter::ExecuteFaceQuads (  vtkDataSet *    input, int    maxFlag, int *    ext, int    aAxis, int    bAxis, int    cAxis )  [protected]

void vtkDataSetSurfaceFilter::InitializeQuadHash (  vtkIdType    numPoints )  [protected]

void vtkDataSetSurfaceFilter::DeleteQuadHash (    )  [protected]

void vtkDataSetSurfaceFilter::InsertQuadInHash (  vtkIdType    a, vtkIdType    b, vtkIdType    c, vtkIdType    d, vtkIdType    sourceId )  [protected]

void vtkDataSetSurfaceFilter::InsertTriInHash (  vtkIdType    a, vtkIdType    b, vtkIdType    c, vtkIdType    sourceId )  [protected]

void vtkDataSetSurfaceFilter::InitQuadHashTraversal (    )  [protected]

vtkFastGeomQuad* vtkDataSetSurfaceFilter::GetNextVisibleQuadFromHash (    )  [protected]

vtkIdType vtkDataSetSurfaceFilter::GetOutputPointId (  vtkIdType    inPtId, vtkDataSet *    input, vtkPoints *    outPts, vtkPointData *    outPD )  [protected]

---

Member Data Documentation

int vtkDataSetSurfaceFilter::UseStrips [protected]

Definition at line 89 of file vtkDataSetSurfaceFilter.h.

vtkFastGeomQuad** vtkDataSetSurfaceFilter::QuadHash [protected]

Definition at line 114 of file vtkDataSetSurfaceFilter.h.

vtkIdType vtkDataSetSurfaceFilter::QuadHashLength [protected]

Definition at line 115 of file vtkDataSetSurfaceFilter.h.

vtkFastGeomQuad* vtkDataSetSurfaceFilter::QuadHashTraversal [protected]

Definition at line 116 of file vtkDataSetSurfaceFilter.h.

vtkIdType vtkDataSetSurfaceFilter::QuadHashTraversalIndex [protected]

Definition at line 117 of file vtkDataSetSurfaceFilter.h.

vtkIdType* vtkDataSetSurfaceFilter::PointMap [protected]

Definition at line 119 of file vtkDataSetSurfaceFilter.h.

---

The documentation for this class was generated from the following file:

• Graphics/vtkDataSetSurfaceFilter.h

---
