vtkDataSetToPolyDataFilter Class Reference

abstract filter class. More...

#include <vtkDataSetToPolyDataFilter.h>

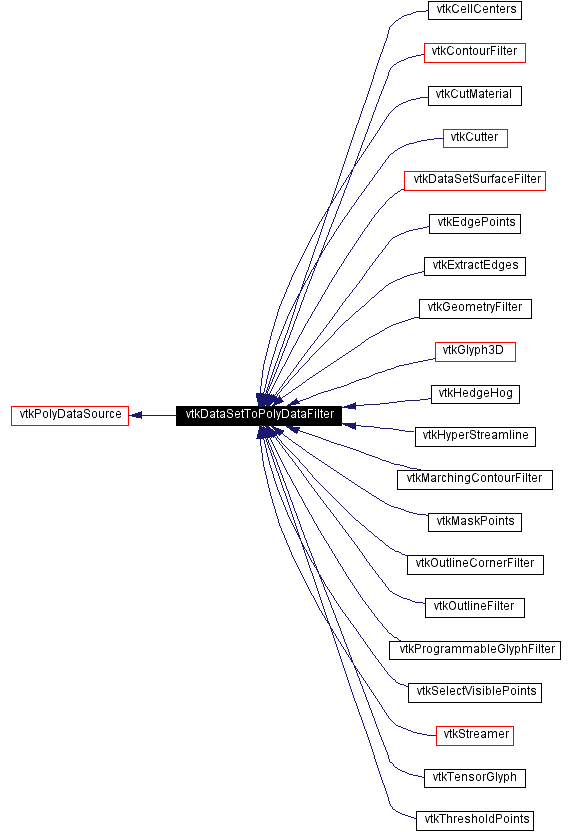

Inheritance diagram for vtkDataSetToPolyDataFilter:

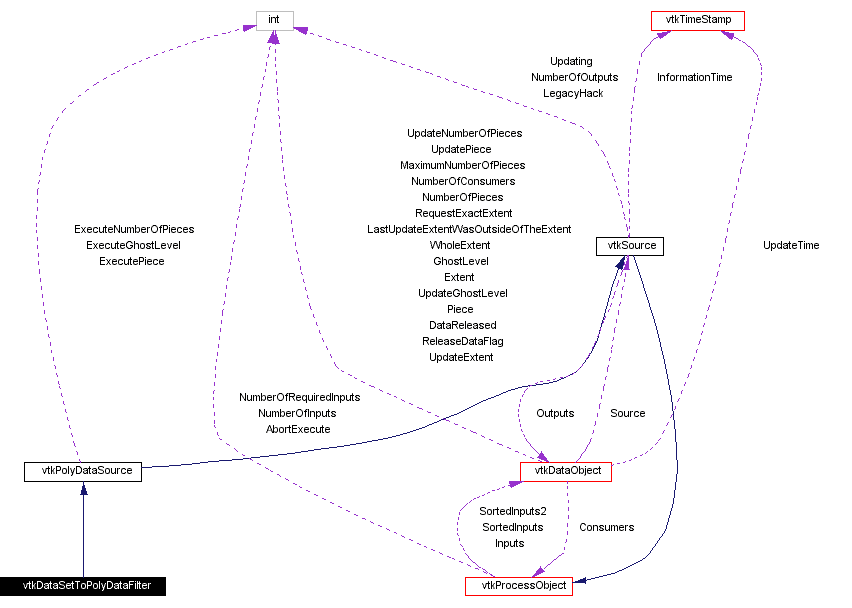

[legend]Collaboration diagram for vtkDataSetToPolyDataFilter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	ComputeInputUpdateExtents (vtkDataObject *output)
virtual void	SetInput (vtkDataSet *input)
vtkDataSet *	GetInput ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkDataSetToPolyDataFilter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkDataSetToPolyDataFilter ()
	~vtkDataSetToPolyDataFilter ()

---

Detailed Description

abstract filter class.

Date:

2001/10/11 13:36:33

Revision:

1.19

vtkDataSetToPolyDataFilter is an abstract filter class whose subclasses take as input any dataset and generate polygonal data on output.

See also:

vtkContourFilter vtkCutter vtkEdgePoints vtkExtractEdges vtkGeometryFilter vtkGlyph3D vtkHedgeHog vtkHyperStreamline vtkMaskPoints vtkOutlineFilter vtkStreamer vtkTensorGlyph vtkThresholdPoints vtkVectorTopology

Definition at line 62 of file vtkDataSetToPolyDataFilter.h.

---

Constructor & Destructor Documentation

vtkDataSetToPolyDataFilter::vtkDataSetToPolyDataFilter (    )  [inline, protected]

Definition at line 77 of file vtkDataSetToPolyDataFilter.h.

vtkDataSetToPolyDataFilter::~vtkDataSetToPolyDataFilter (    )  [inline, protected]

Definition at line 78 of file vtkDataSetToPolyDataFilter.h.

---

Member Function Documentation

virtual const char* vtkDataSetToPolyDataFilter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource. Reimplemented in vtkCellCenters, vtkContourFilter, vtkCutter, vtkDashedStreamLine, vtkDataSetSurfaceFilter, vtkEdgePoints, vtkExtractEdges, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkHedgeHog, vtkHyperStreamline, vtkMaskPoints, vtkOutlineCornerFilter, vtkOutlineFilter, vtkProgrammableGlyphFilter, vtkStreamer, vtkStreamLine, vtkStreamPoints, vtkTensorGlyph, vtkThresholdPoints, vtkCutMaterial, vtkCutPlane, vtkPVGeometryFilter, vtkKitwareContourFilter, vtkMarchingContourFilter, and vtkSelectVisiblePoints.

int vtkDataSetToPolyDataFilter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource. Reimplemented in vtkCellCenters, vtkContourFilter, vtkCutter, vtkDashedStreamLine, vtkDataSetSurfaceFilter, vtkEdgePoints, vtkExtractEdges, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkHedgeHog, vtkHyperStreamline, vtkMaskPoints, vtkOutlineCornerFilter, vtkOutlineFilter, vtkProgrammableGlyphFilter, vtkStreamer, vtkStreamLine, vtkStreamPoints, vtkTensorGlyph, vtkThresholdPoints, vtkCutMaterial, vtkCutPlane, vtkPVGeometryFilter, vtkKitwareContourFilter, vtkMarchingContourFilter, and vtkSelectVisiblePoints.

virtual int vtkDataSetToPolyDataFilter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource. Reimplemented in vtkCellCenters, vtkContourFilter, vtkCutter, vtkDashedStreamLine, vtkDataSetSurfaceFilter, vtkEdgePoints, vtkExtractEdges, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkHedgeHog, vtkHyperStreamline, vtkMaskPoints, vtkOutlineCornerFilter, vtkOutlineFilter, vtkProgrammableGlyphFilter, vtkStreamer, vtkStreamLine, vtkStreamPoints, vtkTensorGlyph, vtkThresholdPoints, vtkCutMaterial, vtkCutPlane, vtkPVGeometryFilter, vtkKitwareContourFilter, vtkMarchingContourFilter, and vtkSelectVisiblePoints.

vtkDataSetToPolyDataFilter* vtkDataSetToPolyDataFilter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource. Reimplemented in vtkCellCenters, vtkContourFilter, vtkCutter, vtkDashedStreamLine, vtkDataSetSurfaceFilter, vtkEdgePoints, vtkExtractEdges, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkHedgeHog, vtkHyperStreamline, vtkMaskPoints, vtkOutlineCornerFilter, vtkOutlineFilter, vtkProgrammableGlyphFilter, vtkStreamer, vtkStreamLine, vtkStreamPoints, vtkTensorGlyph, vtkThresholdPoints, vtkCutMaterial, vtkCutPlane, vtkPVGeometryFilter, vtkKitwareContourFilter, vtkMarchingContourFilter, and vtkSelectVisiblePoints.

virtual void vtkDataSetToPolyDataFilter::SetInput (  vtkDataSet *    input )  [virtual]

Set / get the input data or filter.

vtkDataSet* vtkDataSetToPolyDataFilter::GetInput (    )

Set / get the input data or filter.

virtual void vtkDataSetToPolyDataFilter::ComputeInputUpdateExtents (  vtkDataObject *    output )  [virtual]

Do not let images return more than requested. Reimplemented from vtkPolyDataSource. Reimplemented in vtkDataSetSurfaceFilter, vtkGeometryFilter, vtkGlyph3D, and vtkKitwareContourFilter.

---

The documentation for this class was generated from the following file:

• Filtering/vtkDataSetToPolyDataFilter.h

---
