vtkPVGeometryFilter Class Reference

Geometry filter that does outlines for volumes. More...

#include <vtkPVGeometryFilter.h>

Inheritance diagram for vtkPVGeometryFilter:

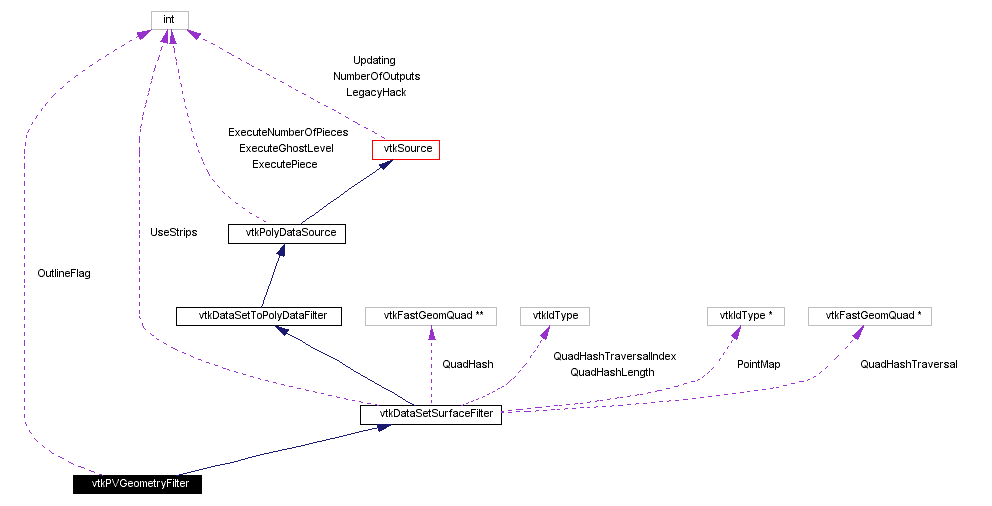

[legend]Collaboration diagram for vtkPVGeometryFilter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	GetOutlineFlag ()
Static Public Methods
vtkPVGeometryFilter *	New ()
int	IsTypeOf (const char *type)
vtkPVGeometryFilter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkPVGeometryFilter ()
	~vtkPVGeometryFilter ()
	vtkPVGeometryFilter (const vtkPVGeometryFilter &)
void	operator= (const vtkPVGeometryFilter &)
void	Execute ()
void	ImageDataExecute (vtkImageData *input)
void	StructuredGridExecute (vtkStructuredGrid *input)
void	RectilinearGridExecute (vtkRectilinearGrid *input)
void	UnstructuredGridExecute (vtkUnstructuredGrid *input)
Protected Attributes
int	OutlineFlag

---

Detailed Description

Geometry filter that does outlines for volumes.

Date:

2001/12/07 14:03:09

Revision:

1.3

This filter defaults to using the outline filter unless the input is a structured volume.

Definition at line 59 of file vtkPVGeometryFilter.h.

---

Constructor & Destructor Documentation

vtkPVGeometryFilter::vtkPVGeometryFilter (    )  [protected]

vtkPVGeometryFilter::~vtkPVGeometryFilter (    )  [protected]

vtkPVGeometryFilter::vtkPVGeometryFilter (  const vtkPVGeometryFilter &    )  [inline, protected]

Definition at line 75 of file vtkPVGeometryFilter.h.

---

Member Function Documentation

vtkPVGeometryFilter* vtkPVGeometryFilter::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkDataSetSurfaceFilter.

virtual const char* vtkPVGeometryFilter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetSurfaceFilter.

int vtkPVGeometryFilter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetSurfaceFilter.

virtual int vtkPVGeometryFilter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetSurfaceFilter.

vtkPVGeometryFilter* vtkPVGeometryFilter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetSurfaceFilter.

void vtkPVGeometryFilter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkDataSetSurfaceFilter.

virtual int vtkPVGeometryFilter::GetOutlineFlag (    )  [virtual]

This flag is set during the execute method. It indicates that the input was 3d and an outline representation was used.

void vtkPVGeometryFilter::operator= (  const vtkPVGeometryFilter &    )  [inline, protected]

Definition at line 76 of file vtkPVGeometryFilter.h.

void vtkPVGeometryFilter::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkDataSetSurfaceFilter.

void vtkPVGeometryFilter::ImageDataExecute (  vtkImageData *    input )  [protected]

void vtkPVGeometryFilter::StructuredGridExecute (  vtkStructuredGrid *    input )  [protected]

void vtkPVGeometryFilter::RectilinearGridExecute (  vtkRectilinearGrid *    input )  [protected]

void vtkPVGeometryFilter::UnstructuredGridExecute (  vtkUnstructuredGrid *    input )  [protected]

---

Member Data Documentation

int vtkPVGeometryFilter::OutlineFlag [protected]

Definition at line 84 of file vtkPVGeometryFilter.h.

---

The documentation for this class was generated from the following file:

• Parallel/vtkPVGeometryFilter.h

---
