vtkDataSetTriangleFilter Class Reference

triangulate any type of dataset. More...

#include <vtkDataSetTriangleFilter.h>

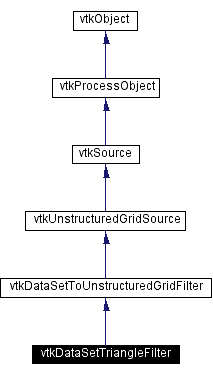

Inheritance diagram for vtkDataSetTriangleFilter:

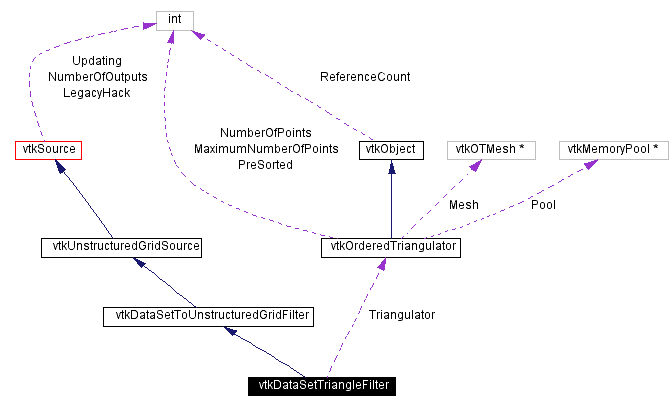

[legend]Collaboration diagram for vtkDataSetTriangleFilter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Methods
vtkDataSetTriangleFilter *	New ()
int	IsTypeOf (const char *type)
vtkDataSetTriangleFilter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkDataSetTriangleFilter ()
	~vtkDataSetTriangleFilter ()
void	Execute ()
void	StructuredExecute ()
void	UnstructuredExecute ()
Protected Attributes
vtkOrderedTriangulator *	Triangulator

---

Detailed Description

triangulate any type of dataset.

Date:

2001/10/11 13:36:55

Revision:

1.6

vtkTriangulateDataSet generates n-dimensional simplices from any input dataset. That is, 3D cells are converted to tetrahedral meshes, 2D cells to triangles, and so on. The triangulation is guaranteed compatible as long as the dataset is either zero-, one- or two-dimensional; or if a three-dimensional dataset, all cells in the 3D dataset are convex with planar facets.

See also:

vtkOrderedTriangulator vtkTriangleFilter

Tests:

vtkDataSetTriangleFilter (Tests)

Definition at line 67 of file vtkDataSetTriangleFilter.h.

---

Constructor & Destructor Documentation

vtkDataSetTriangleFilter::vtkDataSetTriangleFilter (    )  [inline, protected]

Definition at line 75 of file vtkDataSetTriangleFilter.h.

vtkDataSetTriangleFilter::~vtkDataSetTriangleFilter (    )  [protected]

---

Member Function Documentation

vtkDataSetTriangleFilter* vtkDataSetTriangleFilter::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkUnstructuredGridSource.

virtual const char* vtkDataSetTriangleFilter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToUnstructuredGridFilter.

int vtkDataSetTriangleFilter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToUnstructuredGridFilter.

virtual int vtkDataSetTriangleFilter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToUnstructuredGridFilter.

vtkDataSetTriangleFilter* vtkDataSetTriangleFilter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToUnstructuredGridFilter.

void vtkDataSetTriangleFilter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

void vtkDataSetTriangleFilter::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

void vtkDataSetTriangleFilter::StructuredExecute (    )  [protected]

void vtkDataSetTriangleFilter::UnstructuredExecute (    )  [protected]

---

Member Data Documentation

vtkOrderedTriangulator* vtkDataSetTriangleFilter::Triangulator [protected]

Definition at line 85 of file vtkDataSetTriangleFilter.h.

---

The documentation for this class was generated from the following file:

• Graphics/vtkDataSetTriangleFilter.h

---
