vtkDataSetWriter Class Reference

write any type of vtk dataset to file. More...

#include <vtkDataSetWriter.h>

Inheritance diagram for vtkDataSetWriter:

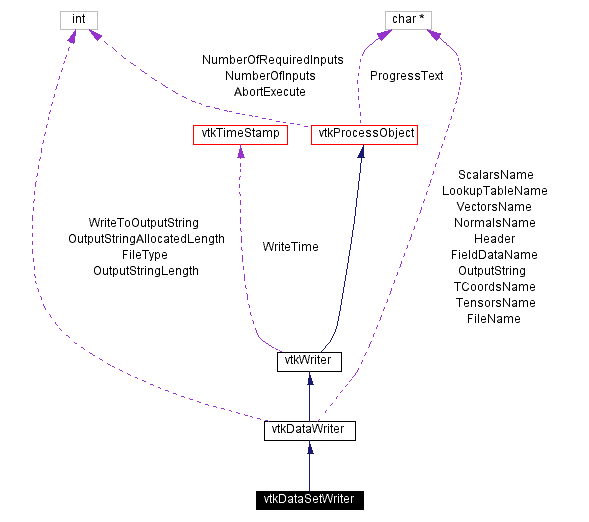

[legend]Collaboration diagram for vtkDataSetWriter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetInput (vtkDataSet *input)
vtkDataSet *	GetInput ()
Static Public Methods
vtkDataSetWriter *	New ()
int	IsTypeOf (const char *type)
vtkDataSetWriter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkDataSetWriter ()
	~vtkDataSetWriter ()
void	WriteData ()

---

Detailed Description

write any type of vtk dataset to file.

Date:

2001/10/11 13:37:29

Revision:

1.41

vtkDataSetWriter is an abstract class for mapper objects that write their data to disk (or into a communications port). The input to this object is a dataset of any type.

Tests:

vtkDataSetWriter (Tests)

Definition at line 59 of file vtkDataSetWriter.h.

---

Constructor & Destructor Documentation

vtkDataSetWriter::vtkDataSetWriter (    )  [inline, protected]

Definition at line 73 of file vtkDataSetWriter.h.

vtkDataSetWriter::~vtkDataSetWriter (    )  [inline, protected]

Definition at line 74 of file vtkDataSetWriter.h.

---

Member Function Documentation

vtkDataSetWriter* vtkDataSetWriter::New (    )  [static]

Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates. Reimplemented from vtkDataWriter. Reimplemented in vtkPDataSetWriter.

virtual const char* vtkDataSetWriter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataWriter. Reimplemented in vtkPDataSetWriter.

int vtkDataSetWriter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataWriter. Reimplemented in vtkPDataSetWriter.

virtual int vtkDataSetWriter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataWriter. Reimplemented in vtkPDataSetWriter.

vtkDataSetWriter* vtkDataSetWriter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataWriter. Reimplemented in vtkPDataSetWriter.

void vtkDataSetWriter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkDataWriter. Reimplemented in vtkPDataSetWriter.

void vtkDataSetWriter::SetInput (  vtkDataSet *    input )

Set / get the input data or filter.

vtkDataSet* vtkDataSetWriter::GetInput (    )

Set / get the input data or filter. Reimplemented from vtkWriter.

void vtkDataSetWriter::WriteData (    )  [protected, virtual]

Reimplemented from vtkDataWriter.

---

The documentation for this class was generated from the following file:

• IO/vtkDataSetWriter.h

---
