vtkPDataSetWriter Class Reference

Manages writing pieces of a data set. More...

#include <vtkPDataSetWriter.h>

Inheritance diagram for vtkPDataSetWriter:

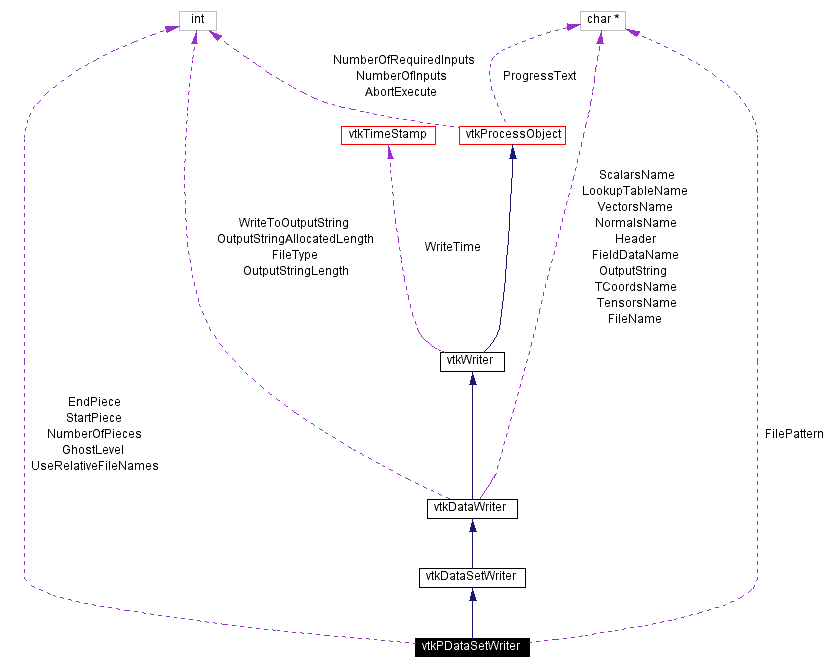

[legend]Collaboration diagram for vtkPDataSetWriter:

[legend]List of all members.

Public Methods
void	PrintSelf (ostream &os, vtkIndent indent)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	Write ()
void	SetNumberOfPieces (int num)
virtual int	GetNumberOfPieces ()
virtual void	SetGhostLevel (int)
virtual int	GetGhostLevel ()
virtual void	SetStartPiece (int)
virtual int	GetStartPiece ()
virtual void	SetEndPiece (int)
virtual int	GetEndPiece ()
virtual void	SetFilePattern (const char *)
virtual char *	GetFilePattern ()
virtual void	SetUseRelativeFileNames (int)
virtual int	GetUseRelativeFileNames ()
virtual void	UseRelativeFileNamesOn ()
virtual void	UseRelativeFileNamesOff ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkPDataSetWriter *	SafeDownCast (vtkObject *o)
vtkPDataSetWriter *	New ()
Protected Methods
	vtkPDataSetWriter ()
	~vtkPDataSetWriter ()
	vtkPDataSetWriter (const vtkPDataSetWriter &)
void	operator= (const vtkPDataSetWriter &)
ostream *	vtkPDataSetWriter::OpenFile ()
void	WriteUnstructuredMetaData (vtkDataSet *input, char *root, char *str, ostream *fptr)
void	WriteImageMetaData (vtkImageData *input, char *root, char *str, ostream *fptr)
void	WriteRectilinearGridMetaData (vtkRectilinearGrid *input, char *root, char *str, ostream *fptr)
void	WriteStructuredGridMetaData (vtkStructuredGrid *input, char *root, char *str, ostream *fptr)
Protected Attributes
int	StartPiece
int	EndPiece
int	NumberOfPieces
int	GhostLevel
int	UseRelativeFileNames
char *	FilePattern

---

Detailed Description

Manages writing pieces of a data set.

Date:

2001/11/15 14:20:23

Revision:

1.3

vtkPDataSetWriter will write a piece of a file, and will also create a metadata file that lists all of the files in a data set.

Tests:

vtkPDataSetWriter (Tests)

Definition at line 62 of file vtkPDataSetWriter.h.

---

Constructor & Destructor Documentation

vtkPDataSetWriter::vtkPDataSetWriter (    )  [protected]

vtkPDataSetWriter::~vtkPDataSetWriter (    )  [protected]

vtkPDataSetWriter::vtkPDataSetWriter (  const vtkPDataSetWriter &    )  [protected]

---

Member Function Documentation

void vtkPDataSetWriter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkDataSetWriter.

virtual const char* vtkPDataSetWriter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetWriter.

int vtkPDataSetWriter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetWriter.

virtual int vtkPDataSetWriter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetWriter.

vtkPDataSetWriter* vtkPDataSetWriter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetWriter.

vtkPDataSetWriter* vtkPDataSetWriter::New (    )  [static]

Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates. Reimplemented from vtkDataSetWriter.

virtual void vtkPDataSetWriter::Write (    )  [virtual]

Write the pvtk file and cooresponding vtk files. Reimplemented from vtkWriter.

void vtkPDataSetWriter::SetNumberOfPieces (  int    num )

This is how many pieces the whole data set will be divided into.

virtual int vtkPDataSetWriter::GetNumberOfPieces (    )  [virtual]

This is how many pieces the whole data set will be divided into.

virtual void vtkPDataSetWriter::SetGhostLevel (  int    )  [virtual]

Extra ghost cells will be written out to each piece file if this value is larger than 0.

virtual int vtkPDataSetWriter::GetGhostLevel (    )  [virtual]

Extra ghost cells will be written out to each piece file if this value is larger than 0.

virtual void vtkPDataSetWriter::SetStartPiece (  int    )  [virtual]

This is the range of pieces that that this writer is responsible for writing. All pieces must be written by some process. The process that writes piece 0 also writes the pvtk file that lists all the piece file names.

virtual int vtkPDataSetWriter::GetStartPiece (    )  [virtual]

This is the range of pieces that that this writer is responsible for writing. All pieces must be written by some process. The process that writes piece 0 also writes the pvtk file that lists all the piece file names.

virtual void vtkPDataSetWriter::SetEndPiece (  int    )  [virtual]

This is the range of pieces that that this writer is responsible for writing. All pieces must be written by some process. The process that writes piece 0 also writes the pvtk file that lists all the piece file names.

virtual int vtkPDataSetWriter::GetEndPiece (    )  [virtual]

This is the range of pieces that that this writer is responsible for writing. All pieces must be written by some process. The process that writes piece 0 also writes the pvtk file that lists all the piece file names.

virtual void vtkPDataSetWriter::SetFilePattern (  const char *    )  [virtual]

This file pattern uses the file name and piece number to contruct a file name for the piece file.

virtual char* vtkPDataSetWriter::GetFilePattern (    )  [virtual]

This file pattern uses the file name and piece number to contruct a file name for the piece file.

virtual void vtkPDataSetWriter::SetUseRelativeFileNames (  int    )  [virtual]

This flag determines whether to use absolute paths for the piece files. By default the pieces are put in the main directory, and the piece file names in the meta data pvtk file are relative to this directory. This should make moving the whole lot to another directory, an easier task.

virtual int vtkPDataSetWriter::GetUseRelativeFileNames (    )  [virtual]

This flag determines whether to use absolute paths for the piece files. By default the pieces are put in the main directory, and the piece file names in the meta data pvtk file are relative to this directory. This should make moving the whole lot to another directory, an easier task.

virtual void vtkPDataSetWriter::UseRelativeFileNamesOn (    )  [virtual]

This flag determines whether to use absolute paths for the piece files. By default the pieces are put in the main directory, and the piece file names in the meta data pvtk file are relative to this directory. This should make moving the whole lot to another directory, an easier task.

virtual void vtkPDataSetWriter::UseRelativeFileNamesOff (    )  [virtual]

This flag determines whether to use absolute paths for the piece files. By default the pieces are put in the main directory, and the piece file names in the meta data pvtk file are relative to this directory. This should make moving the whole lot to another directory, an easier task.

void vtkPDataSetWriter::operator= (  const vtkPDataSetWriter &    )  [protected]

ostream* vtkPDataSetWriter::vtkPDataSetWriter::OpenFile (    )  [protected]

void vtkPDataSetWriter::WriteUnstructuredMetaData (  vtkDataSet *    input, char *    root, char *    str, ostream *    fptr )  [protected]

void vtkPDataSetWriter::WriteImageMetaData (  vtkImageData *    input, char *    root, char *    str, ostream *    fptr )  [protected]

void vtkPDataSetWriter::WriteRectilinearGridMetaData (  vtkRectilinearGrid *    input, char *    root, char *    str, ostream *    fptr )  [protected]

void vtkPDataSetWriter::WriteStructuredGridMetaData (  vtkStructuredGrid *    input, char *    root, char *    str, ostream *    fptr )  [protected]

---

Member Data Documentation

int vtkPDataSetWriter::StartPiece [protected]

Definition at line 132 of file vtkPDataSetWriter.h.

int vtkPDataSetWriter::EndPiece [protected]

Definition at line 133 of file vtkPDataSetWriter.h.

int vtkPDataSetWriter::NumberOfPieces [protected]

Definition at line 134 of file vtkPDataSetWriter.h.

int vtkPDataSetWriter::GhostLevel [protected]

Definition at line 135 of file vtkPDataSetWriter.h.

int vtkPDataSetWriter::UseRelativeFileNames [protected]

Definition at line 137 of file vtkPDataSetWriter.h.

char* vtkPDataSetWriter::FilePattern [protected]

Definition at line 139 of file vtkPDataSetWriter.h.

---

The documentation for this class was generated from the following file:

• Parallel/vtkPDataSetWriter.h

---
