vtkWriter Class Reference

abstract class to write data to file(s). More...

#include <vtkWriter.h>

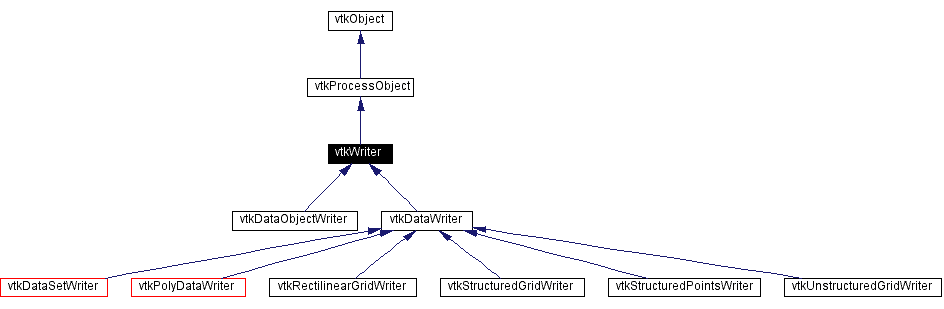

Inheritance diagram for vtkWriter:

Inheritance graph
[legend]
Collaboration diagram for vtkWriter:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void Write ()
void Update ()
vtkDataObjectGetInput ()

Static Public Methods

int IsTypeOf (const char *type)
vtkWriter * SafeDownCast (vtkObject *o)

Protected Methods

 vtkWriter ()
 ~vtkWriter ()
virtual void WriteData ()=0

Protected Attributes

vtkTimeStamp WriteTime

Detailed Description

abstract class to write data to file(s).

Date:
2001/10/11 13:37:35
Revision:
1.42

vtkWriter is an abstract class for mapper objects that write their data to disk (or into a communications port). All writers respond to Write() method. This method insures that there is input and input is up to date.

Since vtkWriter is a subclass of vtkProcessObject, StartMethod(), EndMethod(), and ProgressMethod() are all available to writers. These methods are executed before and after execution of the Write() method. You can also specify arguments to these methods.

Warning:
Every subclass of vtkWriter must implement a WriteData() method. Most likely will have to create SetInput() method as well.
See also:
vtkBYUWriter vtkDataWriter vtkSTLWriter vtkVoxelWriter vtkMCubesWriter
Events:
vtkCommand::StartEvent vtkCommand::EndEvent

Definition at line 75 of file vtkWriter.h.


Constructor & Destructor Documentation

vtkWriter::vtkWriter   [protected]


vtkWriter::~vtkWriter   [protected]



Member Function Documentation

virtual const char* vtkWriter::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkProcessObject.

Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataObjectWriter, vtkDataSetWriter, vtkDataWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, vtkUnstructuredGridWriter, and vtkPDataSetWriter.

int vtkWriter::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkProcessObject.

Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataObjectWriter, vtkDataSetWriter, vtkDataWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, vtkUnstructuredGridWriter, and vtkPDataSetWriter.

virtual int vtkWriter::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkProcessObject.

Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataObjectWriter, vtkDataSetWriter, vtkDataWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, vtkUnstructuredGridWriter, and vtkPDataSetWriter.

vtkWriter* vtkWriter::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkProcessObject.

Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataObjectWriter, vtkDataSetWriter, vtkDataWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, vtkUnstructuredGridWriter, and vtkPDataSetWriter.

void vtkWriter::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkProcessObject.

Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataObjectWriter, vtkDataSetWriter, vtkDataWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, vtkUnstructuredGridWriter, and vtkPDataSetWriter.

virtual void vtkWriter::Write   [virtual]


Write data to output. Method executes subclasses WriteData() method, as well as StartMethod() and EndMethod() methods.

Reimplemented in vtkPDataSetWriter.

void vtkWriter::Update


Convenient alias for Write() method.

vtkDataObject* vtkWriter::GetInput


Reimplemented in vtkDataObjectWriter, vtkDataSetWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, and vtkUnstructuredGridWriter.

virtual void vtkWriter::WriteData   [protected, pure virtual]


Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataObjectWriter, vtkDataSetWriter, vtkDataWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, and vtkUnstructuredGridWriter.


Member Data Documentation

vtkTimeStamp vtkWriter::WriteTime [protected]


Definition at line 96 of file vtkWriter.h.


The documentation for this class was generated from the following file:
