vtkDepthSortPolyData Class Reference

sort poly data along camera view direction. More...

#include <vtkDepthSortPolyData.h>

Inheritance diagram for vtkDepthSortPolyData:

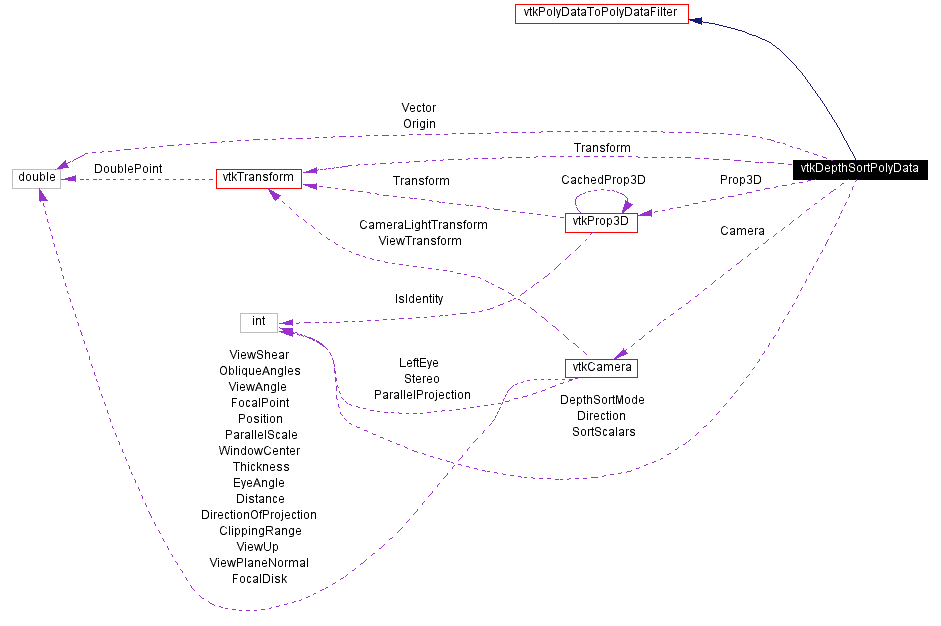

[legend]Collaboration diagram for vtkDepthSortPolyData:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
unsigned long	GetMTime ()
virtual void	SetDirection (int)
virtual int	GetDirection ()
void	SetDirectionToFrontToBack ()
void	SetDirectionToBackToFront ()
void	SetDirectionToSpecifiedVector ()
virtual void	SetDepthSortMode (int)
virtual int	GetDepthSortMode ()
void	SetDepthSortModeToFirstPoint ()
void	SetDepthSortModeToBoundsCenter ()
void	SetDepthSortModeToParametricCenter ()
virtual void	SetCamera (vtkCamera *)
virtual vtkCamera *	GetCamera ()
void	SetProp3D (vtkProp3D *)
vtkProp3D *	GetProp3D ()
virtual void	SetVector (double, double, double)
virtual void	SetVector (double[3])
virtual double *	GetVector ()
virtual void	GetVector (double data[3])
virtual void	SetOrigin (double, double, double)
virtual void	SetOrigin (double[3])
virtual double *	GetOrigin ()
virtual void	GetOrigin (double data[3])
virtual void	SetSortScalars (int)
virtual int	GetSortScalars ()
virtual void	SortScalarsOn ()
virtual void	SortScalarsOff ()
Static Public Methods
vtkDepthSortPolyData *	New ()
int	IsTypeOf (const char *type)
vtkDepthSortPolyData *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkDepthSortPolyData ()
	~vtkDepthSortPolyData ()
void	Execute ()
void	ComputeProjectionVector (double vector[3], double origin[3])
Protected Attributes
int	Direction
int	DepthSortMode
vtkCamera *	Camera
vtkProp3D *	Prop3D
vtkTransform *	Transform
double	Vector [3]
double	Origin [3]
int	SortScalars

---

Detailed Description

sort poly data along camera view direction.

Date:

2001/10/11 13:37:24

Revision:

1.7

Thanks:

Scott Hill for implementing this class

vtkDepthSortPolyData rearranges the order of cells so that certain rendering operations (e.g., transparency or Painter's algorithms) generate correct results. To use this filter you must specify the direction vector along which to sort the cells. You can do this by specifying a camera and/or prop to define a view direction; or explicitly set a view direction.

Warning:

The sort operation will not work well for long, thin primitives, or cells that intersect, overlap, or interpenetrate each other.

Examples:

vtkDepthSortPolyData (Examples)

Tests:

vtkDepthSortPolyData (Tests)

Definition at line 82 of file vtkDepthSortPolyData.h.

---

Constructor & Destructor Documentation

vtkDepthSortPolyData::vtkDepthSortPolyData (    )  [protected]

vtkDepthSortPolyData::~vtkDepthSortPolyData (    )  [protected]

---

Member Function Documentation

vtkDepthSortPolyData* vtkDepthSortPolyData::New (    )  [static]

Instantiate object. Reimplemented from vtkPolyDataSource.

virtual const char* vtkDepthSortPolyData::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataToPolyDataFilter.

int vtkDepthSortPolyData::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataToPolyDataFilter.

virtual int vtkDepthSortPolyData::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataToPolyDataFilter.

vtkDepthSortPolyData* vtkDepthSortPolyData::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataToPolyDataFilter.

void vtkDepthSortPolyData::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

virtual void vtkDepthSortPolyData::SetDirection (  int    )  [virtual]

Specify the sort method for the polygonal primitives. By default, the poly data is sorted from back to front.

virtual int vtkDepthSortPolyData::GetDirection (    )  [virtual]

Specify the sort method for the polygonal primitives. By default, the poly data is sorted from back to front.

void vtkDepthSortPolyData::SetDirectionToFrontToBack (    )  [inline]

Specify the sort method for the polygonal primitives. By default, the poly data is sorted from back to front. Definition at line 96 of file vtkDepthSortPolyData.h.

void vtkDepthSortPolyData::SetDirectionToBackToFront (    )  [inline]

Specify the sort method for the polygonal primitives. By default, the poly data is sorted from back to front. Definition at line 98 of file vtkDepthSortPolyData.h.

void vtkDepthSortPolyData::SetDirectionToSpecifiedVector (    )  [inline]

Specify the sort method for the polygonal primitives. By default, the poly data is sorted from back to front. Definition at line 100 of file vtkDepthSortPolyData.h.

virtual void vtkDepthSortPolyData::SetDepthSortMode (  int    )  [virtual]

Specify the point to use when sorting. The fastest is to just take the first cell point. Other options are to take the bounding box center or the parametric center of the cell. By default, the first cell point is used.

virtual int vtkDepthSortPolyData::GetDepthSortMode (    )  [virtual]

Specify the point to use when sorting. The fastest is to just take the first cell point. Other options are to take the bounding box center or the parametric center of the cell. By default, the first cell point is used.

void vtkDepthSortPolyData::SetDepthSortModeToFirstPoint (    )  [inline]

Specify the point to use when sorting. The fastest is to just take the first cell point. Other options are to take the bounding box center or the parametric center of the cell. By default, the first cell point is used. Definition at line 111 of file vtkDepthSortPolyData.h.

void vtkDepthSortPolyData::SetDepthSortModeToBoundsCenter (    )  [inline]

Specify the point to use when sorting. The fastest is to just take the first cell point. Other options are to take the bounding box center or the parametric center of the cell. By default, the first cell point is used. Definition at line 113 of file vtkDepthSortPolyData.h.

void vtkDepthSortPolyData::SetDepthSortModeToParametricCenter (    )  [inline]

Specify the point to use when sorting. The fastest is to just take the first cell point. Other options are to take the bounding box center or the parametric center of the cell. By default, the first cell point is used. Definition at line 115 of file vtkDepthSortPolyData.h.

virtual void vtkDepthSortPolyData::SetCamera (  vtkCamera *    )  [virtual]

Specify a camera that is used to define a view direction along which the cells are sorted. This ivar only has effect if the direction is set to front-to-back or back-to-front, and a camera is specified.

virtual vtkCamera* vtkDepthSortPolyData::GetCamera (    )  [virtual]

Specify a camera that is used to define a view direction along which the cells are sorted. This ivar only has effect if the direction is set to front-to-back or back-to-front, and a camera is specified.

void vtkDepthSortPolyData::SetProp3D (  vtkProp3D *    )

Specify a transformation matrix (via the vtkProp3D::GetMatrix() method) that is used to include the effects of transformation. This ivar only has effect if the direction is set to front-to-back or back-to-front, and a camera is specified. Specifying the vtkProp3D is optional.

vtkProp3D* vtkDepthSortPolyData::GetProp3D (    )

Specify a transformation matrix (via the vtkProp3D::GetMatrix() method) that is used to include the effects of transformation. This ivar only has effect if the direction is set to front-to-back or back-to-front, and a camera is specified. Specifying the vtkProp3D is optional.

virtual void vtkDepthSortPolyData::SetVector (  double   , double   , double    )  [virtual]

Set/Get the sort direction. This ivar only has effect if the sort direction is set to SetDirectionToSpecifiedVector(). The sort occurs in the direction of the vector.

virtual void vtkDepthSortPolyData::SetVector (  double   [3] )  [virtual]

Set/Get the sort direction. This ivar only has effect if the sort direction is set to SetDirectionToSpecifiedVector(). The sort occurs in the direction of the vector.

virtual double* vtkDepthSortPolyData::GetVector (    )  [virtual]

Set/Get the sort direction. This ivar only has effect if the sort direction is set to SetDirectionToSpecifiedVector(). The sort occurs in the direction of the vector.

virtual void vtkDepthSortPolyData::GetVector (  double    data[3] )  [virtual]

Set/Get the sort direction. This ivar only has effect if the sort direction is set to SetDirectionToSpecifiedVector(). The sort occurs in the direction of the vector.

virtual void vtkDepthSortPolyData::SetOrigin (  double   , double   , double    )  [virtual]

Set/Get the sort origin. This ivar only has effect if the sort direction is set to SetDirectionToSpecifiedVector(). The sort occurs in the direction of the vector, with this point specifying the origin.

virtual void vtkDepthSortPolyData::SetOrigin (  double   [3] )  [virtual]

Set/Get the sort origin. This ivar only has effect if the sort direction is set to SetDirectionToSpecifiedVector(). The sort occurs in the direction of the vector, with this point specifying the origin.

virtual double* vtkDepthSortPolyData::GetOrigin (    )  [virtual]

Set/Get the sort origin. This ivar only has effect if the sort direction is set to SetDirectionToSpecifiedVector(). The sort occurs in the direction of the vector, with this point specifying the origin.

virtual void vtkDepthSortPolyData::GetOrigin (  double    data[3] )  [virtual]

Set/Get the sort origin. This ivar only has effect if the sort direction is set to SetDirectionToSpecifiedVector(). The sort occurs in the direction of the vector, with this point specifying the origin.

virtual void vtkDepthSortPolyData::SetSortScalars (  int    )  [virtual]

Set/Get a flag that controls the generation of scalar values corresponding to the sort order. If enabled, the output of this filter will include scalar values that range from 0 to (ncells-1), where 0 is closest to the sort direction.

virtual int vtkDepthSortPolyData::GetSortScalars (    )  [virtual]

Set/Get a flag that controls the generation of scalar values corresponding to the sort order. If enabled, the output of this filter will include scalar values that range from 0 to (ncells-1), where 0 is closest to the sort direction.

virtual void vtkDepthSortPolyData::SortScalarsOn (    )  [virtual]

Set/Get a flag that controls the generation of scalar values corresponding to the sort order. If enabled, the output of this filter will include scalar values that range from 0 to (ncells-1), where 0 is closest to the sort direction.

virtual void vtkDepthSortPolyData::SortScalarsOff (    )  [virtual]

Set/Get a flag that controls the generation of scalar values corresponding to the sort order. If enabled, the output of this filter will include scalar values that range from 0 to (ncells-1), where 0 is closest to the sort direction.

unsigned long vtkDepthSortPolyData::GetMTime (    )  [virtual]

Return MTime also considering the dependent objects: the camera and/or the prop3D. Reimplemented from vtkObject.

void vtkDepthSortPolyData::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

void vtkDepthSortPolyData::ComputeProjectionVector (  double    vector[3], double    origin[3] )  [protected]

---

Member Data Documentation

int vtkDepthSortPolyData::Direction [protected]

Definition at line 175 of file vtkDepthSortPolyData.h.

int vtkDepthSortPolyData::DepthSortMode [protected]

Definition at line 176 of file vtkDepthSortPolyData.h.

vtkCamera* vtkDepthSortPolyData::Camera [protected]

Definition at line 177 of file vtkDepthSortPolyData.h.

vtkProp3D* vtkDepthSortPolyData::Prop3D [protected]

Definition at line 178 of file vtkDepthSortPolyData.h.

vtkTransform* vtkDepthSortPolyData::Transform [protected]

Definition at line 179 of file vtkDepthSortPolyData.h.

double vtkDepthSortPolyData::Vector[3] [protected]

Definition at line 180 of file vtkDepthSortPolyData.h.

double vtkDepthSortPolyData::Origin[3] [protected]

Definition at line 181 of file vtkDepthSortPolyData.h.

int vtkDepthSortPolyData::SortScalars [protected]

Definition at line 182 of file vtkDepthSortPolyData.h.

---

The documentation for this class was generated from the following file:

• Hybrid/vtkDepthSortPolyData.h

---
