vtkTransform Class Reference

describes linear transformations via a 4x4 matrix. More...

#include <vtkTransform.h>

Inheritance diagram for vtkTransform:

Inheritance graph
[legend]

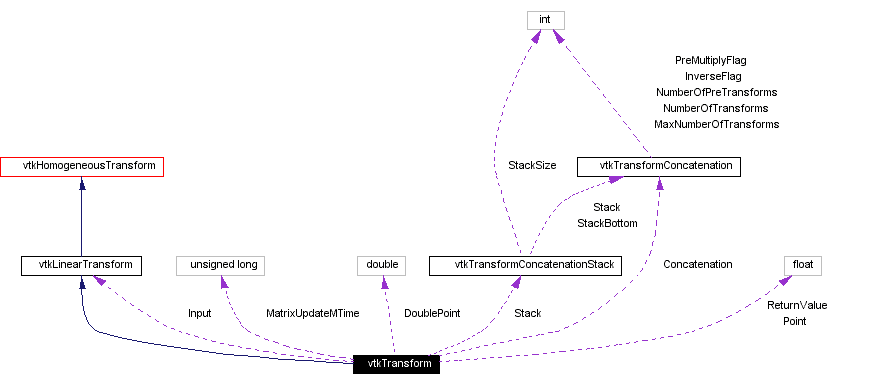

Collaboration diagram for vtkTransform:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Identity ()
void Inverse ()
void Concatenate (vtkLinearTransform *transform)
void GetInverse (vtkMatrix4x4 *inverse)
void GetTranspose (vtkMatrix4x4 *transpose)
int CircuitCheck (vtkAbstractTransform *transform)
vtkAbstractTransform * GetInverse ()
vtkAbstractTransform * MakeTransform ()
unsigned long GetMTime ()
void Translate (double x, double y, double z)
void Translate (const double x[3])
void Translate (const float x[3])
void RotateWXYZ (double angle, double x, double y, double z)
void RotateWXYZ (double angle, const double axis[3])
void RotateWXYZ (double angle, const float axis[3])
void RotateX (double angle)
void RotateY (double angle)
void RotateZ (double angle)
void Scale (double x, double y, double z)
void Scale (const double s[3])
void Scale (const float s[3])
void SetMatrix (vtkMatrix4x4 *matrix)
void SetMatrix (const double elements[16])
void Concatenate (vtkMatrix4x4 *matrix)
void Concatenate (const double elements[16])
void PreMultiply ()
void PostMultiply ()
int GetNumberOfConcatenatedTransforms ()
vtkLinearTransform * GetConcatenatedTransform (int i)
void GetOrientation (double orient[3])
void GetOrientation (float orient[3])
float * GetOrientation ()
void GetOrientationWXYZ (double wxyz[4])
void GetOrientationWXYZ (float wxyz[3])
float * GetOrientationWXYZ ()
void GetPosition (double pos[3])
void GetPosition (float pos[3])
float * GetPosition ()
void GetScale (double scale[3])
void GetScale (float scale[3])
float * GetScale ()
void SetInput (vtkLinearTransform *input)
vtkLinearTransform * GetInput ()
int GetInverseFlag ()
void Push ()
void Pop ()
void MultiplyPoint (const float in[4], float out[4])
void MultiplyPoint (const double in[4], double out[4])

Static Public Methods

vtkTransform * New ()
int IsTypeOf (const char *type)
vtkTransform * SafeDownCast (vtkObject *o)

Protected Methods

 vtkTransform ()
 ~vtkTransform ()
void InternalDeepCopy (vtkAbstractTransform *t)
void InternalUpdate ()

Protected Attributes

vtkLinearTransform * Input
vtkTransformConcatenation * Concatenation
vtkTransformConcatenationStack * Stack
unsigned long MatrixUpdateMTime
float Point [4]
double DoublePoint [4]
float ReturnValue [4]

Detailed Description

describes linear transformations via a 4x4 matrix.

Date:
2001/10/11 13:36:26
Revision:
1.80

A vtkTransform can be used to describe the full range of linear (also known as affine) coordinate transformations in three dimensions, which are internally represented as a 4x4 homogeneous transformation matrix. When you create a new vtkTransform, it is always initialized to the identity transformation.

The SetInput() method allows you to set another transform, instead of the identity transform, to be the base transformation. There is a pipeline mechanism to ensure that when the input is modified, the current transformation will be updated accordingly. This pipeline mechanism is also supported by the Concatenate() method.

Most of the methods for manipulating this transformation, e.g. Translate, Rotate, and Concatenate, can operate in either PreMultiply (the default) or PostMultiply mode. In PreMultiply mode, the translation, concatenation, etc. will occur before any transformations which are represented by the current matrix. In PostMultiply mode, the additional transformation will occur after any transformations represented by the current matrix.

This class performs all of its operations in a right handed coordinate system with right handed rotations. Some other graphics libraries use left handed coordinate systems and rotations.

See also:
vtkPerspectiveTransform vtkGeneralTransform vtkMatrix4x4 vtkTransformCollection vtkTransformFilter vtkTransformPolyDataFilter vtkImageReslice
Examples:
vtkTransform (Examples)
Tests:
vtkTransform (Tests)

Definition at line 85 of file vtkTransform.h.

Constructor & Destructor Documentation

vtkTransform::vtkTransform (    )  [protected]


vtkTransform::~vtkTransform (    )  [protected]


Member Function Documentation

vtkTransform* vtkTransform::New (    )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkTransform::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLinearTransform.

int vtkTransform::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLinearTransform.

virtual int vtkTransform::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLinearTransform.

vtkTransform* vtkTransform::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLinearTransform.

void vtkTransform::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkLinearTransform.

void vtkTransform::Identity (    )


Set the transformation to the identity transformation. If the transform has an Input, then the transformation will be reset so that it is the same as the Input.

Reimplemented from vtkAbstractTransform.

void vtkTransform::Inverse (    )  [virtual]


Invert the transformation. This will also set a flag so that the transformation will use the inverse of its Input, if an Input has been set.

Reimplemented from vtkAbstractTransform.

void vtkTransform::Translate (  double    x,
double    y,
double    z
)  [inline]


Create a translation matrix and concatenate it with the current transformation according to PreMultiply or PostMultiply semantics.

Definition at line 105 of file vtkTransform.h.

void vtkTransform::Translate (  const double    x[3] )  [inline]


Create a translation matrix and concatenate it with the current transformation according to PreMultiply or PostMultiply semantics.

Definition at line 107 of file vtkTransform.h.

void vtkTransform::Translate (  const float    x[3] )  [inline]


Create a translation matrix and concatenate it with the current transformation according to PreMultiply or PostMultiply semantics.

Definition at line 108 of file vtkTransform.h.

void vtkTransform::RotateWXYZ (  double    angle,
double    x,
double    y,
double    z
)  [inline]


Create a rotation matrix and concatenate it with the current transformation according to PreMultiply or PostMultiply semantics. The angle is in degrees, and (x,y,z) specifies the axis that the rotation will be performed around.

Definition at line 116 of file vtkTransform.h.

void vtkTransform::RotateWXYZ (  double    angle,
const double    axis[3]
)  [inline]


Create a rotation matrix and concatenate it with the current transformation according to PreMultiply or PostMultiply semantics. The angle is in degrees, and (x,y,z) specifies the axis that the rotation will be performed around.

Definition at line 118 of file vtkTransform.h.

void vtkTransform::RotateWXYZ (  double    angle,
const float    axis[3]
)  [inline]


Create a rotation matrix and concatenate it with the current transformation according to PreMultiply or PostMultiply semantics. The angle is in degrees, and (x,y,z) specifies the axis that the rotation will be performed around.

Definition at line 120 of file vtkTransform.h.

void vtkTransform::RotateX (  double    angle )  [inline]


Create a rotation matrix about the X, Y, or Z axis and concatenate it with the current transformation according to PreMultiply or PostMultiply semantics. The angle is expressed in degrees.

Definition at line 128 of file vtkTransform.h.

void vtkTransform::RotateY (  double    angle )  [inline]


Create a rotation matrix about the X, Y, or Z axis and concatenate it with the current transformation according to PreMultiply or PostMultiply semantics. The angle is expressed in degrees.

Definition at line 129 of file vtkTransform.h.

void vtkTransform::RotateZ (  double    angle )  [inline]


Create a rotation matrix about the X, Y, or Z axis and concatenate it with the current transformation according to PreMultiply or PostMultiply semantics. The angle is expressed in degrees.

Definition at line 130 of file vtkTransform.h.

void vtkTransform::Scale (  double    x,
double    y,
double    z
)  [inline]


Create a scale matrix (i.e. set the diagonal elements to x, y, z) and concatenate it with the current transformation according to PreMultiply or PostMultiply semantics.

Definition at line 137 of file vtkTransform.h.

void vtkTransform::Scale (  const double    s[3] )  [inline]


Create a scale matrix (i.e. set the diagonal elements to x, y, z) and concatenate it with the current transformation according to PreMultiply or PostMultiply semantics.

Definition at line 139 of file vtkTransform.h.

void vtkTransform::Scale (  const float    s[3] )  [inline]


Create a scale matrix (i.e. set the diagonal elements to x, y, z) and concatenate it with the current transformation according to PreMultiply or PostMultiply semantics.

Definition at line 140 of file vtkTransform.h.

void vtkTransform::SetMatrix (  vtkMatrix4x4 *    matrix )  [inline]


Set the current matrix directly. This actually calls Identity(), followed by Concatenate(matrix).

Definition at line 146 of file vtkTransform.h.

void vtkTransform::SetMatrix (  const double    elements[16] )  [inline]


Set the current matrix directly. This actually calls Identity(), followed by Concatenate(matrix).

Definition at line 148 of file vtkTransform.h.

void vtkTransform::Concatenate (  vtkMatrix4x4 *    matrix )  [inline]


Concatenates the matrix with the current transformation according to PreMultiply or PostMultiply semantics.

Definition at line 155 of file vtkTransform.h.

void vtkTransform::Concatenate (  const double    elements[16] )  [inline]


Concatenates the matrix with the current transformation according to PreMultiply or PostMultiply semantics.

Definition at line 157 of file vtkTransform.h.

void vtkTransform::Concatenate (  vtkLinearTransform *    transform )


Concatenate the specified transform with the current transformation according to PreMultiply or PostMultiply semantics. The concatenation is pipelined, meaning that if any of the transformations are changed, even after Concatenate() is called, those changes will be reflected when you call TransformPoint().

void vtkTransform::PreMultiply (    )  [inline]


Sets the internal state of the transform to PreMultiply. All subsequent operations will occur before those already represented in the current transformation. In homogeneous matrix notation, M = M*A where M is the current transformation matrix and A is the applied matrix. The default is PreMultiply.

Definition at line 174 of file vtkTransform.h.

void vtkTransform::PostMultiply (    )  [inline]


Sets the internal state of the transform to PostMultiply. All subsequent operations will occur after those already represented in the current transformation. In homogeneous matrix notation, M = A*M where M is the current transformation matrix and A is the applied matrix. The default is PreMultiply.

Definition at line 185 of file vtkTransform.h.

int vtkTransform::GetNumberOfConcatenatedTransforms (    )  [inline]


Get the total number of transformations that are linked into this one via Concatenate() operations or via SetInput().

Definition at line 193 of file vtkTransform.h.

vtkLinearTransform* vtkTransform::GetConcatenatedTransform (  int    i )  [inline]


Get one of the concatenated transformations as a vtkAbstractTransform. These transformations are applied, in series, every time the transformation of a coordinate occurs. This method is provided to make it possible to decompose a transformation into its constituents, for example to save a transformation to a file.

Definition at line 204 of file vtkTransform.h.

void vtkTransform::GetOrientation (  double    orient[3] )


Get the x, y, z orientation angles from the transformation matrix as an array of three floating point values.

void vtkTransform::GetOrientation (  float    orient[3] )  [inline]


Get the x, y, z orientation angles from the transformation matrix as an array of three floating point values.

Definition at line 221 of file vtkTransform.h.

float* vtkTransform::GetOrientation (    )  [inline]


Get the x, y, z orientation angles from the transformation matrix as an array of three floating point values.

Definition at line 224 of file vtkTransform.h.

void vtkTransform::GetOrientationWXYZ (  double    wxyz[4] )


Return the wxyz angle+axis representing the current orientation.

void vtkTransform::GetOrientationWXYZ (  float    wxyz[3] )  [inline]


Return the wxyz angle+axis representing the current orientation.

Definition at line 231 of file vtkTransform.h.

float* vtkTransform::GetOrientationWXYZ (    )  [inline]


Return the wxyz angle+axis representing the current orientation.

Definition at line 234 of file vtkTransform.h.

void vtkTransform::GetPosition (  double    pos[3] )


Return the position from the current transformation matrix as an array of three floating point numbers. This is simply returning the translation component of the 4x4 matrix.

void vtkTransform::GetPosition (  float    pos[3] )  [inline]


Return the position from the current transformation matrix as an array of three floating point numbers. This is simply returning the translation component of the 4x4 matrix.

Definition at line 243 of file vtkTransform.h.

float* vtkTransform::GetPosition (    )  [inline]


Return the position from the current transformation matrix as an array of three floating point numbers. This is simply returning the translation component of the 4x4 matrix.

Definition at line 246 of file vtkTransform.h.

void vtkTransform::GetScale (  double    scale[3] )


Return the scale factors of the current transformation matrix as an array of three float numbers. These scale factors are not necessarily about the x, y, and z axes unless unless the scale transformation was applied before any rotations.

void vtkTransform::GetScale (  float    scale[3] )  [inline]


Return the scale factors of the current transformation matrix as an array of three float numbers. These scale factors are not necessarily about the x, y, and z axes unless unless the scale transformation was applied before any rotations.

Definition at line 256 of file vtkTransform.h.

float* vtkTransform::GetScale (    )  [inline]


Return the scale factors of the current transformation matrix as an array of three float numbers. These scale factors are not necessarily about the x, y, and z axes unless unless the scale transformation was applied before any rotations.

Definition at line 259 of file vtkTransform.h.

void vtkTransform::GetInverse (  vtkMatrix4x4 *    inverse )


Return a matrix which is the inverse of the current transformation matrix.

void vtkTransform::GetTranspose (  vtkMatrix4x4 *    transpose )


Return a matrix which is the transpose of the current transformation matrix. This is equivalent to the inverse if and only if the transformation is a pure rotation with no translation or scale.

void vtkTransform::SetInput (  vtkLinearTransform *    input )


Set the input for this transformation. This will be used as the base transformation if it is set. This method allows you to build a transform pipeline: if the input is modified, then this transformation will automatically update accordingly. Note that the InverseFlag, controlled via Inverse(), determines whether this transformation will use the Input or the inverse of the Input.

vtkLinearTransform* vtkTransform::GetInput (    )  [inline]


Set the input for this transformation. This will be used as the base transformation if it is set. This method allows you to build a transform pipeline: if the input is modified, then this transformation will automatically update accordingly. Note that the InverseFlag, controlled via Inverse(), determines whether this transformation will use the Input or the inverse of the Input.

Definition at line 280 of file vtkTransform.h.

int vtkTransform::GetInverseFlag (    )  [inline]


Get the inverse flag of the transformation. This controls whether it is the Input or the inverse of the Input that is used as the base transformation. The InverseFlag is flipped every time Inverse() is called. The InverseFlag is off when a transform is first created.

Definition at line 288 of file vtkTransform.h.

void vtkTransform::Push (    )  [inline]


Pushes the current transformation onto the transformation stack.

Definition at line 294 of file vtkTransform.h.

void vtkTransform::Pop (    )  [inline]


Deletes the transformation on the top of the stack and sets the top to the next transformation on the stack.

Definition at line 303 of file vtkTransform.h.

int vtkTransform::CircuitCheck (  vtkAbstractTransform *    transform )  [virtual]


Check for self-reference. Will return true if concatenating with the specified transform, setting it to be our inverse, or setting it to be our input will create a circular reference. CircuitCheck is automatically called by SetInput(), SetInverse(), and Concatenate(vtkXTransform *). Avoid using this function, it is experimental.

Reimplemented from vtkAbstractTransform.

vtkAbstractTransform* vtkTransform::GetInverse (    )  [inline]


Get the inverse of this transform. If you modify this transform, the returned inverse transform will automatically update. If you want the inverse of a vtkTransform, you might want to use GetLinearInverse() instead which will type cast the result from vtkAbstractTransform to vtkLinearTransform.

Reimplemented from vtkAbstractTransform.

Definition at line 318 of file vtkTransform.h.

vtkAbstractTransform* vtkTransform::MakeTransform (    )  [virtual]


Make a new transform of the same type.

Reimplemented from vtkAbstractTransform.

unsigned long vtkTransform::GetMTime (    )  [virtual]


Override GetMTime to account for input and concatenation.

Reimplemented from vtkAbstractTransform.

void vtkTransform::MultiplyPoint (  const float    in[4],
float    out[4]
)  [inline]


Use this method only if you wish to compute the transformation in homogeneous (x,y,z,w) coordinates, otherwise use TransformPoint(). This method calls this->GetMatrix()->MultiplyPoint().

Definition at line 331 of file vtkTransform.h.

void vtkTransform::MultiplyPoint (  const double    in[4],
double    out[4]
)  [inline]


Use this method only if you wish to compute the transformation in homogeneous (x,y,z,w) coordinates, otherwise use TransformPoint(). This method calls this->GetMatrix()->MultiplyPoint().

Definition at line 333 of file vtkTransform.h.

void vtkTransform::InternalDeepCopy (  vtkAbstractTransform *    t )  [protected, virtual]


Perform any subclass-specific DeepCopy.

Reimplemented from vtkHomogeneousTransform.

void vtkTransform::InternalUpdate (    )  [protected, virtual]


Perform any subclass-specific Update.

Reimplemented from vtkAbstractTransform.

Member Data Documentation

vtkLinearTransform* vtkTransform::Input [protected]


Definition at line 345 of file vtkTransform.h.

vtkTransformConcatenation* vtkTransform::Concatenation [protected]


Definition at line 346 of file vtkTransform.h.

vtkTransformConcatenationStack* vtkTransform::Stack [protected]


Definition at line 347 of file vtkTransform.h.

unsigned long vtkTransform::MatrixUpdateMTime [protected]


Definition at line 351 of file vtkTransform.h.

float vtkTransform::Point[4] [protected]


Definition at line 353 of file vtkTransform.h.

double vtkTransform::DoublePoint[4] [protected]


Definition at line 354 of file vtkTransform.h.

float vtkTransform::ReturnValue[4] [protected]


Definition at line 355 of file vtkTransform.h.

The documentation for this class was generated from the following file:
Generated on Thu Mar 28 14:44:17 2002 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
