vtkDividingCubes Class Reference
create points lying on isosurface.
More...
#include <vtkDividingCubes.h>
Inheritance diagram for vtkDividingCubes:

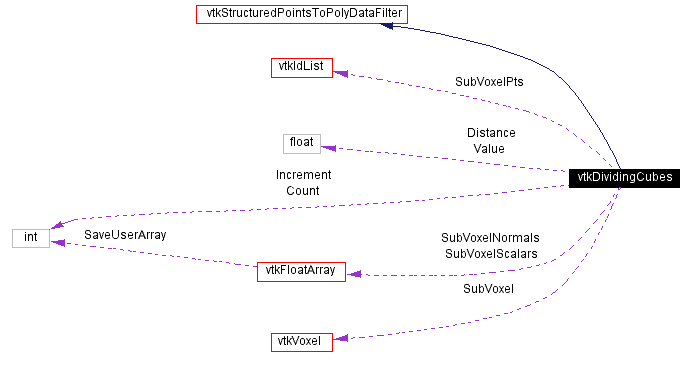

[legend]Collaboration diagram for vtkDividingCubes:
[legend]List of all members.
Detailed Description
create points lying on isosurface.
-
Date:
-
2001/12/17 15:42:37
-
Revision:
-
1.42.2.1
vtkDividingCubes is a filter that generates points lying on a surface of constant scalar value (i.e., an isosurface). Dense point clouds (i.e., at screen resolution) will appear as a surface. Less dense clouds can be used as a source to generate streamlines or to generate "transparent" surfaces. This filter is based on the generate program written by H. Cline, S. Ludke and W. Lorensen.
The density of the point cloud is controlled by the Distance instance variable. This is a distance value in global coordinates specifying the approximate distance between points.
-
Tests:
-
vtkDividingCubes (Tests)
Definition at line 81 of file vtkDividingCubes.h.
Constructor & Destructor Documentation
| vtkDividingCubes::vtkDividingCubes |
( |
|
) |
[protected] |
|
| vtkDividingCubes::~vtkDividingCubes |
( |
|
) |
[protected] |
|
Member Function Documentation
| vtkDividingCubes* vtkDividingCubes::New |
( |
|
) |
[static] |
|
|
|
Instantiate object with no start, end, or progress methods.
Reimplemented from vtkPolyDataSource. |
| virtual const char* vtkDividingCubes::GetClassName |
( |
|
) |
[virtual] |
|
| int vtkDividingCubes::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkStructuredPointsToPolyDataFilter. |
| virtual int vtkDividingCubes::IsA |
( |
const char * |
type |
) |
[virtual] |
|
| vtkDividingCubes* vtkDividingCubes::SafeDownCast |
( |
vtkObject * |
o |
) |
[static] |
|
| void vtkDividingCubes::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkSource. |
| virtual void vtkDividingCubes::SetValue |
( |
float |
|
) |
[virtual] |
|
| virtual float vtkDividingCubes::GetValue |
( |
|
) |
[virtual] |
|
| virtual void vtkDividingCubes::SetDistance |
( |
float |
|
) |
[virtual] |
|
|
|
Specify sub-voxel size at which to generate point. |
| virtual float vtkDividingCubes::GetDistance |
( |
|
) |
[virtual] |
|
|
|
Specify sub-voxel size at which to generate point. |
| virtual void vtkDividingCubes::SetIncrement |
( |
int |
|
) |
[virtual] |
|
|
|
Every "Increment" point is added to the list of points. This parameter, if set to a large value, can be used to limit the number of points while retaining good accuracy. |
| virtual int vtkDividingCubes::GetIncrement |
( |
|
) |
[virtual] |
|
|
|
Every "Increment" point is added to the list of points. This parameter, if set to a large value, can be used to limit the number of points while retaining good accuracy. |
| void vtkDividingCubes::Execute |
( |
|
) |
[protected, virtual] |
|
|
|
This method is the old style execute method
Reimplemented from vtkSource. |
| void vtkDividingCubes::SubDivide |
( |
float |
origin[3], |
|
|
int |
dim[3], |
|
|
float |
h[3], |
|
|
float |
values[8] |
|
) |
[protected] |
|
Member Data Documentation
float vtkDividingCubes::Value [protected]
|
|
float vtkDividingCubes::Distance [protected]
|
|
int vtkDividingCubes::Increment [protected]
|
|
int vtkDividingCubes::Count [protected]
|
|
vtkIdList* vtkDividingCubes::SubVoxelPts [protected]
|
|
vtkVoxel* vtkDividingCubes::SubVoxel [protected]
|
|
The documentation for this class was generated from the following file:
