vtkStructuredPointsToPolyDataFilter Class Reference

abstract filter class. More...

#include <vtkStructuredPointsToPolyDataFilter.h>

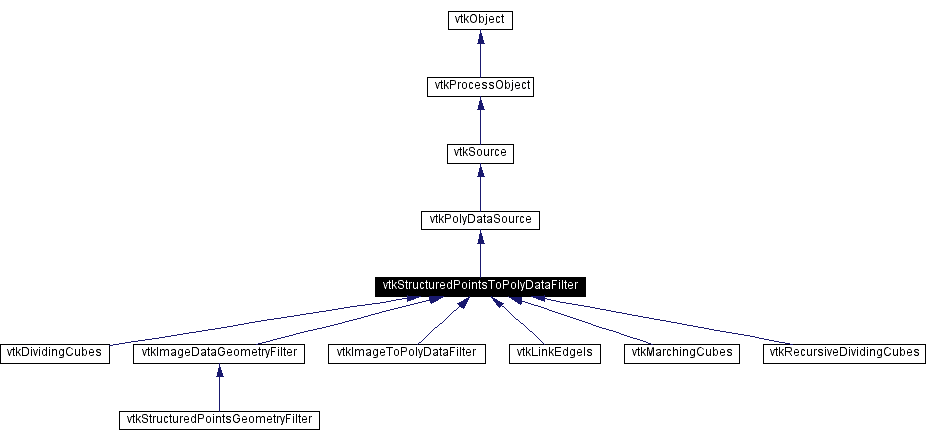

Inheritance diagram for vtkStructuredPointsToPolyDataFilter:

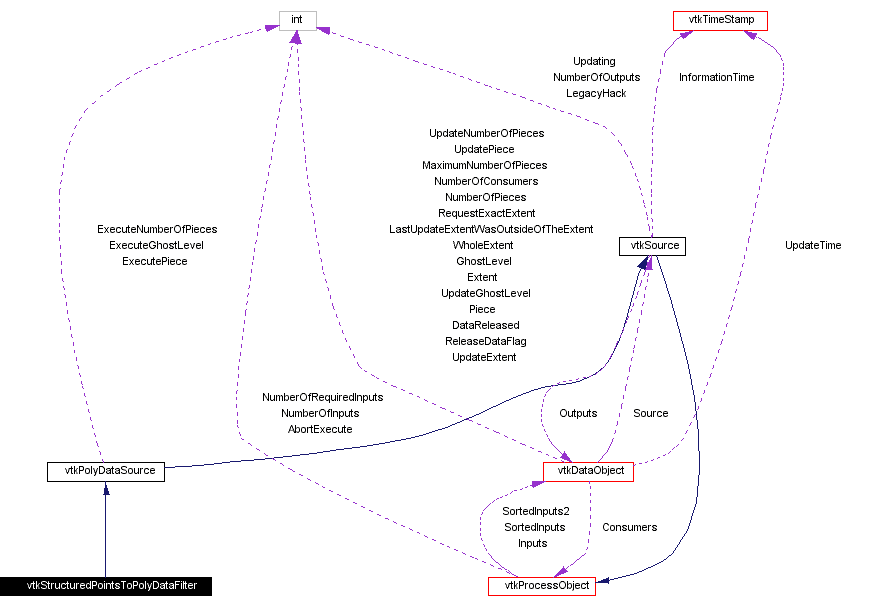

[legend]Collaboration diagram for vtkStructuredPointsToPolyDataFilter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	SetInput (vtkImageData *input)
vtkImageData *	GetInput ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkStructuredPointsToPolyDataFilter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkStructuredPointsToPolyDataFilter ()
	~vtkStructuredPointsToPolyDataFilter ()
void	ComputeInputUpdateExtents (vtkDataObject *output)

---

Detailed Description

abstract filter class.

Date:

2001/11/01 18:02:48

Revision:

1.40

vtkStructuredPointsToPolyDataFilter is an abstract filter class whose subclasses take on input structured points and generate polygonal data on output.

See also:

vtkDividingCubes vtkMarchingCubes vtkMarchingSquares vtkRecursiveDividingCubes vtkImageDataGeometryFilter

Definition at line 62 of file vtkStructuredPointsToPolyDataFilter.h.

---

Constructor & Destructor Documentation

vtkStructuredPointsToPolyDataFilter::vtkStructuredPointsToPolyDataFilter (    )  [inline, protected]

Definition at line 74 of file vtkStructuredPointsToPolyDataFilter.h.

vtkStructuredPointsToPolyDataFilter::~vtkStructuredPointsToPolyDataFilter (    )  [inline, protected]

Definition at line 75 of file vtkStructuredPointsToPolyDataFilter.h.

---

Member Function Documentation

virtual const char* vtkStructuredPointsToPolyDataFilter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource. Reimplemented in vtkImageDataGeometryFilter, vtkLinkEdgels, vtkRecursiveDividingCubes, vtkStructuredPointsGeometryFilter, vtkImageToPolyDataFilter, vtkDividingCubes, and vtkMarchingCubes.

int vtkStructuredPointsToPolyDataFilter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource. Reimplemented in vtkImageDataGeometryFilter, vtkLinkEdgels, vtkRecursiveDividingCubes, vtkStructuredPointsGeometryFilter, vtkImageToPolyDataFilter, vtkDividingCubes, and vtkMarchingCubes.

virtual int vtkStructuredPointsToPolyDataFilter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource. Reimplemented in vtkImageDataGeometryFilter, vtkLinkEdgels, vtkRecursiveDividingCubes, vtkStructuredPointsGeometryFilter, vtkImageToPolyDataFilter, vtkDividingCubes, and vtkMarchingCubes.

vtkStructuredPointsToPolyDataFilter* vtkStructuredPointsToPolyDataFilter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource. Reimplemented in vtkImageDataGeometryFilter, vtkLinkEdgels, vtkRecursiveDividingCubes, vtkStructuredPointsGeometryFilter, vtkImageToPolyDataFilter, vtkDividingCubes, and vtkMarchingCubes.

void vtkStructuredPointsToPolyDataFilter::SetInput (  vtkImageData *    input )

Set / get the input data or filter.

vtkImageData* vtkStructuredPointsToPolyDataFilter::GetInput (    )

Set / get the input data or filter.

void vtkStructuredPointsToPolyDataFilter::ComputeInputUpdateExtents (  vtkDataObject *    output )  [protected, virtual]

What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses. Reimplemented from vtkPolyDataSource.

---

The documentation for this class was generated from the following file:

• Filtering/vtkStructuredPointsToPolyDataFilter.h

---
