vtkEdgePoints Class Reference

generate points on isosurface. More...

#include <vtkEdgePoints.h>

Inheritance diagram for vtkEdgePoints:

Inheritance graph
[legend]

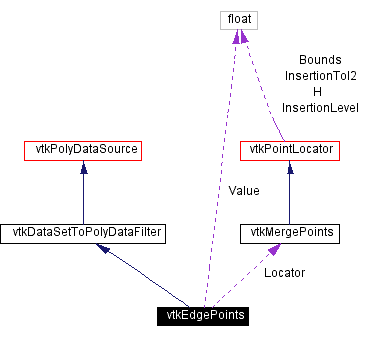

Collaboration diagram for vtkEdgePoints:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetValue (float)
virtual float GetValue ()

Static Public Methods

int IsTypeOf (const char *type)
vtkEdgePoints * SafeDownCast (vtkObject *o)
vtkEdgePoints * New ()

Protected Methods

 vtkEdgePoints ()
 ~vtkEdgePoints ()
void Execute ()

Protected Attributes

float Value
vtkMergePointsLocator

Detailed Description

generate points on isosurface.

Date:
2001/10/11 13:36:58
Revision:
1.33

vtkEdgePoints is a filter that takes as input any dataset and generates for output a set of points that lie on an isosurface. The points are created by interpolation along cells edges whose end-points are below and above the contour value.

Warning:
vtkEdgePoints can be considered a "poor man's" dividing cubes algorithm (see vtkDividingCubes). Points are generated only on the edges of cells, not in the interior, and at lower density than dividing cubes. However, it is more general than dividing cubes since it treats any type of dataset.
Tests:
vtkEdgePoints (Tests)

Definition at line 66 of file vtkEdgePoints.h.


Constructor & Destructor Documentation

vtkEdgePoints::vtkEdgePoints   [protected]


vtkEdgePoints::~vtkEdgePoints   [protected]



Member Function Documentation

virtual const char* vtkEdgePoints::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetToPolyDataFilter.

int vtkEdgePoints::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetToPolyDataFilter.

virtual int vtkEdgePoints::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetToPolyDataFilter.

vtkEdgePoints* vtkEdgePoints::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetToPolyDataFilter.

void vtkEdgePoints::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

vtkEdgePoints* vtkEdgePoints::New   [static]


Construct object with contour value of 0.0.

Reimplemented from vtkPolyDataSource.

virtual void vtkEdgePoints::SetValue float    [virtual]


Set/get the contour value.

virtual float vtkEdgePoints::GetValue   [virtual]


Set/get the contour value.

void vtkEdgePoints::Execute   [protected, virtual]


This method is the old style execute method

Reimplemented from vtkSource.


Member Data Documentation

float vtkEdgePoints::Value [protected]


Definition at line 87 of file vtkEdgePoints.h.

vtkMergePoints* vtkEdgePoints::Locator [protected]


Definition at line 88 of file vtkEdgePoints.h.


The documentation for this class was generated from the following file:
