vtkImageAnisotropicDiffusion3D Class Reference

edge preserving smoothing. More...

#include <vtkImageAnisotropicDiffusion3D.h>

Inheritance diagram for vtkImageAnisotropicDiffusion3D:

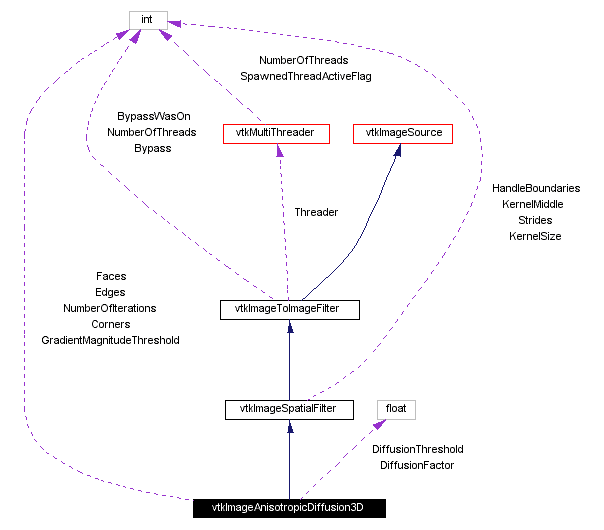

[legend]Collaboration diagram for vtkImageAnisotropicDiffusion3D:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetNumberOfIterations (int num)
virtual int	GetNumberOfIterations ()
virtual void	SetDiffusionThreshold (float)
virtual float	GetDiffusionThreshold ()
virtual void	SetDiffusionFactor (float)
virtual float	GetDiffusionFactor ()
virtual void	SetFaces (int)
virtual int	GetFaces ()
virtual void	FacesOn ()
virtual void	FacesOff ()
virtual void	SetEdges (int)
virtual int	GetEdges ()
virtual void	EdgesOn ()
virtual void	EdgesOff ()
virtual void	SetCorners (int)
virtual int	GetCorners ()
virtual void	CornersOn ()
virtual void	CornersOff ()
virtual void	SetGradientMagnitudeThreshold (int)
virtual int	GetGradientMagnitudeThreshold ()
virtual void	GradientMagnitudeThresholdOn ()
virtual void	GradientMagnitudeThresholdOff ()
Static Public Methods
vtkImageAnisotropicDiffusion3D *	New ()
int	IsTypeOf (const char *type)
vtkImageAnisotropicDiffusion3D *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageAnisotropicDiffusion3D ()
	~vtkImageAnisotropicDiffusion3D ()
void	ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int extent[6], int id)
void	Iterate (vtkImageData *in, vtkImageData *out, float ar0, float ar1, float ar3, int *coreExtent, int count)
Protected Attributes
int	NumberOfIterations
float	DiffusionThreshold
float	DiffusionFactor
int	Faces
int	Edges
int	Corners
int	GradientMagnitudeThreshold

---

Detailed Description

edge preserving smoothing.

Date:

2001/12/07 14:02:27

Revision:

1.28

Thanks:

Thanks to C. Charles Law who developed this class.

vtkImageAnisotropicDiffusion3D diffuses an volume iteratively. The neighborhood of the diffusion is determined by the instance flags. if "Faces" is on, the 6 voxels adjoined by faces are included in the neighborhood. If "Edges" is on the 12 edge connected voxels are included, and if "Corners" is on, the 8 corner connected voxels are included. "DiffusionFactor" determines how far a pixel value moves toward its neighbors, and is insensitive to the number of neighbors chosen. The diffusion is anisotropic because it only occurs when a gradient measure is below "GradientThreshold". Two gradient measures exist and are toggled by the "GradientMagnitudeThreshold" flag. When "GradientMagnitudeThreshold" is on, the magnitude of the gradient, computed by central differences, above "DiffusionThreshold" a voxel is not modified. The alternative measure examines each neighbor independently. The gradient between the voxel and the neighbor must be below the "DiffusionThreshold" for diffusion to occur with THAT neighbor.

See also:

vtkImageAnisotropicDiffusion2D

Tests:

vtkImageAnisotropicDiffusion3D (Tests)

Definition at line 78 of file vtkImageAnisotropicDiffusion3D.h.

---

Constructor & Destructor Documentation

vtkImageAnisotropicDiffusion3D::vtkImageAnisotropicDiffusion3D (    )  [protected]

vtkImageAnisotropicDiffusion3D::~vtkImageAnisotropicDiffusion3D (    )  [inline, protected]

Definition at line 137 of file vtkImageAnisotropicDiffusion3D.h.

---

Member Function Documentation

vtkImageAnisotropicDiffusion3D* vtkImageAnisotropicDiffusion3D::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageSpatialFilter.

virtual const char* vtkImageAnisotropicDiffusion3D::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSpatialFilter.

int vtkImageAnisotropicDiffusion3D::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSpatialFilter.

virtual int vtkImageAnisotropicDiffusion3D::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSpatialFilter.

vtkImageAnisotropicDiffusion3D* vtkImageAnisotropicDiffusion3D::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSpatialFilter.

void vtkImageAnisotropicDiffusion3D::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageSpatialFilter.

void vtkImageAnisotropicDiffusion3D::SetNumberOfIterations (  int    num )

This method sets the number of interations which also affects the input neighborhood needed to compute one output pixel. Each iterations requires an extra pixel layer on the neighborhood. This is only relavent when you are trying to stream or are requesting a sub extent of the "wholeExtent".

virtual int vtkImageAnisotropicDiffusion3D::GetNumberOfIterations (    )  [virtual]

Get the number of iterations.

virtual void vtkImageAnisotropicDiffusion3D::SetDiffusionThreshold (  float    )  [virtual]

Set/Get the difference threshold that stops diffusion. when the difference between two pixel is greater than this threshold, the pixels are not diffused. This causes diffusion to avoid sharp edges. If the GradientMagnitudeThreshold is set, then gradient magnitude is used for comparison instead of pixel differences.

virtual float vtkImageAnisotropicDiffusion3D::GetDiffusionThreshold (    )  [virtual]

Set/Get the difference threshold that stops diffusion. when the difference between two pixel is greater than this threshold, the pixels are not diffused. This causes diffusion to avoid sharp edges. If the GradientMagnitudeThreshold is set, then gradient magnitude is used for comparison instead of pixel differences.

virtual void vtkImageAnisotropicDiffusion3D::SetDiffusionFactor (  float    )  [virtual]

Set/Get the difference factor

virtual float vtkImageAnisotropicDiffusion3D::GetDiffusionFactor (    )  [virtual]

Set/Get the difference factor

virtual void vtkImageAnisotropicDiffusion3D::SetFaces (  int    )  [virtual]

Choose neighbors to diffuse (6 faces, 12 edges, 8 corners).

virtual int vtkImageAnisotropicDiffusion3D::GetFaces (    )  [virtual]

Choose neighbors to diffuse (6 faces, 12 edges, 8 corners).

virtual void vtkImageAnisotropicDiffusion3D::FacesOn (    )  [virtual]

Choose neighbors to diffuse (6 faces, 12 edges, 8 corners).

virtual void vtkImageAnisotropicDiffusion3D::FacesOff (    )  [virtual]

Choose neighbors to diffuse (6 faces, 12 edges, 8 corners).

virtual void vtkImageAnisotropicDiffusion3D::SetEdges (  int    )  [virtual]

Choose neighbors to diffuse (6 faces, 12 edges, 8 corners).

virtual int vtkImageAnisotropicDiffusion3D::GetEdges (    )  [virtual]

Choose neighbors to diffuse (6 faces, 12 edges, 8 corners).

virtual void vtkImageAnisotropicDiffusion3D::EdgesOn (    )  [virtual]

Choose neighbors to diffuse (6 faces, 12 edges, 8 corners).

virtual void vtkImageAnisotropicDiffusion3D::EdgesOff (    )  [virtual]

Choose neighbors to diffuse (6 faces, 12 edges, 8 corners).

virtual void vtkImageAnisotropicDiffusion3D::SetCorners (  int    )  [virtual]

Choose neighbors to diffuse (6 faces, 12 edges, 8 corners).

virtual int vtkImageAnisotropicDiffusion3D::GetCorners (    )  [virtual]

Choose neighbors to diffuse (6 faces, 12 edges, 8 corners).

virtual void vtkImageAnisotropicDiffusion3D::CornersOn (    )  [virtual]

Choose neighbors to diffuse (6 faces, 12 edges, 8 corners).

virtual void vtkImageAnisotropicDiffusion3D::CornersOff (    )  [virtual]

Choose neighbors to diffuse (6 faces, 12 edges, 8 corners).

virtual void vtkImageAnisotropicDiffusion3D::SetGradientMagnitudeThreshold (  int    )  [virtual]

Switch between gradient magnitude threshold and pixel gradient threshold.

virtual int vtkImageAnisotropicDiffusion3D::GetGradientMagnitudeThreshold (    )  [virtual]

Switch between gradient magnitude threshold and pixel gradient threshold.

virtual void vtkImageAnisotropicDiffusion3D::GradientMagnitudeThresholdOn (    )  [virtual]

Switch between gradient magnitude threshold and pixel gradient threshold.

virtual void vtkImageAnisotropicDiffusion3D::GradientMagnitudeThresholdOff (    )  [virtual]

Switch between gradient magnitude threshold and pixel gradient threshold.

void vtkImageAnisotropicDiffusion3D::ThreadedExecute (  vtkImageData *    inData, vtkImageData *    outData, int    extent[6], int    id )  [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkImageToImageFilter.

void vtkImageAnisotropicDiffusion3D::Iterate (  vtkImageData *    in, vtkImageData *    out, float    ar0, float    ar1, float    ar3, int *    coreExtent, int    count )  [protected]

---

Member Data Documentation

int vtkImageAnisotropicDiffusion3D::NumberOfIterations [protected]

Definition at line 139 of file vtkImageAnisotropicDiffusion3D.h.

float vtkImageAnisotropicDiffusion3D::DiffusionThreshold [protected]

Definition at line 140 of file vtkImageAnisotropicDiffusion3D.h.

float vtkImageAnisotropicDiffusion3D::DiffusionFactor [protected]

Definition at line 141 of file vtkImageAnisotropicDiffusion3D.h.

int vtkImageAnisotropicDiffusion3D::Faces [protected]

Definition at line 143 of file vtkImageAnisotropicDiffusion3D.h.

int vtkImageAnisotropicDiffusion3D::Edges [protected]

Definition at line 144 of file vtkImageAnisotropicDiffusion3D.h.

int vtkImageAnisotropicDiffusion3D::Corners [protected]

Definition at line 145 of file vtkImageAnisotropicDiffusion3D.h.

int vtkImageAnisotropicDiffusion3D::GradientMagnitudeThreshold [protected]

Definition at line 147 of file vtkImageAnisotropicDiffusion3D.h.

---

The documentation for this class was generated from the following file:

• Imaging/vtkImageAnisotropicDiffusion3D.h

---
