vtkImageButterworthLowPass Class Reference

Frequency domain Low pass. More...

#include <vtkImageButterworthLowPass.h>

Inheritance diagram for vtkImageButterworthLowPass:

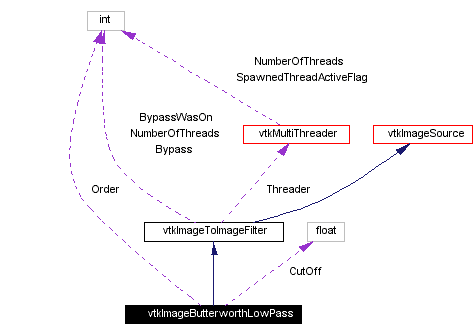

[legend]Collaboration diagram for vtkImageButterworthLowPass:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetCutOff (float, float, float)
virtual void	SetCutOff (float[3])
void	SetCutOff (float v)
void	SetXCutOff (float v)
void	SetYCutOff (float v)
void	SetZCutOff (float v)
virtual float *	GetCutOff ()
virtual void	GetCutOff (float &, float &, float &)
virtual void	GetCutOff (float[3])
float	GetXCutOff ()
float	GetYCutOff ()
float	GetZCutOff ()
virtual void	SetOrder (int)
virtual int	GetOrder ()
Static Public Methods
vtkImageButterworthLowPass *	New ()
int	IsTypeOf (const char *type)
vtkImageButterworthLowPass *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageButterworthLowPass ()
	~vtkImageButterworthLowPass ()
void	ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int outExt[6], int id)
Protected Attributes
int	Order
float	CutOff [3]

---

Detailed Description

Frequency domain Low pass.

Date:

2001/12/07 14:03:48

Revision:

1.19

Thanks:

Thanks to C. Charles Law who developed this class.

This filter only works on an image after it has been converted to frequency domain by a vtkImageFFT filter. A vtkImageRFFT filter can be used to convert the output back into the spatial domain. vtkImageButterworthLowPass the high frequency components are attenuated. Input and output are in floats, with two components (complex numbers). out(i, j) = (1 + pow(CutOff/Freq(i,j), 2*Order));

See also:

vtkImageButterworthHighPass vtkImageFFT vtkImageRFFT

Tests:

vtkImageButterworthLowPass (Tests)

Definition at line 68 of file vtkImageButterworthLowPass.h.

---

Constructor & Destructor Documentation

vtkImageButterworthLowPass::vtkImageButterworthLowPass (    )  [protected]

vtkImageButterworthLowPass::~vtkImageButterworthLowPass (    )  [inline, protected]

Definition at line 99 of file vtkImageButterworthLowPass.h.

---

Member Function Documentation

vtkImageButterworthLowPass* vtkImageButterworthLowPass::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageToImageFilter.

virtual const char* vtkImageButterworthLowPass::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

int vtkImageButterworthLowPass::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

virtual int vtkImageButterworthLowPass::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

vtkImageButterworthLowPass* vtkImageButterworthLowPass::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

void vtkImageButterworthLowPass::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageToImageFilter.

virtual void vtkImageButterworthLowPass::SetCutOff (  float   , float   , float    )  [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageButterworthLowPass::SetCutOff (  float   [3] )  [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

void vtkImageButterworthLowPass::SetCutOff (  float    v )  [inline]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing). Definition at line 80 of file vtkImageButterworthLowPass.h.

void vtkImageButterworthLowPass::SetXCutOff (  float    v )

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

void vtkImageButterworthLowPass::SetYCutOff (  float    v )

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

void vtkImageButterworthLowPass::SetZCutOff (  float    v )

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual float* vtkImageButterworthLowPass::GetCutOff (    )  [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageButterworthLowPass::GetCutOff (  float &   , float &   , float &    )  [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageButterworthLowPass::GetCutOff (  float   [3] )  [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

float vtkImageButterworthLowPass::GetXCutOff (    )  [inline]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing). Definition at line 85 of file vtkImageButterworthLowPass.h.

float vtkImageButterworthLowPass::GetYCutOff (    )  [inline]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing). Definition at line 86 of file vtkImageButterworthLowPass.h.

float vtkImageButterworthLowPass::GetZCutOff (    )  [inline]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing). Definition at line 87 of file vtkImageButterworthLowPass.h.

virtual void vtkImageButterworthLowPass::SetOrder (  int    )  [virtual]

The order determines sharpness of the cutoff curve.

virtual int vtkImageButterworthLowPass::GetOrder (    )  [virtual]

The order determines sharpness of the cutoff curve.

void vtkImageButterworthLowPass::ThreadedExecute (  vtkImageData *    inData, vtkImageData *    outData, int    outExt[6], int    id )  [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkImageToImageFilter.

---

Member Data Documentation

int vtkImageButterworthLowPass::Order [protected]

Definition at line 101 of file vtkImageButterworthLowPass.h.

float vtkImageButterworthLowPass::CutOff[3] [protected]

Definition at line 102 of file vtkImageButterworthLowPass.h.

---

The documentation for this class was generated from the following file:

• Imaging/vtkImageButterworthLowPass.h

---
