vtkImageConvolve Class Reference

Convolution of an image with a kernel. More...

#include <vtkImageConvolve.h>

Inheritance diagram for vtkImageConvolve:

Inheritance graph
[legend]

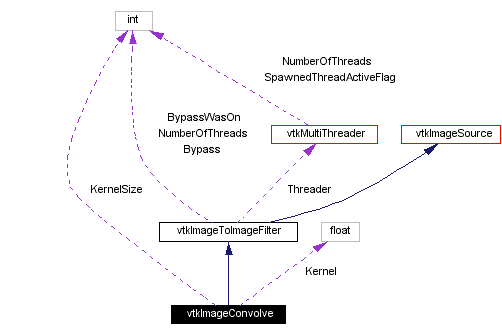

Collaboration diagram for vtkImageConvolve:

Collaboration graph
[legend]
List of all members.

[NOHEADER]

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkImageConvolve * New ()
int IsTypeOf (const char *type)
vtkImageConvolve * SafeDownCast (vtkObject *o)

Public Methods

void SetKernel7x7 (float kernel[49])
float * GetKernel7x7 ()
void GetKernel7x7 (float kernel[49])
void SetKernel3x3x3 (const float kernel[27])
void SetKernel5x5x5 (float kernel[125])
void SetKernel7x7x7 (float kernel[343])
float * GetKernel5x5x5 ()
void GetKernel5x5x5 (float kernel[125])
float * GetKernel7x7x7 ()
void GetKernel7x7x7 (float kernel[343])
virtual int * GetKernelSize ()
virtual void GetKernelSize (int &, int &, int &)
virtual void GetKernelSize (int[3])
void SetKernel3x3 (const float kernel[9])
void SetKernel5x5 (const float kernel[25])
float * GetKernel3x3 ()
void GetKernel3x3 (float kernel[9])
float * GetKernel5x5 ()
void GetKernel5x5 (float kernel[25])
float * GetKernel3x3x3 ()
void GetKernel3x3x3 (float kernel[27])

Protected Methods

 vtkImageConvolve ()
 ~vtkImageConvolve ()
void ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int outExt[6], int id)
void GetKernel (float *kernel)
float * GetKernel ()
void SetKernel (const float *kernel, int sizeX, int sizeY, int sizeZ)

Protected Attributes

int KernelSize [3]
float Kernel [343]

Detailed Description

Convolution of an image with a kernel.

Date:
2001/11/30 12:49:49
Revision:
1.9
Thanks:
Thanks to Z. F. Knops who developed this class.
vtkImageConvolve convolves the image with a 3D NxNxN kernel or a 2D NxN kernal. The output image is cropped to the same size as the input.
Tests:
vtkImageConvolve (Tests)

Definition at line 60 of file vtkImageConvolve.h.


Constructor & Destructor Documentation

vtkImageConvolve::vtkImageConvolve   [protected]


vtkImageConvolve::~vtkImageConvolve   [protected]



Member Function Documentation

vtkImageConvolve* vtkImageConvolve::New   [static]


Construct an instance of vtkImageConvolve filter.

Reimplemented from vtkImageToImageFilter.

virtual const char* vtkImageConvolve::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

int vtkImageConvolve::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

virtual int vtkImageConvolve::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

vtkImageConvolve* vtkImageConvolve::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

void vtkImageConvolve::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageToImageFilter.

virtual int* vtkImageConvolve::GetKernelSize   [virtual]


Get the kernel size

virtual void vtkImageConvolve::GetKernelSize int &   ,
int &   ,
int &
[virtual]


Get the kernel size

virtual void vtkImageConvolve::GetKernelSize int   [3] [virtual]


Get the kernel size

void vtkImageConvolve::SetKernel3x3 const float    kernel[9]


Set the kernel to be a given 3x3 or 5x5 or 7x7 kernel.

void vtkImageConvolve::SetKernel5x5 const float    kernel[25]


Set the kernel to be a given 3x3 or 5x5 or 7x7 kernel.

void vtkImageConvolve::SetKernel7x7 float    kernel[49]


float* vtkImageConvolve::GetKernel3x3


Return an array that contains the kernel.

void vtkImageConvolve::GetKernel3x3 float    kernel[9]


Return an array that contains the kernel.

float* vtkImageConvolve::GetKernel5x5


Return an array that contains the kernel.

void vtkImageConvolve::GetKernel5x5 float    kernel[25]


Return an array that contains the kernel.

float* vtkImageConvolve::GetKernel7x7


void vtkImageConvolve::GetKernel7x7 float    kernel[49]


void vtkImageConvolve::SetKernel3x3x3 const float    kernel[27]


Set the kernel to be a 3x3x3 or 5x5x5 or 7x7x7 kernel.

void vtkImageConvolve::SetKernel5x5x5 float    kernel[125]


void vtkImageConvolve::SetKernel7x7x7 float    kernel[343]


float* vtkImageConvolve::GetKernel3x3x3


Return an array that contains the kernel

void vtkImageConvolve::GetKernel3x3x3 float    kernel[27]


Return an array that contains the kernel

float* vtkImageConvolve::GetKernel5x5x5


void vtkImageConvolve::GetKernel5x5x5 float    kernel[125]


float* vtkImageConvolve::GetKernel7x7x7


void vtkImageConvolve::GetKernel7x7x7 float    kernel[343]


void vtkImageConvolve::ThreadedExecute vtkImageData   inData,
vtkImageData   outData,
int    outExt[6],
int    id
[protected, virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkImageToImageFilter.

void vtkImageConvolve::GetKernel float *    kernel [protected]


float* vtkImageConvolve::GetKernel   [protected]


void vtkImageConvolve::SetKernel const float *    kernel,
int    sizeX,
int    sizeY,
int    sizeZ
[protected]



Member Data Documentation

int vtkImageConvolve::KernelSize[3] [protected]


Definition at line 128 of file vtkImageConvolve.h.

float vtkImageConvolve::Kernel[343] [protected]


Definition at line 129 of file vtkImageConvolve.h.


The documentation for this class was generated from the following file:
Generated on Thu Mar 28 14:30:17 2002 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
