vtkImageDifference Class Reference

Compares images for regression tests. More...

#include <vtkImageDifference.h>

Inheritance diagram for vtkImageDifference:

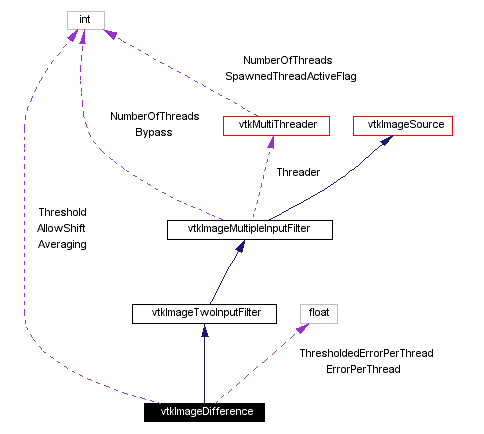

[legend]Collaboration diagram for vtkImageDifference:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetImage (vtkImageData *image)
vtkImageData *	GetImage ()
void	SetInput (vtkImageData *input)
void	SetInput (int num, vtkImageData *input)
float	GetError (void)
void	GetError (float *e)
float	GetThresholdedError (void)
void	GetThresholdedError (float *e)
virtual void	SetThreshold (int)
virtual int	GetThreshold ()
virtual void	SetAllowShift (int)
virtual int	GetAllowShift ()
virtual void	AllowShiftOn ()
virtual void	AllowShiftOff ()
virtual void	SetAveraging (int)
virtual int	GetAveraging ()
virtual void	AveragingOn ()
virtual void	AveragingOff ()
Static Public Methods
vtkImageDifference *	New ()
int	IsTypeOf (const char *type)
vtkImageDifference *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageDifference ()
	~vtkImageDifference ()
void	ExecuteInformation (vtkImageData **inputs, vtkImageData *output)
void	ComputeInputUpdateExtent (int inExt[6], int outExt[6], int whichInput)
void	ExecuteInformation ()
void	ThreadedExecute (vtkImageData **inDatas, vtkImageData *outData, int extent[6], int id)
Protected Attributes
float	ErrorPerThread [VTK_MAX_THREADS]
float	ThresholdedErrorPerThread [VTK_MAX_THREADS]
int	AllowShift
int	Threshold
int	Averaging

---

Detailed Description

Compares images for regression tests.

Date:

2001/11/13 14:32:33

Revision:

1.25

vtkImageDifference takes two rgb unsigned char images and compares them. It allows the images to be slightly different. If AllowShift is on, then each pixel can be shifted by one pixel. Threshold is the allowable error for each pixel.

Tests:

vtkImageDifference (Tests)

Definition at line 60 of file vtkImageDifference.h.

---

Constructor & Destructor Documentation

vtkImageDifference::vtkImageDifference (    )  [protected]

vtkImageDifference::~vtkImageDifference (    )  [inline, protected]

Definition at line 123 of file vtkImageDifference.h.

---

Member Function Documentation

vtkImageDifference* vtkImageDifference::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageTwoInputFilter.

virtual const char* vtkImageDifference::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageTwoInputFilter.

int vtkImageDifference::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageTwoInputFilter.

virtual int vtkImageDifference::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageTwoInputFilter.

vtkImageDifference* vtkImageDifference::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageTwoInputFilter.

void vtkImageDifference::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageMultipleInputFilter.

void vtkImageDifference::SetImage (  vtkImageData *    image )  [inline]

Specify the Image to compare the input to. Definition at line 69 of file vtkImageDifference.h.

vtkImageData* vtkImageDifference::GetImage (    )  [inline]

Specify the Image to compare the input to. Definition at line 70 of file vtkImageDifference.h.

void vtkImageDifference::SetInput (  vtkImageData *    input )  [inline]

Specify the Input for comparison. Definition at line 75 of file vtkImageDifference.h.

void vtkImageDifference::SetInput (  int    num, vtkImageData *    input )  [inline, virtual]

Specify the Input for comparison. Reimplemented from vtkImageMultipleInputFilter. Definition at line 76 of file vtkImageDifference.h.

float vtkImageDifference::GetError (  void    )

Return the total error in comparing the two images.

void vtkImageDifference::GetError (  float *    e )  [inline]

Return the total error in comparing the two images. Definition at line 83 of file vtkImageDifference.h.

float vtkImageDifference::GetThresholdedError (  void    )

Return the total thresholded error in comparing the two images. The thresholded error is the error for a given pixel minus the threshold and clamped at a minimum of zero.

void vtkImageDifference::GetThresholdedError (  float *    e )  [inline]

Return the total thresholded error in comparing the two images. The thresholded error is the error for a given pixel minus the threshold and clamped at a minimum of zero. Definition at line 91 of file vtkImageDifference.h.

virtual void vtkImageDifference::SetThreshold (  int    )  [virtual]

Specify a threshold tolerance for pixel differences.

virtual int vtkImageDifference::GetThreshold (    )  [virtual]

Specify a threshold tolerance for pixel differences.

virtual void vtkImageDifference::SetAllowShift (  int    )  [virtual]

Specify whether the comparison will allow a shift of one pixel between the images. If set, then the minimum difference between input images will be used to determine the difference. Otherwise, the difference is computed directly between pixels of identical row/column values.

virtual int vtkImageDifference::GetAllowShift (    )  [virtual]

Specify whether the comparison will allow a shift of one pixel between the images. If set, then the minimum difference between input images will be used to determine the difference. Otherwise, the difference is computed directly between pixels of identical row/column values.

virtual void vtkImageDifference::AllowShiftOn (    )  [virtual]

Specify whether the comparison will allow a shift of one pixel between the images. If set, then the minimum difference between input images will be used to determine the difference. Otherwise, the difference is computed directly between pixels of identical row/column values.

virtual void vtkImageDifference::AllowShiftOff (    )  [virtual]

Specify whether the comparison will allow a shift of one pixel between the images. If set, then the minimum difference between input images will be used to determine the difference. Otherwise, the difference is computed directly between pixels of identical row/column values.

virtual void vtkImageDifference::SetAveraging (  int    )  [virtual]

Specify whether the comparison will include comparison of averaged 3x3 data between the images. For graphics renderings you normally would leave this on. For imaging operations it should be off.

virtual int vtkImageDifference::GetAveraging (    )  [virtual]

Specify whether the comparison will include comparison of averaged 3x3 data between the images. For graphics renderings you normally would leave this on. For imaging operations it should be off.

virtual void vtkImageDifference::AveragingOn (    )  [virtual]

Specify whether the comparison will include comparison of averaged 3x3 data between the images. For graphics renderings you normally would leave this on. For imaging operations it should be off.

virtual void vtkImageDifference::AveragingOff (    )  [virtual]

Specify whether the comparison will include comparison of averaged 3x3 data between the images. For graphics renderings you normally would leave this on. For imaging operations it should be off.

void vtkImageDifference::ExecuteInformation (  vtkImageData **    inputs, vtkImageData *    output )  [protected, virtual]

Reimplemented from vtkImageMultipleInputFilter.

void vtkImageDifference::ComputeInputUpdateExtent (  int    inExt[6], int    outExt[6], int    whichInput )  [protected, virtual]

Reimplemented from vtkImageMultipleInputFilter.

void vtkImageDifference::ExecuteInformation (    )  [inline, protected, virtual]

Reimplemented from vtkImageMultipleInputFilter. Definition at line 134 of file vtkImageDifference.h.

void vtkImageDifference::ThreadedExecute (  vtkImageData **    inDatas, vtkImageData *    outData, int    extent[6], int    id )  [protected, virtual]

The execute method created by the subclass. This is kept public instead of protected since it is called from a non-member thread function. Reimplemented from vtkImageMultipleInputFilter.

---

Member Data Documentation

float vtkImageDifference::ErrorPerThread[VTK_MAX_THREADS] [protected]

Definition at line 125 of file vtkImageDifference.h.

float vtkImageDifference::ThresholdedErrorPerThread[VTK_MAX_THREADS] [protected]

Definition at line 126 of file vtkImageDifference.h.

int vtkImageDifference::AllowShift [protected]

Definition at line 127 of file vtkImageDifference.h.

int vtkImageDifference::Threshold [protected]

Definition at line 128 of file vtkImageDifference.h.

int vtkImageDifference::Averaging [protected]

Definition at line 129 of file vtkImageDifference.h.

---

The documentation for this class was generated from the following file:

• Imaging/vtkImageDifference.h

---
