vtkImageTwoInputFilter Class Reference

Generic superclass for filters that have. More...

#include <vtkImageTwoInputFilter.h>

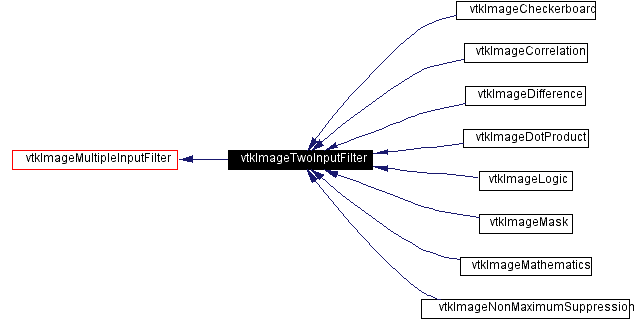

Inheritance diagram for vtkImageTwoInputFilter:

[legend]Collaboration diagram for vtkImageTwoInputFilter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	SetInput1 (vtkImageData *input)
virtual void	SetInput2 (vtkImageData *input)
vtkImageData *	GetInput1 ()
vtkImageData *	GetInput2 ()
Static Public Methods
vtkImageTwoInputFilter *	New ()
int	IsTypeOf (const char *type)
vtkImageTwoInputFilter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageTwoInputFilter ()
	~vtkImageTwoInputFilter ()

---

Detailed Description

Generic superclass for filters that have.

Date:

2001/10/11 13:36:35

Revision:

1.25

Thanks:

Thanks to C. Charles Law who developed this class. two inputs.

vtkImageTwoInputFilter handles two inputs. It is just a subclass of vtkImageMultipleInputFilter with some methods that are specific to two inputs. Although the inputs are labeled input1 and input2, they are stored in an array indexed starting at 0.

Definition at line 59 of file vtkImageTwoInputFilter.h.

---

Constructor & Destructor Documentation

vtkImageTwoInputFilter::vtkImageTwoInputFilter (    )  [protected]

vtkImageTwoInputFilter::~vtkImageTwoInputFilter (    )  [inline, protected]

Definition at line 81 of file vtkImageTwoInputFilter.h.

---

Member Function Documentation

vtkImageTwoInputFilter* vtkImageTwoInputFilter::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageMultipleInputFilter. Reimplemented in vtkImageCheckerboard, vtkImageCorrelation, vtkImageDifference, vtkImageDotProduct, vtkImageLogic, vtkImageMask, vtkImageMathematics, and vtkImageNonMaximumSuppression.

virtual const char* vtkImageTwoInputFilter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageMultipleInputFilter. Reimplemented in vtkImageCheckerboard, vtkImageCorrelation, vtkImageDifference, vtkImageDotProduct, vtkImageLogic, vtkImageMask, vtkImageMathematics, and vtkImageNonMaximumSuppression.

int vtkImageTwoInputFilter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageMultipleInputFilter. Reimplemented in vtkImageCheckerboard, vtkImageCorrelation, vtkImageDifference, vtkImageDotProduct, vtkImageLogic, vtkImageMask, vtkImageMathematics, and vtkImageNonMaximumSuppression.

virtual int vtkImageTwoInputFilter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageMultipleInputFilter. Reimplemented in vtkImageCheckerboard, vtkImageCorrelation, vtkImageDifference, vtkImageDotProduct, vtkImageLogic, vtkImageMask, vtkImageMathematics, and vtkImageNonMaximumSuppression.

vtkImageTwoInputFilter* vtkImageTwoInputFilter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageMultipleInputFilter. Reimplemented in vtkImageCheckerboard, vtkImageCorrelation, vtkImageDifference, vtkImageDotProduct, vtkImageLogic, vtkImageMask, vtkImageMathematics, and vtkImageNonMaximumSuppression.

virtual void vtkImageTwoInputFilter::SetInput1 (  vtkImageData *    input )  [virtual]

Set the Input1 of this filter. If a ScalarType has not been set, then the ScalarType of the input is used. Referenced by vtkImageMask::SetImageInput(), vtkImageDifference::SetInput(), and vtkImageNonMaximumSuppression::SetMagnitudeInput().

virtual void vtkImageTwoInputFilter::SetInput2 (  vtkImageData *    input )  [virtual]

Set the Input2 of this filter. If a ScalarType has not been set, then the ScalarType of the input is used. Referenced by vtkImageDifference::SetImage(), vtkImageMask::SetMaskInput(), and vtkImageNonMaximumSuppression::SetVectorInput().

vtkImageData* vtkImageTwoInputFilter::GetInput1 (    )  [inline]

Get the inputs to this filter. Definition at line 75 of file vtkImageTwoInputFilter.h.

vtkImageData* vtkImageTwoInputFilter::GetInput2 (    )  [inline]

Get the inputs to this filter. Definition at line 76 of file vtkImageTwoInputFilter.h. Referenced by vtkImageDifference::GetImage().

---

The documentation for this class was generated from the following file:

• Filtering/vtkImageTwoInputFilter.h

---
